TSL TM1 Mk3+ - TMRP Connections

34
Menu item
Description
Possible values
Description
Running (Deactivating)
Unit is working and deactivating from being the
Active redundant unit
REMOTELY SHUTDOWN
Unit has been remotely shutdown by its redundant
partner
5.
Redundancy
Status of the redundancy
system
Enabled
Units are set up as a redundant system and is
enabled
Not Setup
Not running a configuration with redundancy
system defined
Error
Configuration error/no comms
Unavailable
Redundancy setup but cannot communicate to
paired device
No Primary
There is no Primary available within paired units
(via Direct Link Cable)
No Backup
There is no Backup available within paired units
(via Direct Link Cable)
6.
Failover (Option)
The failover mode of the
redundant system
Auto (Armed)
System is in Auto and ‘Armed’ ready to failover in
the occurrence of a failover event
Auto (Triggered)
System is in Auto but has already failover over
Auto (Unavailable)
System is in Auto however there is a problem with
one of the units in the redundant pair
Manual
The system is in Manual and can be manually
failed over, the system will not automatically
failover in this mode
Unavailable
There is an issue with the system and failover is
unavailable
7.
TMRP Connections
(Option)
TMRP connections and
status as specified by the
configuration
Online
The TMRP is connected and communicating
correctly
Offline
The TMRP is not connected to the system
8.
Activate Unit
(Option)
Option to Activate current unit
TMRP Connections

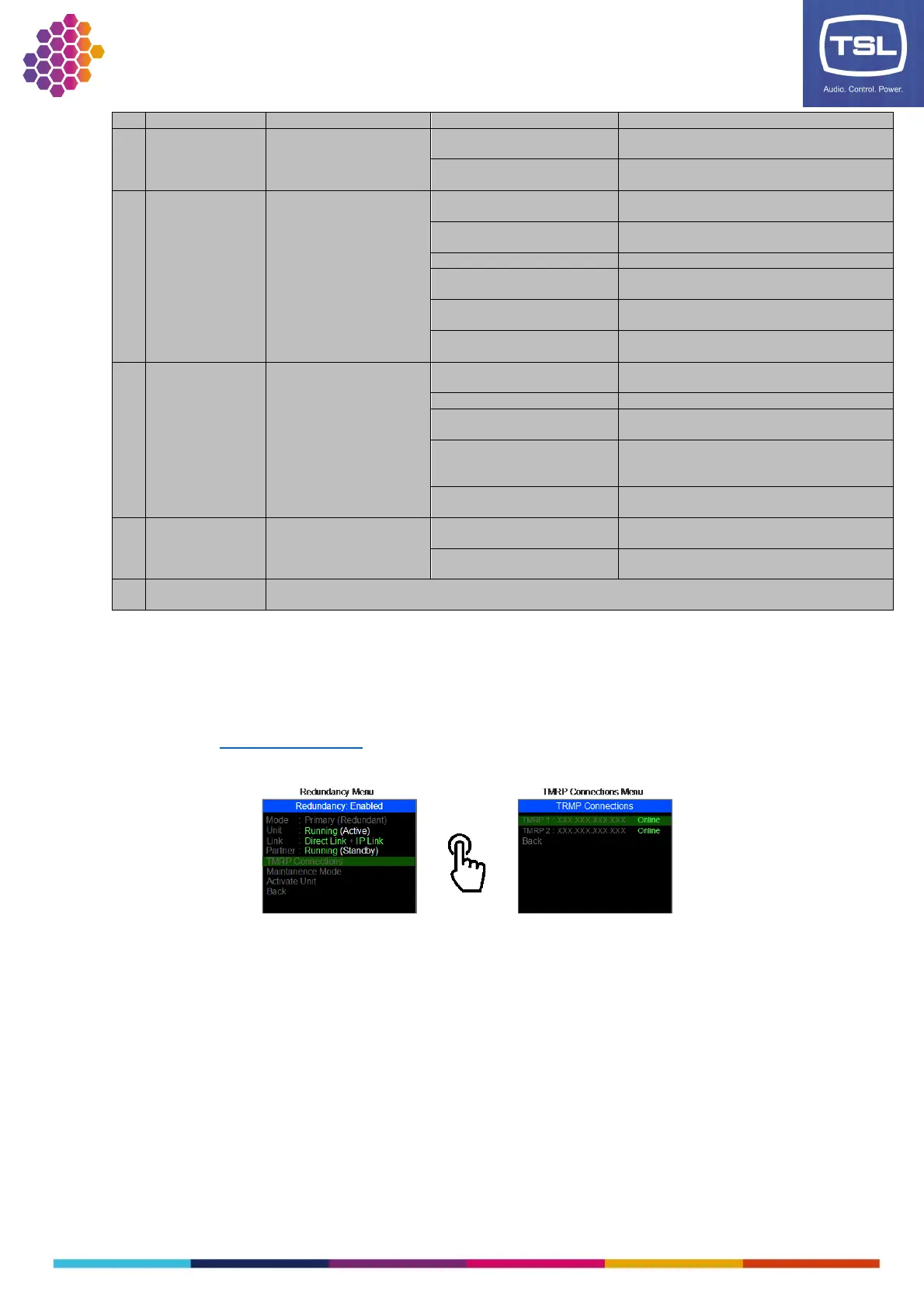

To view the TMRPs that have been configured and their status, enter the TMRP Connections menu. The
display will show the IP address and status of any TMRPs that have been configured in the redundancy
system (see the Hardware installation section). Note a maximum of three TMRP units can be connected
to the redundancy system.
