TuffStuff AXT-2.5 - Step 6: Leg Extension Arm Assembly; Step 6 Assembly List

38
153
91
124
98 88
153 119 124
88 120
59
108
21
10
161
4
27

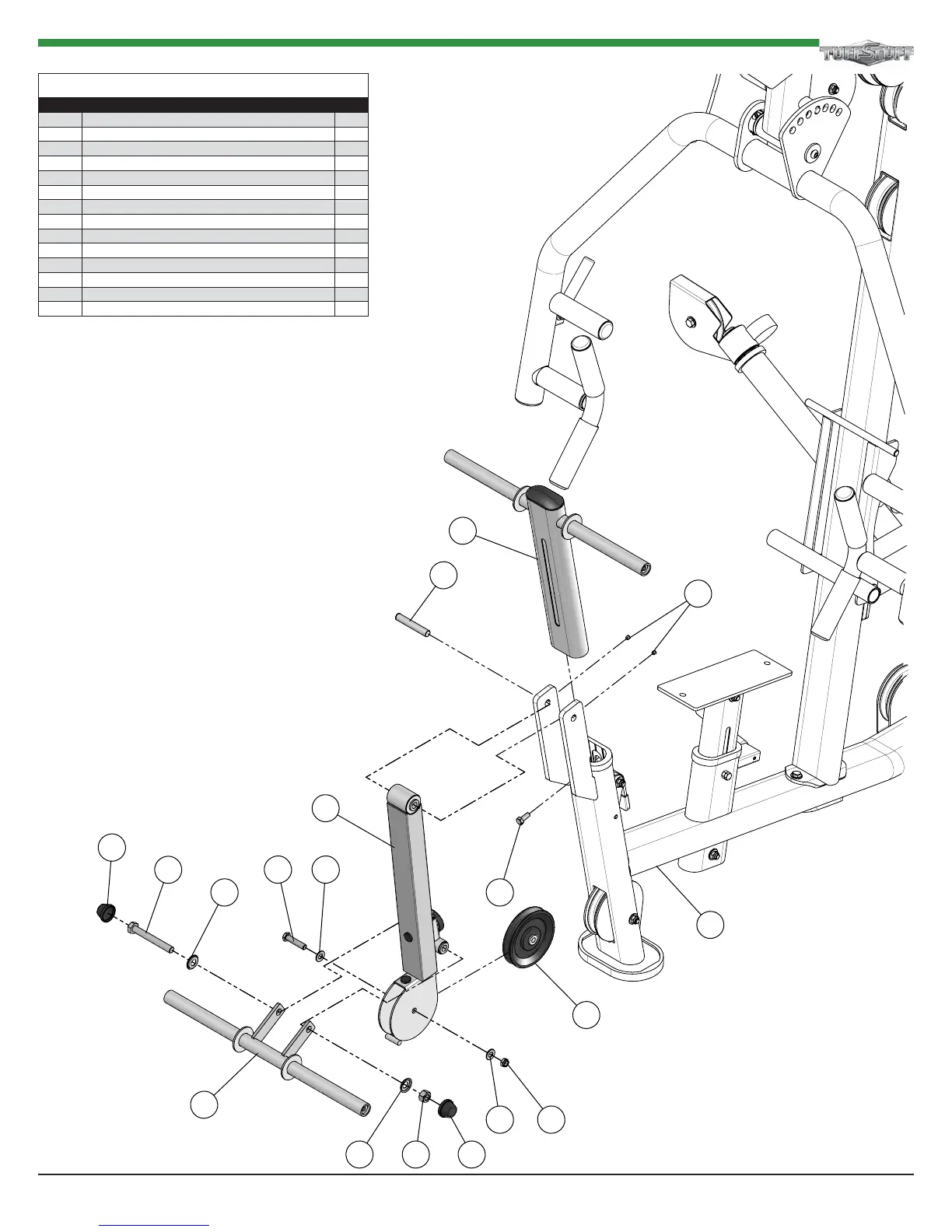

Step 6
Step 6 Assembly List
Item # Description Qty.
4 ADJUSTABLE LEG HOLDER 1
21 LEG EXTENSION ARM 1
27 PIVOT AXLE 1/2 X 3 1
38 SWIVEL FOOT ROLL HOLDER 1
59 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 1
88 FLAT WASHER SAE 3/8” 2
91 HEX HEAD CAP SCREW 1/2-13 X 3 3/4 1
98 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 1
108 HEX HEAD CAP SCREW 5/16-18 X 3/4 1
119 NYLON INSERT JAM LOCK NUT 1/2-13 1
120 NYLON INSERT JAM LOCK NUT 3/8-16 1
124 PLASTIC END CAP BUMPER (1/2 BOLT) 2
153 STEEL BUMPER WASHER Z/P 1/2” 2
161 SOC SET SCREW 1/4-20 X 3/8 2
