6168
66
60
2X
65
2X
2
69
59
64
2X
63
67
62
1
36

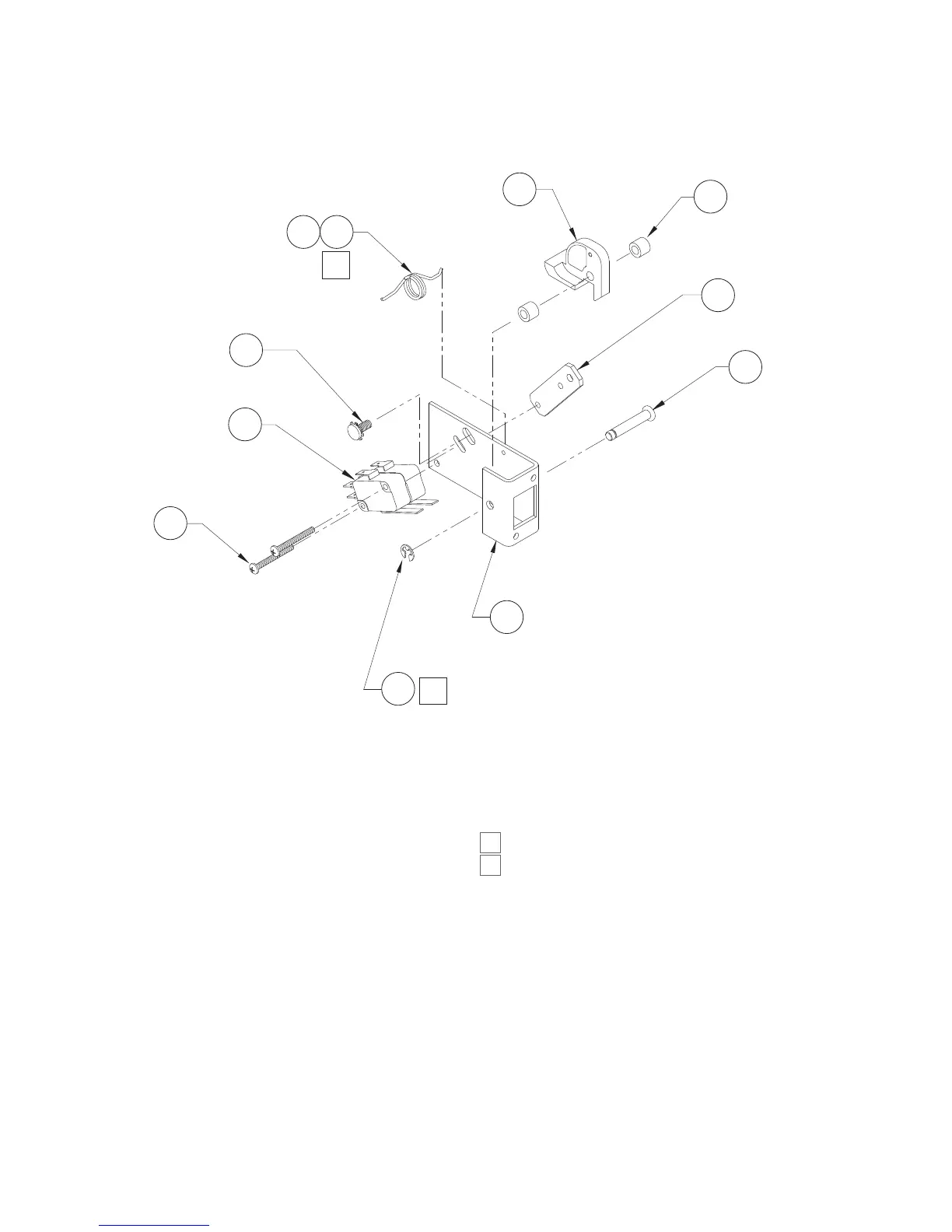

: Door Switch Assembly and Parts
DOOR SWITCH ASSEMBLY AND PARTS
F
igur
e 27
59. NGC-1072 Bracket Latch
60.102012 Switch, Micro, 0.1A/125VAC
61.
NGC-1087
S
pring Door Latch
62. NGC-1073 Toggle, Latch
63. 101119 Pin, Clevis, ø3/16 x 1” Lg
64. 100059 Bearings, Bronze,
3/16ID x 5/16OD x 1/4” Lg
65. 101557 Screw, #4-40 x 1.25” Lg,
PP
HD, CRES
66. 102921 Screw, #8-32 x 3/8”, Internal
T
ooth S
ems, PP
HD, SS
67. NGC-1126
Plate, Door Switch
68. 100639 Grease, USDA H-1, Food Grade
79. 101296 Ring, Eclip
Assembly Notes
1.
Ring, Eclip (Item 69) is supplied with Item 63.
2. Spring and Bracket must be lubricated with
high-temperature pure FM Grease (Item 68).
3. Assembly to be hand-tightened prior to any final
adjustment.
ADJUSTING THE MONITOR SAFETY SWITCH
The Monitor Safety Switch is located on the right
hand hinge assembly. To adjust the Switch, follow
the steps belo
w
.
: The oven should be cool for this adjustment.
1. Ensure the Cook Door is adjusted. Refer to
Adjusting the Cook Door on page 34.
THE COOK DOOR
