Pressure Sensors Series PS…
Mounting (continued)
■
In the depressurized state, the housing of the PS…-5… series can be
rotated by 360°.
■
It is required to observe the pressure connection instructions and only use
a matching counterpiece.

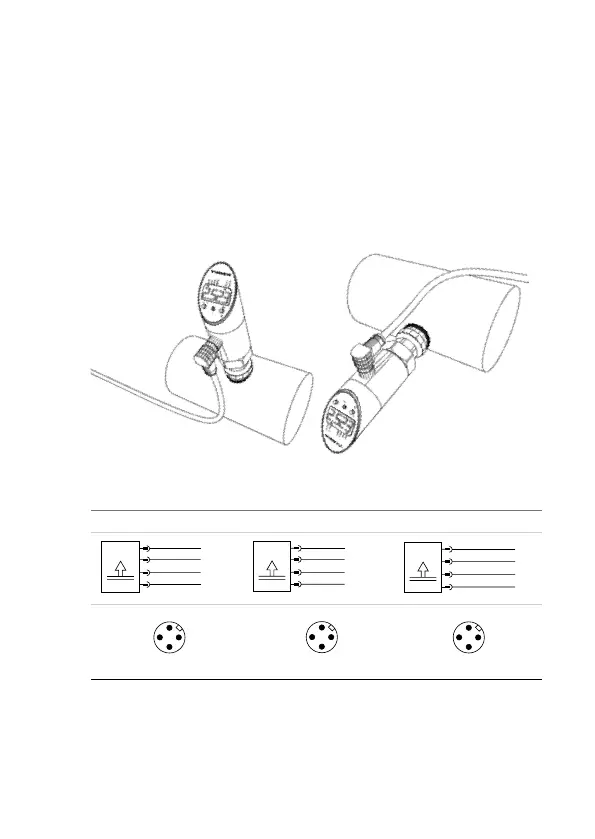

5.1 Mounting recommendations
6 Electrical connection
PS…-2UPN… PS…-LUUPN… PS…-LI2UPN…
 
  
 
 
PS
2 WHV
A
4 BK out 1/IO-Link
1 BN +
3 BU 
PS
2 WH out 2 / I
A
4 BK out 1/IO-Link
1 BN +
3 BU 












 




