Pressure Sensors Series PS…
Pressure Sensors Series PS
10 Description of analog outputs
Current output
The analog signal is freely adjustable within the measuring range. Min. and
max. value are stored and can be read in the programming mode. The output
signal is scaled at a ratio of 1:4.
Within the defined measuring range, between ASP (analog start point) and AEP
(analog end point), the output signal is issued between 4 and 20 mA or alter-
natively between 0 and 20 mA. The analog signal is freely adjustable between
start and end point (minimum distance 10 % of f. s. ).
Voltage output
Within the defined measuring range between ASP (analog switchpoint) and
AEP (analog end point), the output signal is issued between 0…10 V or alterna-
tively between 0 …5 V or 1…6 V.

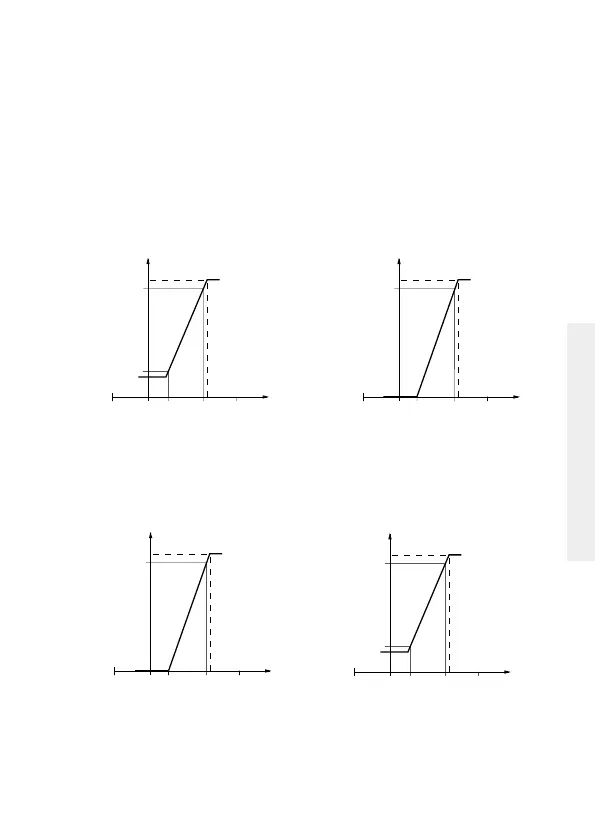

0…20 mA
0…5 V
0…10 V
1…6 V
4…20 mA
