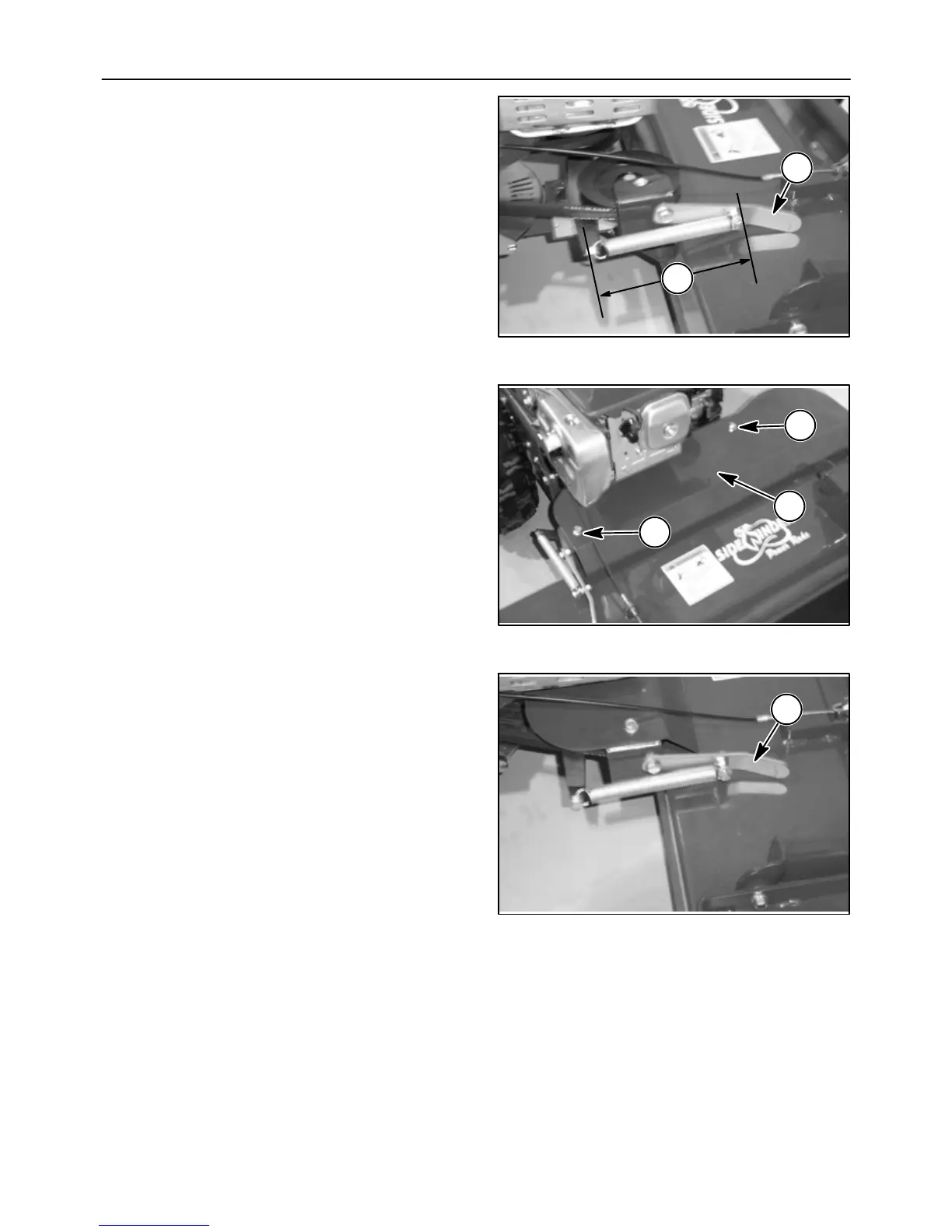

14. Place the tension handle, A, forward to the
tension position as shown. The spring length at
B,shouldbe7-1/2inchesmeasuredfromtheend
of the hook to the end of the other hook.
15. Repeat steps 12,13 and 14 untilthe 7-1/2 inches
spring dimension is achieved.
A
B
99
16. Install main belt shield, A, and tighten bolts, B.
A
B
B
100
17. Place the tension lever, A, forward in the belt
tension position.
A
101
