56

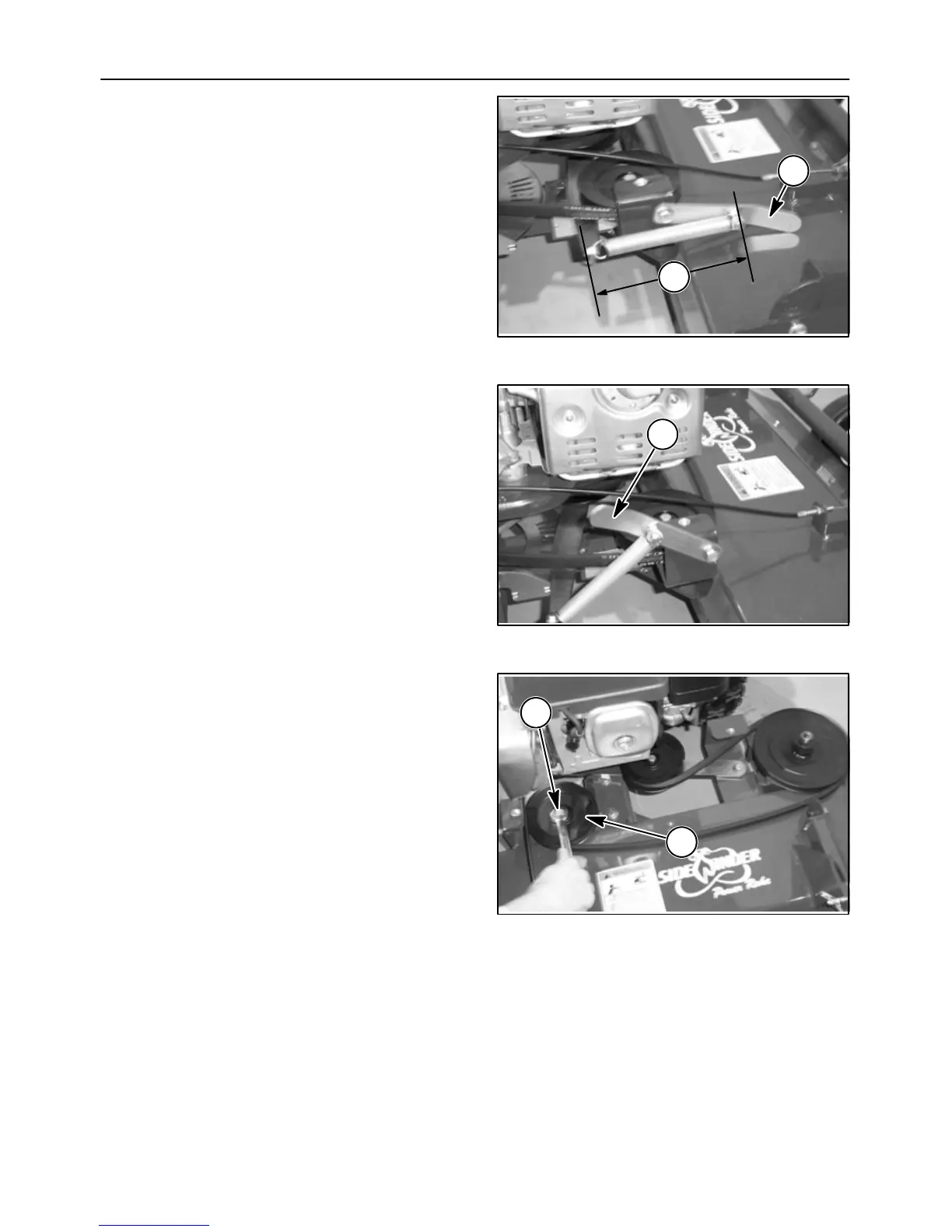

11. Place the tension handle, A, forward to the
tension position as shown and measure the
spring length at B. The length at B, should be
7-1/2 inches measured from the end of the hook
to the end of the other hook.
ATTENTION:
If tension is correct proceed to step 16
If tension is incorrect proceed to step 12
A
B
96
12. Move the tension lever, A, rearward to the
disengaged position as shown.
A
97
13. Loosen the attaching bolt, A, for idler pulley, B.
NOTE: Move the pulley outward to increase spring
tension if the spring measurement was under 7-1/2
inches.
NOTE: Move the pulley inward to reduce spring
tension if the spring measured over 7-1/2 inches.
Tighten the idler attaching bolt, A.
A
B
98
