Manual 2007 Rev B p/n 2007
15
05
Installation
Assure oil is compatible with copper/yellow
metals (if equipped with cooling coils).
See Table 4-1 and Table 4-2 for oil capacities.
Filling Procedure
See Figure 5-3 and Figure 5-4.
See Recommended Lubricants on page 41 for
suggested lubricants.
1. Remove the fi ll plugs or breathers from both
gear end and drive end plates.
2. Slowly pour oil through the fi ll until oil appears
in the oil sight glass. Bring the oil level to the
center of the sight glass.
3. Verify oil level is at proper level in both gear
end and drive end sight glasses.
4. Replace the fi ll plugs or breathers that were
removed in step 1.

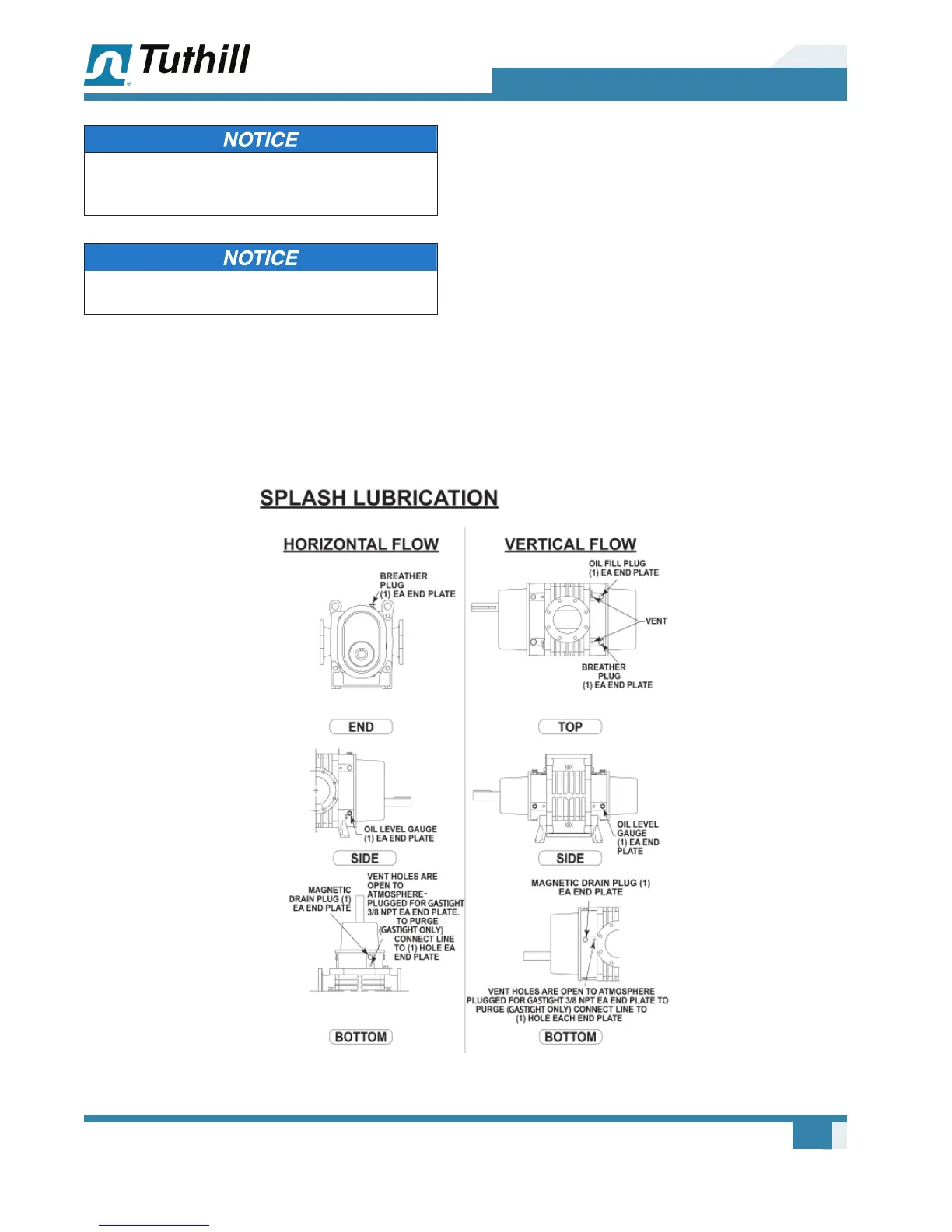

Figure 5-3 – Locations of Oil Fill, Drain, and Level Gauge on Blowers with Splash Lubrication
