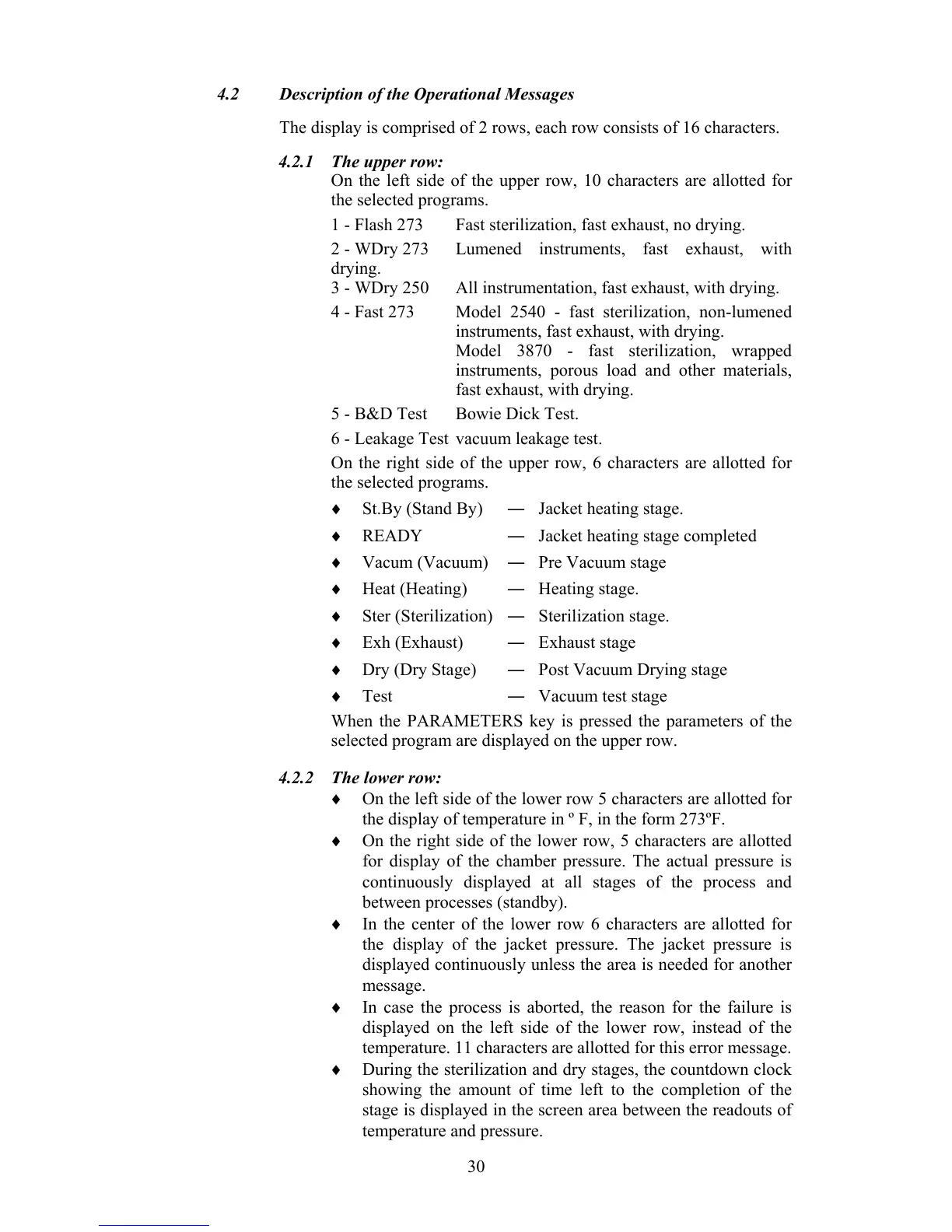

4.2 Description of the Operational Messages
The display is comprised of 2 rows, each row consists of 16 characters.
4.2.1 The upper row:
On the left side of the upper row, 10 characters are allotted for
the selected programs.
1 - Flash 273 Fast sterilization, fast exhaust, no drying.
2 - WDry 273 Lumened instruments, fast exhaust, with
drying.
3 - WDry 250 All instrumentation, fast exhaust, with drying.
4 - Fast 273 Model 2540 - fast sterilization, non-lumened
instruments, fast exhaust, with drying.
Model 3870 - fast sterilization, wrapped
instruments, porous load and other materials,
fast exhaust, with drying.
5 - B&D Test Bowie Dick Test.
6 - Leakage Test vacuum leakage test.
On the right side of the upper row, 6 characters are allotted for
the selected programs.
♦ St.By (Stand By) ― Jacket heating stage.
♦ READY ― Jacket heating stage completed
♦ Vacum (Vacuum) ― Pre Vacuum stage
♦ Heat (Heating) ― Heating stage.
♦ Ster (Sterilization) ― Sterilization stage.
♦ Exh (Exhaust) ― Exhaust stage
♦ Dry (Dry Stage) ― Post Vacuum Drying stage
♦ Test ― Vacuum test stage
When the PARAMETERS key is pressed the parameters of the
selected program are displayed on the upper row.
4.2.2 The lower row:
♦ On the left side of the lower row 5 characters are allotted for
the display of temperature in º F, in the form 273ºF.
♦ On the right side of the lower row, 5 characters are allotted
for display of the chamber pressure. The actual pressure is
continuously displayed at all stages of the process and
between processes (standby).
♦ In the center of the lower row 6 characters are allotted for
the display of the jacket pressure. The jacket pressure is
displayed continuously unless the area is needed for another
message.
♦ In case the process is aborted, the reason for the failure is
displayed on the left side of the lower row, instead of the
temperature. 11 characters are allotted for this error message.
♦ During the sterilization and dry stages, the countdown clock
showing the amount of time left to the completion of the
stage is displayed in the screen area between the readouts of
temperature and pressure.
