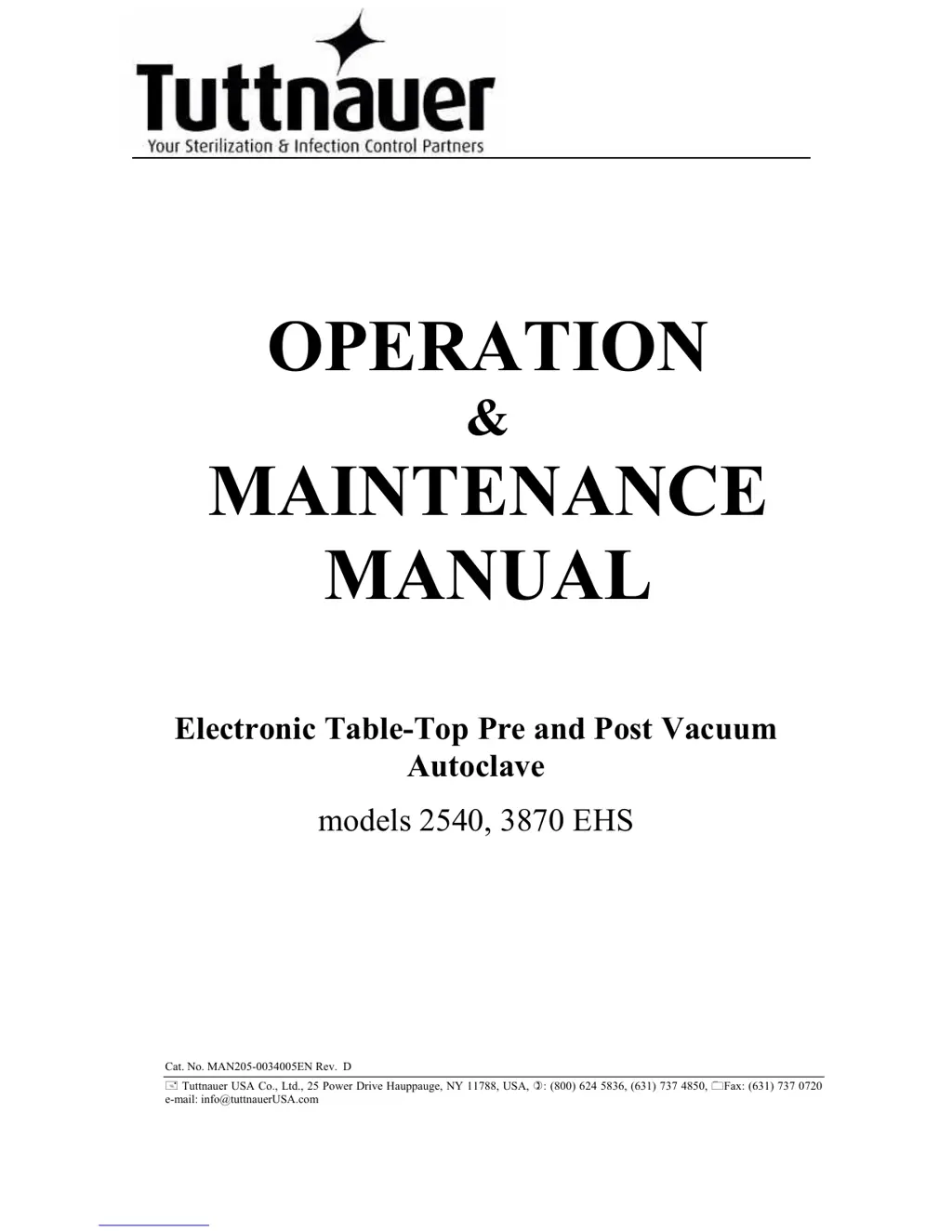

Tuttnauer 3870 EHS - User Manual

Other manuals for Tuttnauer 3870 EHS

Technician Manual130 pages

Questions and Answers

K
Kelly HoltAug 12, 2025
What to do if my Tuttnauer 3870 EHS displays ‘Low Vacuum’?
- S
  Steven BenderAug 12, 2025
  If the display on your Tuttnauer Laboratory Equipment shows ‘Low Vacuum’, consider the following steps: 1. Inspect the door for any signs of leakage; if necessary, replace the door gasket. 2. Ensure that the vacuum pump is running and check its fuse, replacing it if needed. 3. Verify that the tube connected to the 'Exh. from pump' connection is free from blockages. 4. Confirm that the vacuum pump water reservoir has enough water.
B
brownshawnAug 16, 2025
Why does my Tuttnauer 3870 EHS Laboratory Equipment display ‘Low Heat’?
- A
  Anthony ChapmanAug 16, 2025
  If your Tuttnauer Laboratory Equipment displays ‘Low Heat’, try these solutions: 1. Ensure the machine has the correct amount of sterilization load. 2. Check for steam leaks around the door. 3. Verify that the reservoir contains enough mineral-free water. 4. Inspect the 1.25A fuse and replace it if it's burnt out. 5. Examine the electrical supply fuses and replace or reset any that have tripped.
R
robinsonmarkAug 20, 2025
What to do if my Tuttnauer 3870 EHS displays ‘Low Water’?
- A
  Anthony RuizAug 20, 2025
  If your Tuttnauer Laboratory Equipment is showing a ‘Low Water’ message, here’s what you should do: * First, check the mineral-free water reservoir to see if it contains water. * If the reservoir is empty, there may be a problem with the mineral-free water supply that needs fixing. * If the reservoir has water, the water pump fuse might be burnt out, so try replacing it.
K
Kim HowardAug 25, 2025
How to troubleshoot a Tuttnauer 3870 EHS Laboratory Equipment that is not responding?
- R
  Robin WongAug 25, 2025
  If your Tuttnauer Laboratory Equipment isn't responding, here are a few things to check: 1. Ensure the equipment is properly connected to a power source and that the power cord is correctly plugged into both the machine and the outlet. 2. Confirm that the main switch is in the 'On' position. 3. Check the circuit breaker and reset it if it has tripped. 4. See if the cut-off thermostat has been activated; if so, press the reset button.
J
Jeanette YoungAug 27, 2025
How to fix a Tuttnauer 3870 EHS that is leaking at the door?
- C
  Cindy SmithAug 27, 2025
  If your Tuttnauer Laboratory Equipment is leaking at the door, try the following: * Ensure the door is tightened sufficiently. * If the leak persists, replace the door gasket.
C
christinawilliamsAug 31, 2025
Why is the printer not printing on my Tuttnauer Laboratory Equipment?
- Y
  Yesenia LeonardAug 31, 2025
  If the printer on your Tuttnauer Laboratory Equipment isn't printing, consider these steps: 1. Make sure paper is properly inserted into the printer. 2. Turn the machine off, then back on while pressing the feed button on the printer. If a test printout appears, the printer itself is working, and the issue lies with the electronics. If no test printout appears, there's a problem with the printer.
A
Andrew ParksSep 4, 2025
Why does my Tuttnauer 3870 EHS printer print blank pages?
- D
  Daniel ButlerSep 4, 2025
  If the printer on your Tuttnauer Laboratory Equipment is printing, but nothing appears on the paper, make sure the paper is mounted correctly.
S
Sabrina SchneiderSep 7, 2025
Why does the printer continuously feed paper on my Tuttnauer Laboratory Equipment?
- S
  Samantha WongSep 7, 2025
  If the printer paper feeds continuously when you switch on your Tuttnauer Laboratory Equipment, check that the ‘feed button’ on the printer isn't stuck.

Summary

GENERAL

Incoming Inspection

Inspecting the autoclave for damage upon arrival and retaining packing materials.

GENERAL INFORMATION

Operating Conditions and Utilities

Specifies environmental requirements, utilities needed, and site installation criteria.

Technical Specifications

STERILIZATION PROGRAMS

Program Details and Parameters

Details of 6 sterilization and test programs, including nominal parameters and operation sequences.

ERROR MESSAGES AND SAFETY

Displayed Error Messages

Details on messages displayed for cycle failures like Low Heat, Low Temp, Low Pres.

PREPARATION BEFORE STERILIZATION

Instrument Cleaning and Packaging

Guidelines for cleaning instruments, using packaging materials, and preparing loads.

Load Preparation and Loading

Instructions on loading trays, preventing overloading, and proper placement of instruments.

Pack and Cassette Loading

Guidance on packing, loading hollowware, textiles, and using instrument cassettes.

DENTAL HANDPIECE STERILIZATION

Handpiece Sterilization Procedures

OPERATION

Operating Instructions

Step-by-step guide for starting, running, and completing a sterilization cycle.

Lifting, Carrying, and Safety

MAINTENANCE INSTRUCTIONS

Preventive Maintenance Schedule

Daily, weekly, and periodic maintenance tasks to keep the device in good working condition.

Draining the Reservoir

Checking the Safety Valve

TROUBLESHOOTING

Operator Troubleshooting Guide

Guide to solving common malfunctions like machine not responding or 'Low Vacuum' error.

Tuttnauer 3870 EHS Specifications

General

Category	Laboratory Equipment
Model	3870EHS
Door Type	Automatic sliding door
Material	Stainless steel
Weight	80 kg
Power Supply	230V
Power Consumption	3 kW
Sterilization Temperature Range	105°C - 137°C
Cycle Time	27-60 min
Safety Features	pressure release valve
