Tuttnauer 3870 EHS - Technical Specifications

13

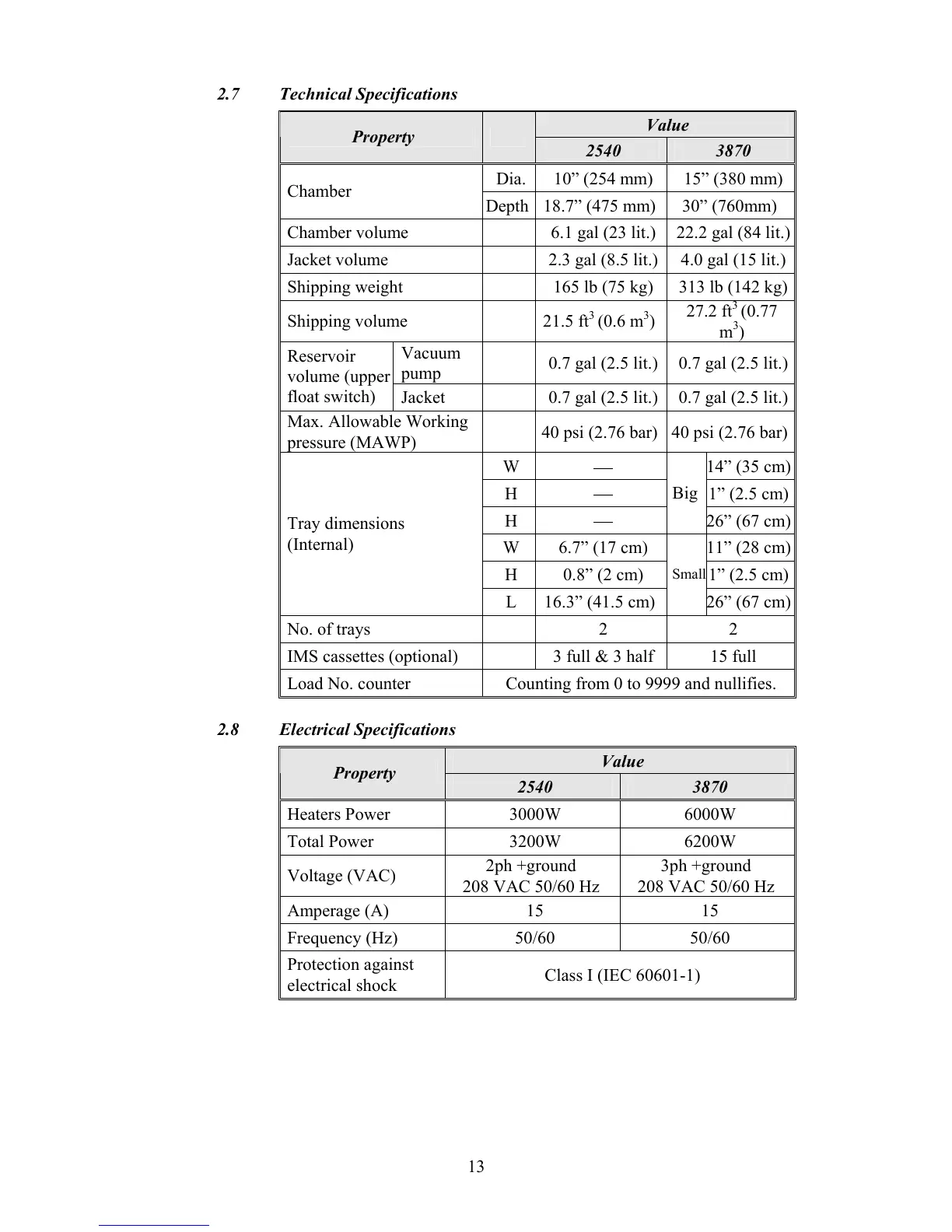

2.7 Technical Specifications
Value
Property
2540 3870
Dia. 10” (254 mm) 15” (380 mm)
Chamber
Depth 18.7” (475 mm) 30” (760mm)
Chamber volume 6.1 gal (23 lit.) 22.2 gal (84 lit.)
Jacket volume 2.3 gal (8.5 lit.) 4.0 gal (15 lit.)
Shipping weight 165 lb (75 kg) 313 lb (142 kg)
Shipping volume 21.5 ft
3
(0.6 m
3
)
27.2 ft
3
(0.77
m
3
)
Vacuum
pump
0.7 gal (2.5 lit.) 0.7 gal (2.5 lit.)
Reservoir
volume (upper
float switch)
Jacket 0.7 gal (2.5 lit.) 0.7 gal (2.5 lit.)
Max. Allowable Working
pressure (MAWP)
40 psi (2.76 bar) 40 psi (2.76 bar)
W

14” (35 cm)
H

1” (2.5 cm)
H

Big
2
6” (67 cm)
W 6.7” (17 cm) 11” (28 cm)
H 0.8” (2 cm) 1” (2.5 cm)
Tray dimensions
(Internal)
L 16.3” (41.5 cm)
Small
2
6” (67 cm)
No. of trays 2 2
IMS cassettes (optional) 3 full & 3 half 15 full
Load No. counter Counting from 0 to 9999 and nullifies.
2.8 Electrical Specifications
Value
Property
2540 3870
Heaters Power 3000W 6000W
Total Power 3200W 6200W
Voltage (VAC)
2ph +ground
208 VAC 50/60 Hz
3ph +ground
208 VAC 50/60 Hz
Amperage (A) 15 15
Frequency (Hz) 50/60 50/60
Protection against
electrical shock
Class I (IEC 60601-1)
