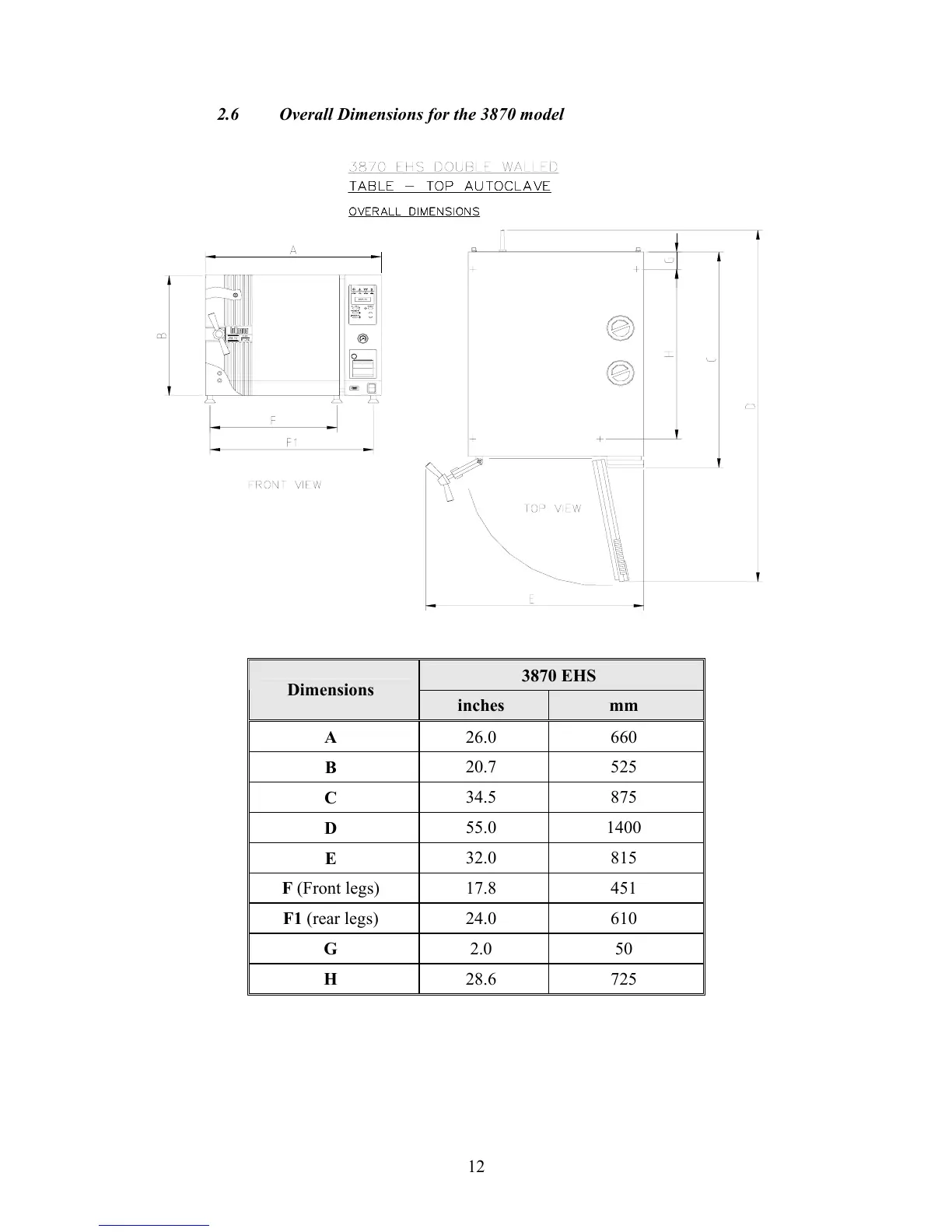

2.6 Overall Dimensions for the 3870 model
3870 EHS
Dimensions
inches mm
A
26.0 660
B
20.7 525
C
34.5 875
D
55.0 1400
E
32.0 815
F (Front legs)
17.8 451
F1 (rear legs)
24.0 610
G
2.0 50
H
28.6 725
