48

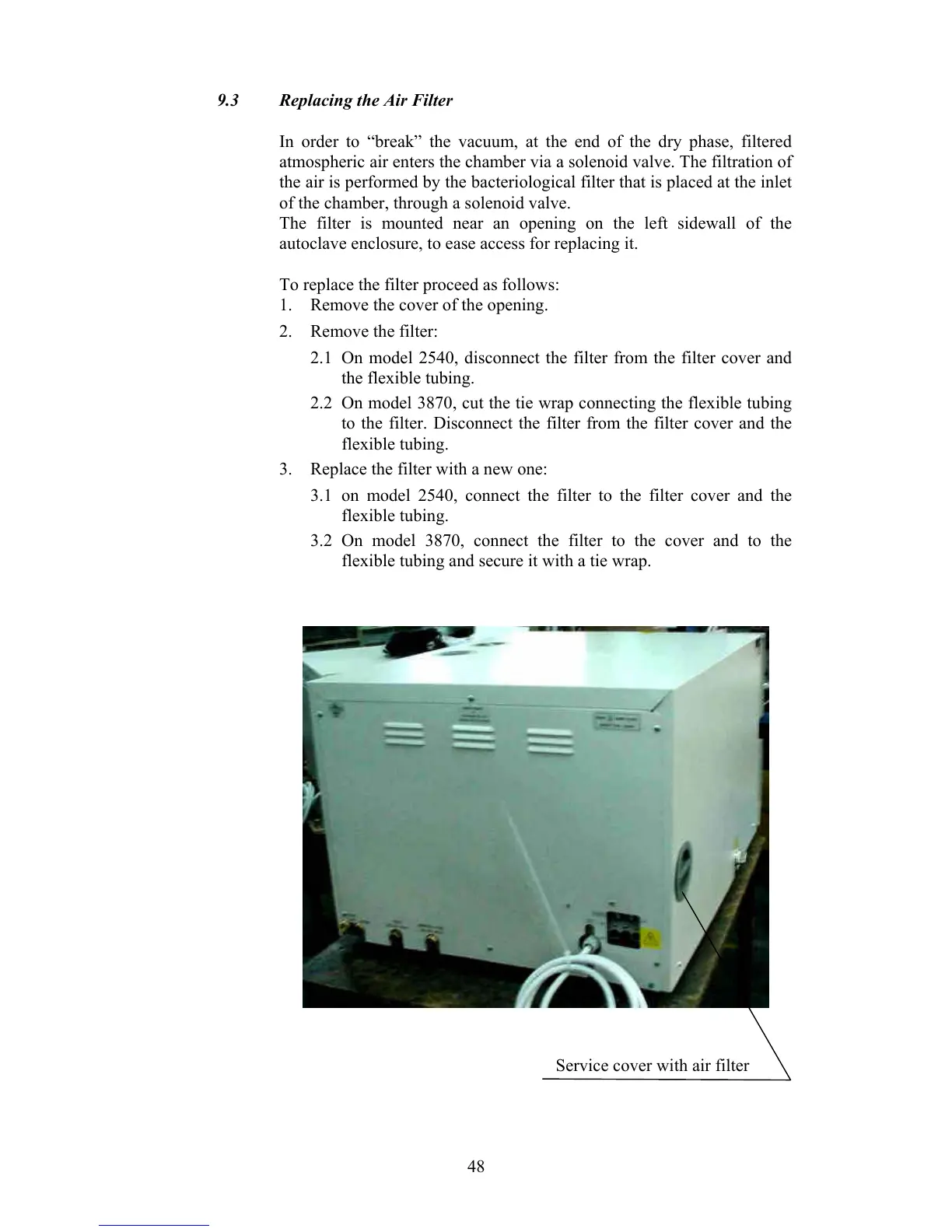

9.3 Replacing the Air Filter
In order to “break” the vacuum, at the end of the dry phase, filtered
atmospheric air enters the chamber via a solenoid valve. The filtration of
the air is performed by the bacteriological filter that is placed at the inlet
of the chamber, through a solenoid valve.
The filter is mounted near an opening on the left sidewall of the
autoclave enclosure, to ease access for replacing it.
To replace the filter proceed as follows:
1. Remove the cover of the opening.
2. Remove the filter:
2.1 On model 2540, disconnect the filter from the filter cover and
the flexible tubing.
2.2 On model 3870, cut the tie wrap connecting the flexible tubing
to the filter. Disconnect the filter from the filter cover and the
flexible tubing.
3. Replace the filter with a new one:
3.1 on model 2540, connect the filter to the filter cover and the
flexible tubing.
3.2 On model 3870, connect the filter to the cover and to the
flexible tubing and secure it with a tie wrap.
Service cover with air filter
