31
♦ The format of the display is, MM:SS (two digits for minutes
and two digits for seconds).
♦ On completion of the process, the END message is displayed
in the screen area between the readouts of temperature and
pressure.
When a cycle is started by means of pressing the START key, the
load number is displayed for 2 seconds on the left side of the
lower row.

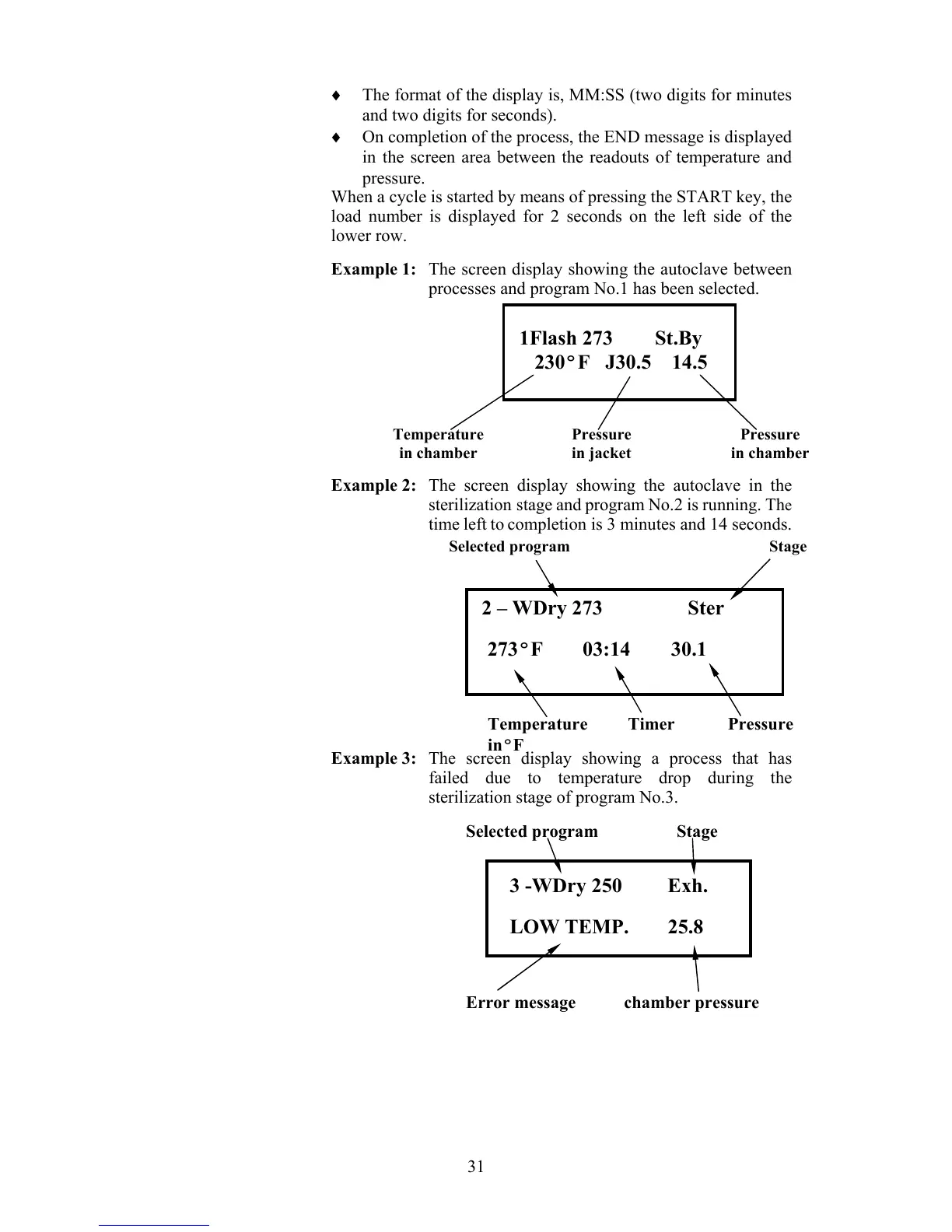

Example 1: The screen display showing the autoclave between
processes and program No.1 has been selected.
Example 2: The screen display showing the autoclave in the
sterilization stage and program No.2 is running. The
time left to completion is 3 minutes and 14 seconds.
Example 3: The screen display showing a process that has
failed due to temperature drop during the
sterilization stage of program No.3.
Selected program Stage
Temperature Timer Pressure
inºF
2 – WDry 273 Ster
273ºF 03:14 30.1
1Flash 273 St.By
230ºF J30.5 14.5
Pressure
in chamber
Pressure
in jacket
Temperature
in chamber
3 -WDry 250 Exh.
LOW TEMP. 25.8
Selected program Stage
Error message chamber pressure
