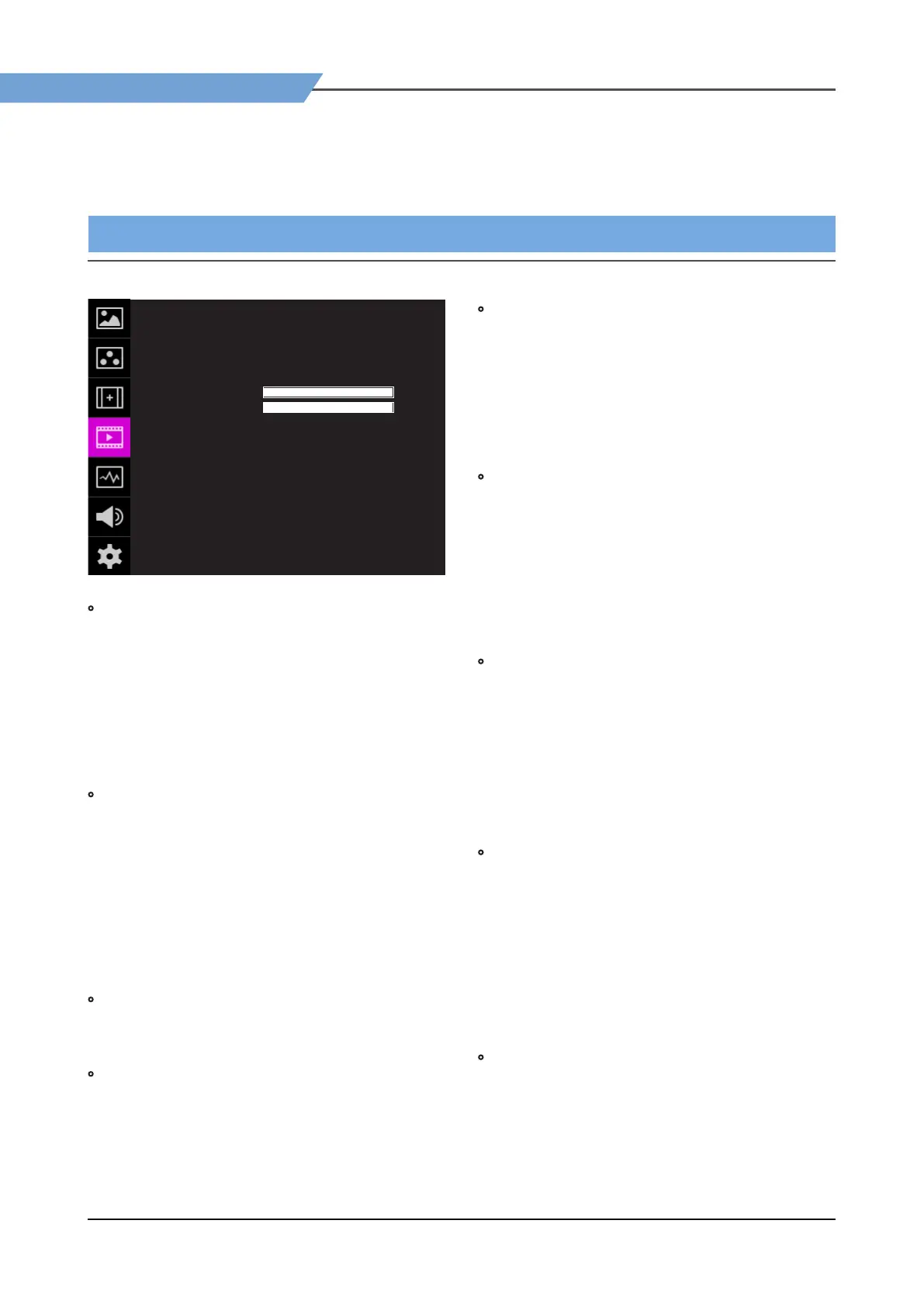

05 MENU OPERATIONS
[4] VIDEO
VIDEO이 F-10A
SCAN
ASPECT
H/V DELAY
BLUE ONLY
USER ASPECT HOR
USER ASPECT VER
3G FORMAT
H/V FLIP
ZOOM
ZOOM SPLIT
ZERO SCAN
16:9
OFF
OFF
NORMAL
OFF
OFF
OFF
+19 20
+10 80
PAG E (1/2)
• SCAN
- Used to change the Scan mode. Scroll up and
down using the Knob and the mode will chang
as the following sequence. [Zero Scan] -> [Over
Scan] -> [Pixel-To-Pixel] -> [User Aspect]
* [USER ASPECT]: User can control the aspect
ratio by adjusting width and height of the display.
* See section “7. Other Functions [1] User
Aspect” for more information.
• ASPECT
- Used to change the Aspect Ratio.
- Regardless of the original Aspect ratio of the
input signal, the Aspect Modes are changed as
follow sequence. : [16:9][4:3][2.35:1][1.85:1][15:9]
[16:10][Anamorphic1.3x][Anamorphic1.5x]
[Anamorphic2.0x][Auto]
*
[Auto] mode enables the Aspect Ratio of the
output signal to be synchronized to the original
Aspect Ratio of the input signal.
• H/V DELAY
- Used to monitor the Blanking area of H sync and
V sync.
• BLUE ONLY
- Used to switch in the order of [O]-[Blue Only]-
[Mono]-[O].
- Press the button to remove red and green
components from the input signal and display
blue componet only.
- Press the button again to switch to mono-
chrome mode which has no chroma signal.
• USER ASPECT HORIZONTAL/USER ASPECT
VERTICAL
- Activated only when the [SCAN] mode is set to
[User Aspect] .
- User can adjust the Horizontal and Vertical size
of the screen.
- See section “7. Other Functions [1] User Aspect”
for more information.
• 3G FORMAT
- Used to select 3G-SDI A/B input format among
NORMAL MODE(AUTO - A 422 10BIT_YCbCr
50/60P), A 444 10/12BIT_YCbCr, A 444 10/12BIT_
RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_YCbCr, B
444 10/12BIT_RGB, B 422 12BIT_YCbCr, B 422
10BIT_YCbCr 50/60P.
- In NORMAL MODE, automatically detected when
Payload signal is contained.
• H/V FLIP
- Allows the displayed image to be ipped
horizontally or vertically.
- This feature provides exible mounting options
for camera operators.
- In the [AUTO] mode, the vertical FLIP operates
automatically according to the position of the
unit.
- Activates in the order : [H Flip]-[V Flip]-[H/V Flip]-
[AUTO]
• ZOOM
- Used to magnify the image up to 90% on a pixel
basis and display on full screen.
* (e.g.,10% Zoom : If the input signal’s resolution is
1920 x 1080, only 90% (1728(H) x 972(V)) of the
image would be shown on full screen without
the remaining 10% (192(H) x 108(V)) of the
image.)
* See section “7. Other Functions -> [4] Zoom” for
more information.
• ZOOM SPLIT
- Used to magnify the image.
- Used to zoom the specied area sequentially.
- Designable areas are Left-Top, Right-Top, Left-
Bottom, Right-Bottom and Center.
