Multi Format LCD Monitor
15
Menu Organization & Adjustment
The product may be controlled and set system-wise through OSD displayed on the screen.
1) Menu Organization
Below is the organization of the product’s menu.
2) Menu Control
You may control various functions using MENU, UP/DOWN and ENTER buttons on the bottom
front of the monitor.
3) Menu Control Sequence
Menu control sequence follows the order below :
1. Press MENU button to bring the OSD menu on the screen.
2. Display the desired sub menu with the UP/DOWN button.
3. After selecting a sub menu, press ENTER to select an item with the UP/DOWN button.
4. Press ENTER to select the desired item (veried by highlighted eld text turning red).
5. Press ENTER to save the new value after adjusting the value with UP/DOWN button (Veried
by highlighted eld returning to default black color).
6. Press MENU to remove OSD menu from the screen.
7. To view next page in the sub menu, press ENTER button at PAGE I >> PAGE II.

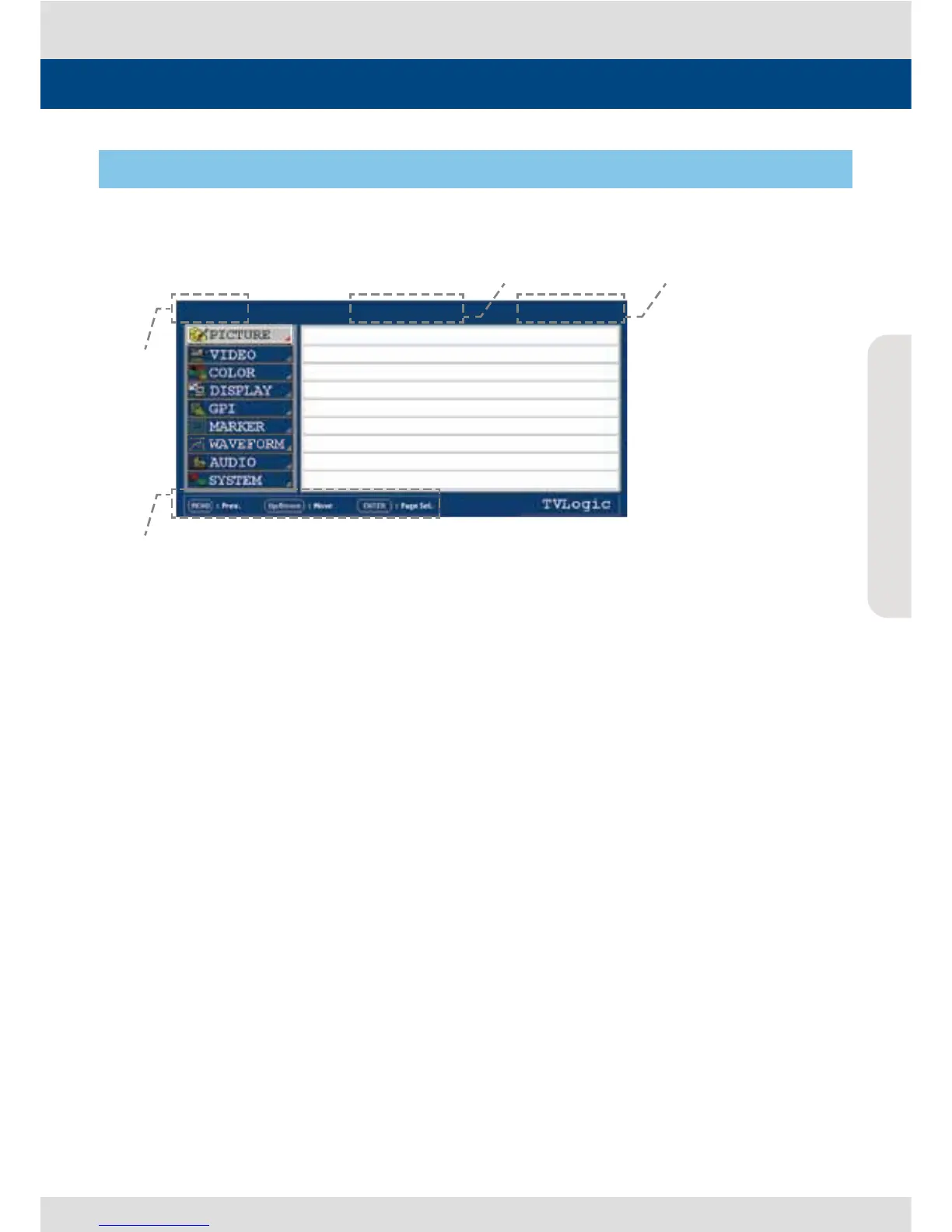

4) Main Menu Window Information
ྙ Menu item and page info
ྚ Model name(LVM-243W-3G)
ྛ Current input signal
ྜ Current input signal resolution
PAGE I >> PAGE II
BRIGHT 0
CONTRAST
0
CHROMA
0
PHASE 0
APERTURE 0
NTSC SETUP
7.5IR E
VGA H POSITION MIN
VGA V POSITION MIN
ྛ
ྚྜ
ྙ
SDI A LVM-243W-3G 1080/60i
To Next Page
