TVLogic LVM-245W User Manual

Multi Format LCD Monitor
25
REM
O
TE (
R
J
-45
)
1:
P
in1
2
: P
i
n
2
3:
P
i
n
3
4:
P
in4
5: P
i
n5
6:
P
i
n
6
7
:
P
in7
8
:
G
ND
1
8
Menu Contents

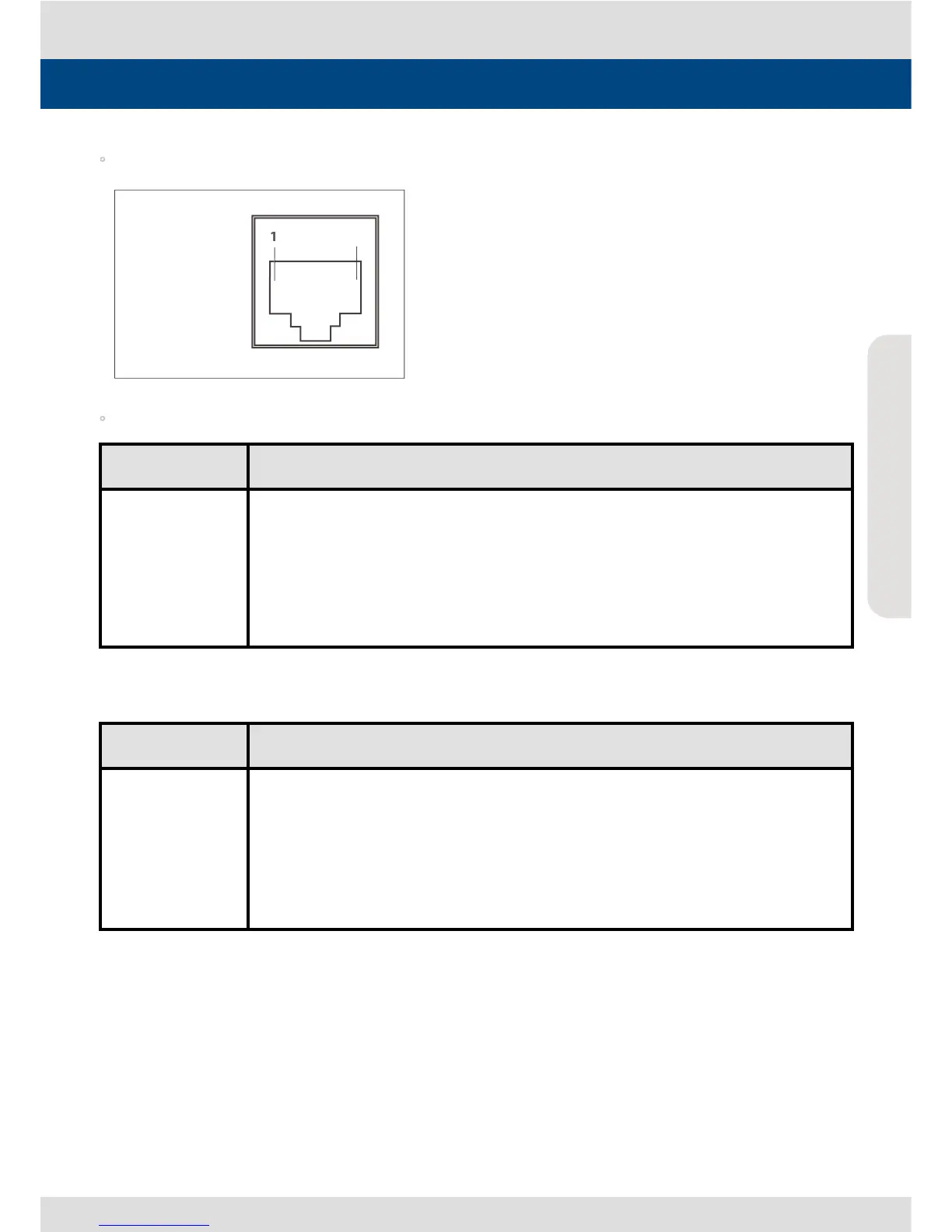

 The pin positions are as follows :
 Selectable functions are as follows :
<LVM-173W-3G>
<LVM-243W/323W/403W/463W/553W-3G>
Menu
Classication
Settable Values
PIN 1~6
NONE, ANALOG CHANNEL, DIGITAL A CHANNEL, DIGITAL B CHANNEL,
PBP CHANNEL, TALLY R, TALLY G, TALLY Y, UNDER SCAN, 1:1 SCAN, ASPECT,
H/V DELAY, BLUE ONLY, MONO, 16:9 MARKER, 4:3 MARKER, 4:3 ON AIR MARKER,
15:9 MARKER, 14:9 MARKER, 13:9 MARKER, 1.85:1 MARKER, 2.35:1 MARKER,
1.85:1&4:3 MARKER, CENTER MARKER, SAFETY AREA 80%, SAFETY AREA 85%,
SAFETY AREA 88%, SAFETY AREA 90%, SAFETY AREA 93%, SAFETY AREA 100%,
708, 608(LINE 21), 608(ANC), DYNAMIC-UMD
Menu
Classication
Settable Values
PIN 1~6
NONE, ANALOG CHANNEL, MODE CHANNEL, PBP CHANNEL, TALLY R, TALLY G,
TALLY Y, UNDER SCAN, 1:1 SCAN, ASPECT, H/V DELAY, BLUE ONLY, MONO,
16:9 MARKER, 4:3 MARKER, 4:3 ON AIR MARKER, 15:9 MARKER, 14:9 MARKER,
13:9 MARKER, 1.85:1 MARKER, 2.35:1 MARKER, 1.85:1&4:3 MARKER,
CENTER MARKER, SAFETY AREA 80%, SAFETY AREA 85%, SAFETY AREA 88%,
SAFETY AREA 90%, SAFETY AREA 93%, SAFETY AREA 100%, 708, 608(LINE 21),
608(ANC), DYNAMIC-UMD
