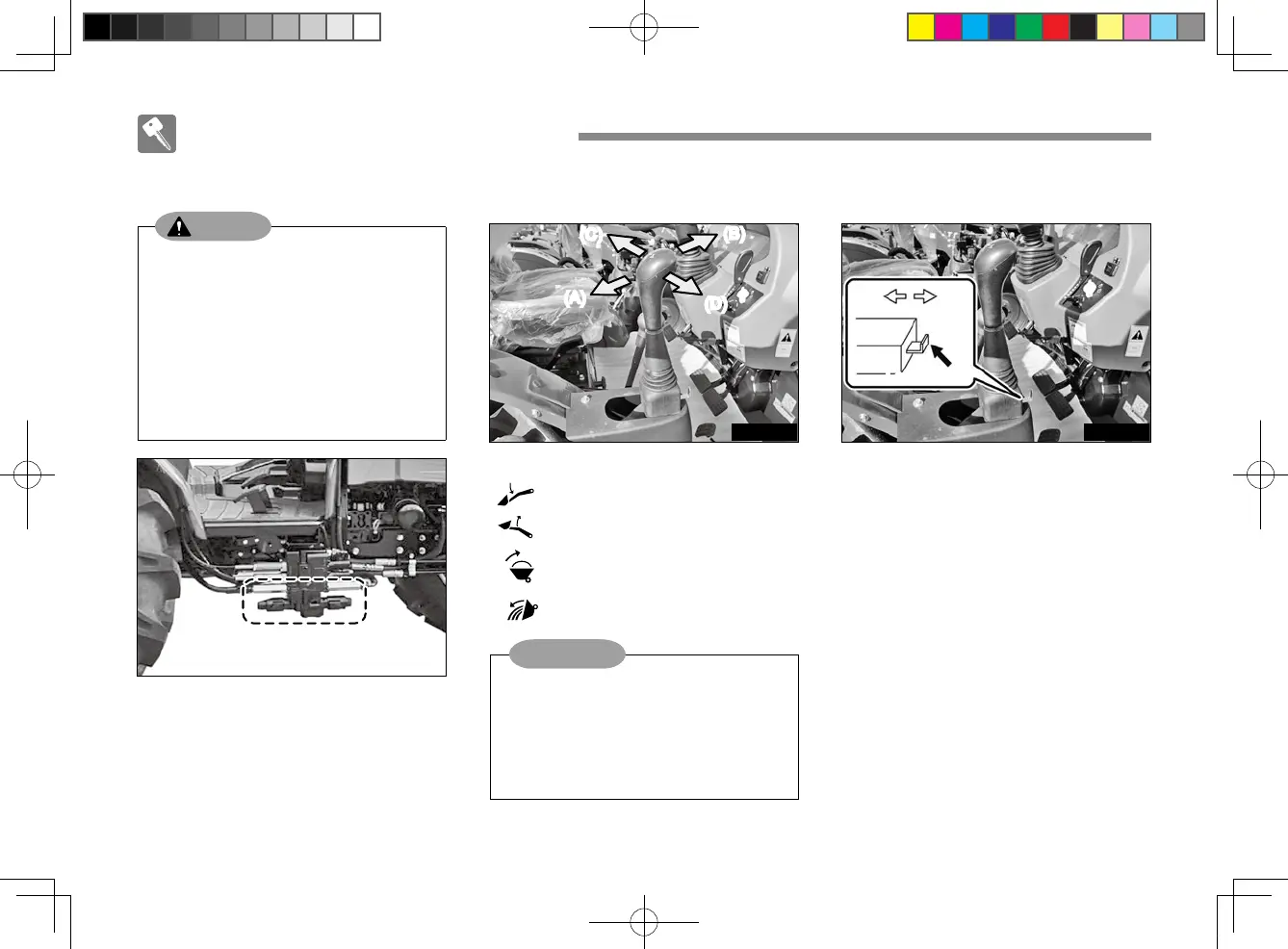

Abnormal operation of a loader
can lead to an accident. There-
fore, w h e n co n n e c ting t h e
hydraulic pipes, set the valve
connection according to the op-
erating directions specified on
the label attached to the joystick
lever.
•
WARNING
(1)
Joystick lever operating directions
- Boom down (B)
- Boom up (A)
- Bucket up (C)
- Bucket down (D)
Do not operate the boom cylin-
der and bucket cylinder at the
same time. A loader may mal-
function due to insufficient oil
ow.
•
NOTE
T4NO214A
LOADER VALVE 3TH KIT
(OPTION)
►
(2) Joystick lever safety device
T h er e is a b ut to n to l oc k th e
operation of the joystick lever.
Pulling it forwards unlocks the lever
while pushing it backwards locks
the lever.
T4NO223A
Rel-
ease
Lock
Lock button
T4NO224A
(C)
(A)
(B)
(D)
