DESCRIPTION OF TRACTOR CONTROLS

2 - 30

AUX. HYDRAULIC VALVE

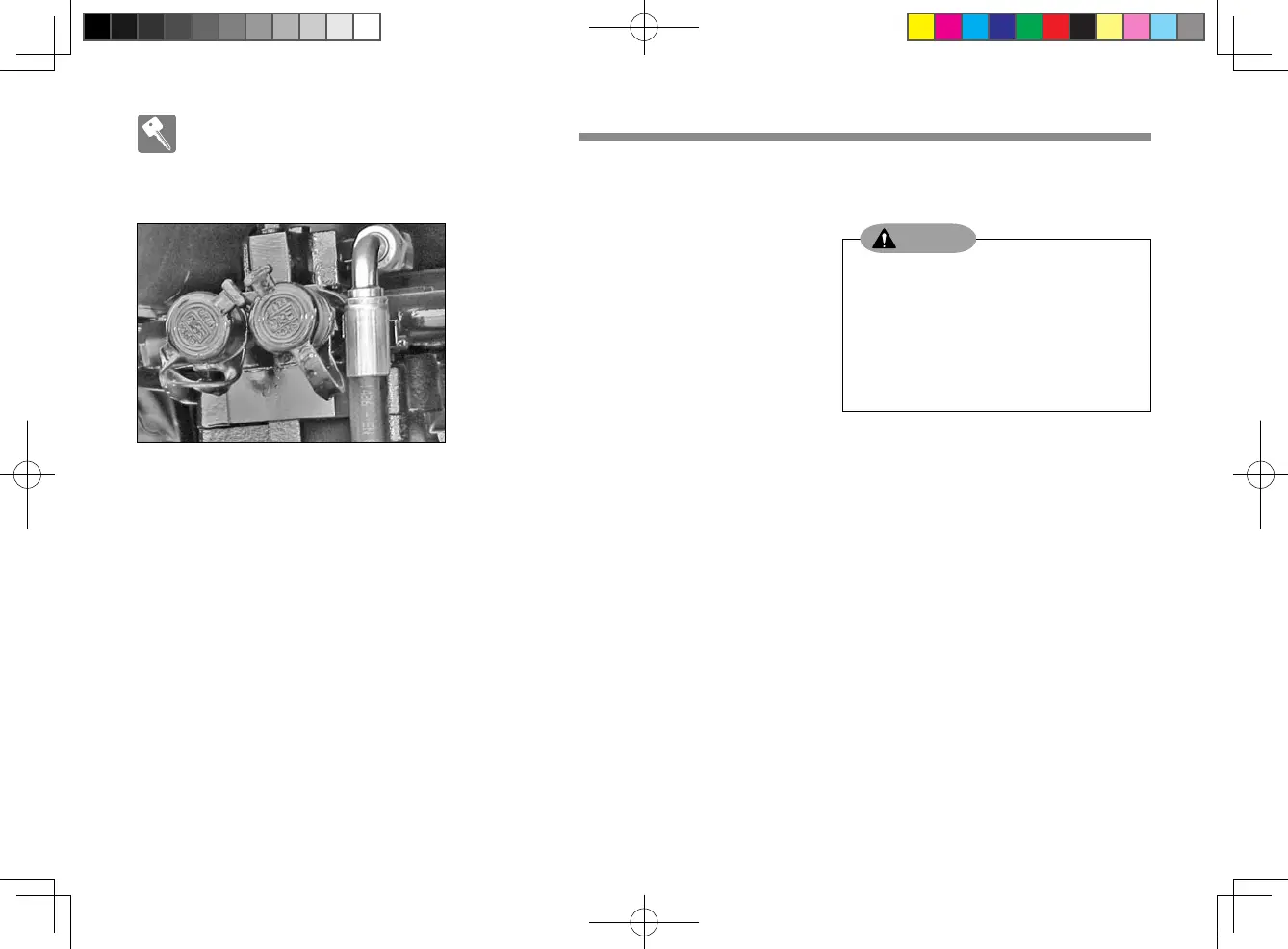

(1) How to engage coupler

① Clean the couplers on the tractor

and implement thoroughly.

②

Remove the dust cover from the

tractor side. Then, fit the male

coupler on the implement side

while moving its external ring

backward slightly.

③ Pull the male coupler on the im-

plement side backward slightly

to check its firm engagement.

►

T4HO228A

(2) How to disengage coupler

① Lower the implement on the

ground to release pressure in

the hydraulic hose.

②

Stop the engine and operate the

remote hydraulic lever to remove

any residual pressure in the

hose.

③ Disconnect the male coupler on

the implement side while mov-

ing its external ring on the tractor

side backward slightly.

④ Wipe oil and dust from the cou-

pler and plug the dust cover.

To prevent a burn and skin

damage, make sure to stop the

engine before connecting or

disconnecting the coupler.

Do not use your hands to check

for oil leakage.

•

WARNING
