Set it to the Lock position under
the following conditions to prevent
falling of the implement :
When driving on a public road
When replacing the rotavator
blade or removing straws and
grass
When servicing the implement
•
•
•
WARNING

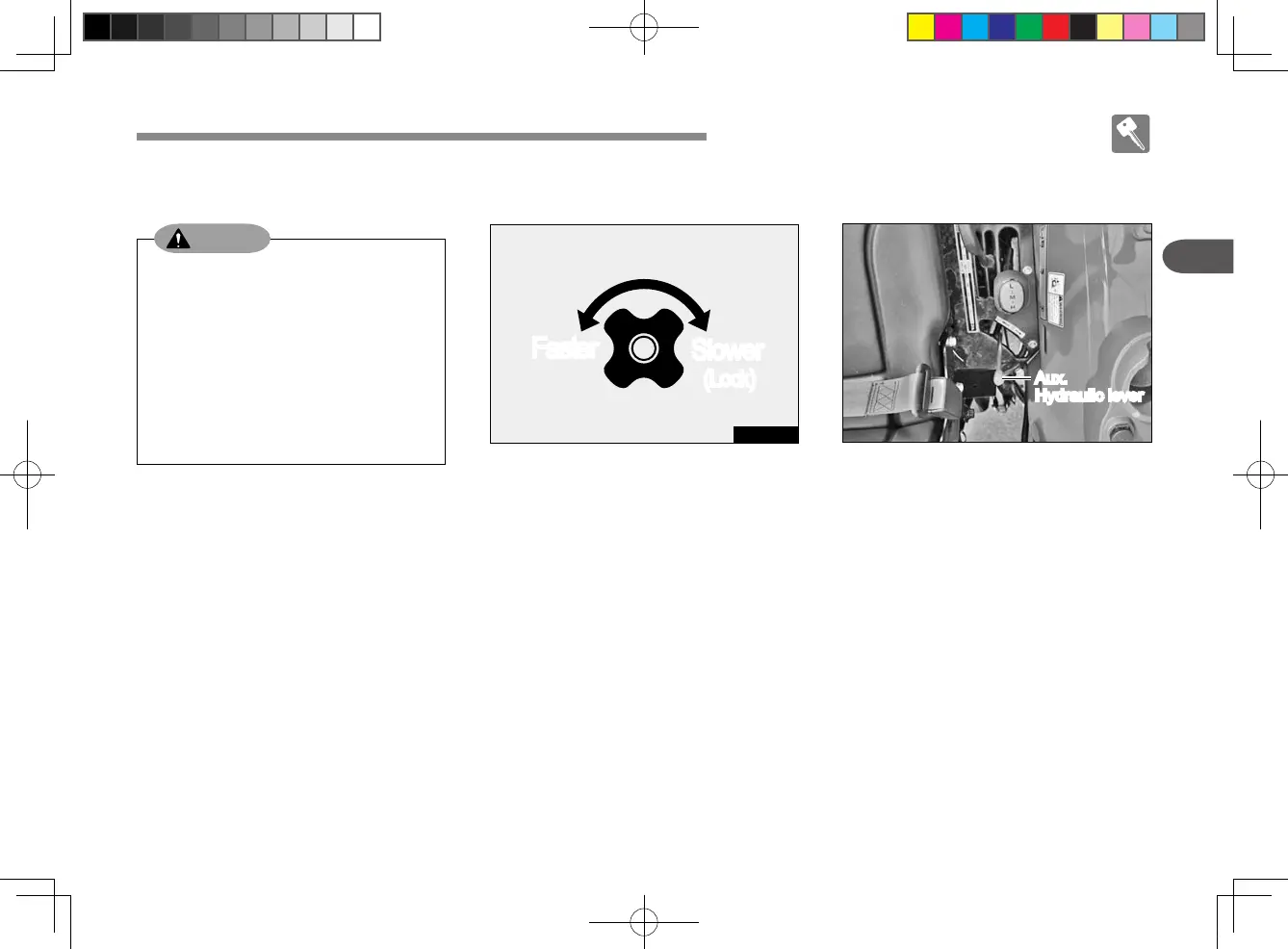

Decreasing lowering speed
Turn the knob clockwise (slower).
Increasing lowering speed
Turn the knob counterclockwise
(faster).
Lock
Turn the knob clockwise (slower)
to its end.
•
•
•
T253O241A
Slower
Faster
(Lock)
AUX. HYDRAULIC LEVER
When using an attachment for an
implement (rotavator, hydraulic
plow, etc.), connect its hose to the
proper port between the port A and
B according to its use.
Lever A operation - Hydraulic pres-
sure applied to the port A of the
external hydraulic valve coupler
Lever B operation - Hydraulic pres-
sure applied to the port B of the
external hydraulic valve coupler
►
•
•
T4HO227A
Aux.
Hydraulic lever
