IMPLEMENT LIFT CONTROL
SYSTEM

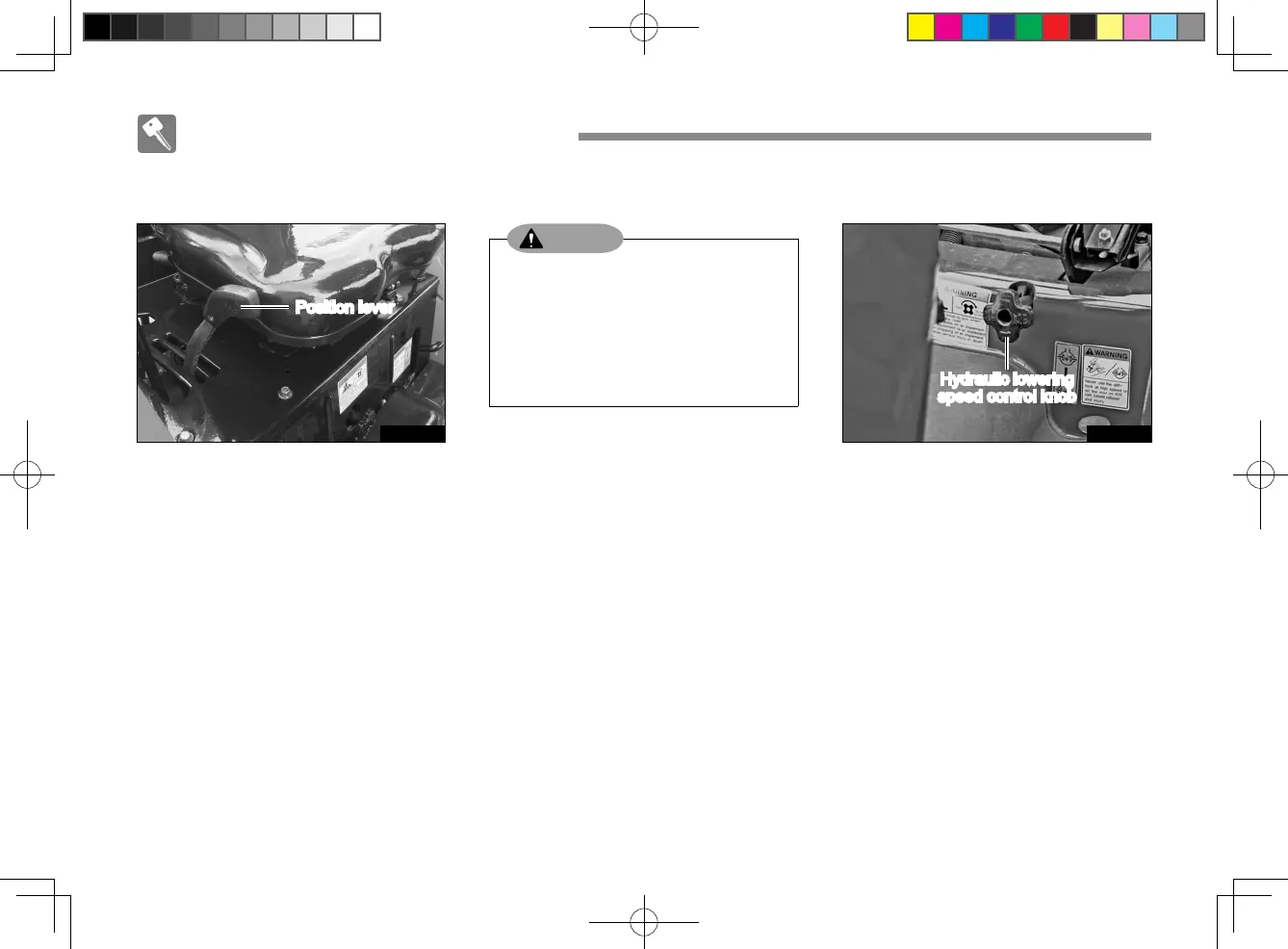

(1) Position lever
This lever is used to lift and lower
an implement to a certain working
height freely and maintain it.
<Operation>
「 Lifting implement」
P
ull the lever back to lift the im-
plement.
「Lowering implement」
Push the lever forward to lower
the implement.
►
T4HO226A
Position lever
When leaving the tractor, make
sure to lower the implement and
stop the engine. Others may
operate one of the controls,
leading to a dangerous situa-
tion.
•
WARNING
HY DR AU LI C L OW ER IN G
SPEED CONTROL KNOB
This can be used to adjust the low-
ering speed of the implement.
Adjust the lowering speed according
to the implement type and working
environment.
<Operation>
Rotavator - Slow the lowering
speed.
Plow - Speed up the lowering
speed.
►
•
•
T253O226A
Hydraulic lowering
speed control knob
