Ultimaker 3 Extended Instruction Manual

3D PRINT - Ultimaker Extended 3 CHAPTER 2. MATERIAL
.

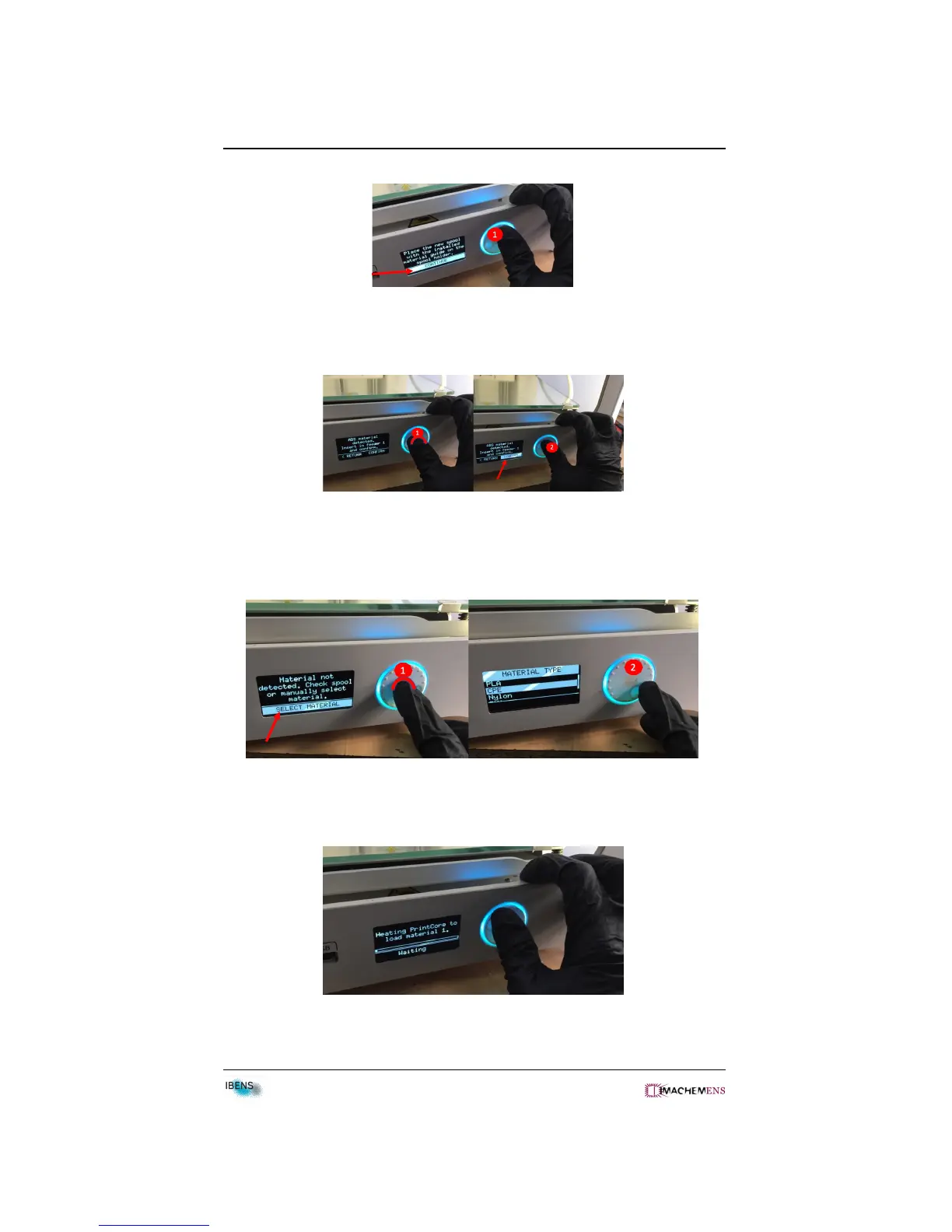

• When using Ultimaker material, Wait until the Ultimaker print detects the
material and then select ”confirm”.
.
• When using non-Ultimaker material, material is not automatically de-
tected. Rotate the button to select the material ”select Material” on the drop-
list. Confirm by pushing the button.
.
• Wait for the print to load the material into the print core.
.
• Wait for the print to head up the print core.
11

Ultimaker 3 Extended Specifications

General

Build Volume	215 x 215 x 300 mm
Layer Resolution	20 - 200 microns
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Operating System	Windows, MacOS, Linux
Print Speed	Up to 24 mm³/s
Software	Ultimaker Cura
Weight	11.3 kg
Print Head	Dual extrusion
Nozzle Diameter	0.4 mm
Supported Materials	PLA, ABS, Nylon, CPE, PVA
Connectivity	USB, Ethernet, Wi-Fi
Display	4.7" color touchscreen
Power Requirements	100 - 240 V / 50 - 60 Hz
Travel Speed	Up to 300 mm/s
