Ultimaker 3 Extended Instruction Manual

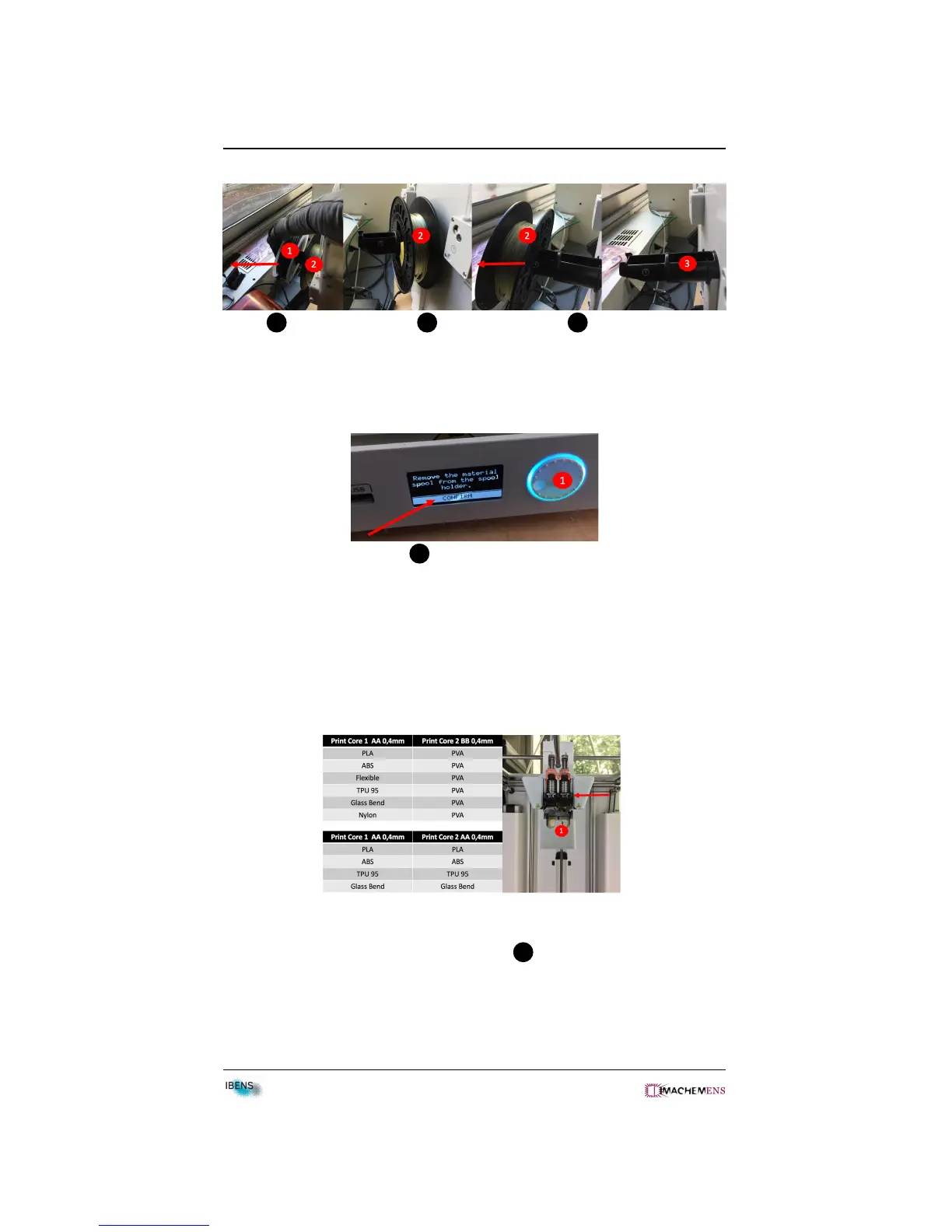

3D PRINT - Ultimaker Extended 3 CHAPTER 2. MATERIAL
.
1 : Spool material 1 - 2 : Spool material 2 - 3 : Spool holder.
• Select the ”confirm” option on the display panel when you have removed
the material spool from the spool holder.
.
1 : Confirm button
2.2 Load/Change the material
• First, choose your material spool (PLA, ABS, PLA...) on the shelf above
the 3D print.
See below, the combinations if you wish use the two materials.
.
Open the print head fan bracket and make sure type of the print cores is com-
patible with the material that you want use. 1 .
Begin to put the material 2 on the spool holder. If you need to change the print
core, see the Ultimaker print core manual.
8

Ultimaker 3 Extended Specifications

General

Build Volume	215 x 215 x 300 mm
Layer Resolution	20 - 200 microns
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Operating System	Windows, MacOS, Linux
Print Speed	Up to 24 mm³/s
Software	Ultimaker Cura
Weight	11.3 kg
Print Head	Dual extrusion
Nozzle Diameter	0.4 mm
Supported Materials	PLA, ABS, Nylon, CPE, PVA
Connectivity	USB, Ethernet, Wi-Fi
Display	4.7" color touchscreen
Power Requirements	100 - 240 V / 50 - 60 Hz
Travel Speed	Up to 300 mm/s
