Step 3: Assembling the X and Y motor Assembling the frame 16
6.1.3. Step 3: Assembling the X and Y motor
The following parts are needed in this step.
Letter Description Qnty.
A
LEFT panel 1
B
BACK panel 1
C
motors with long wires and rounded axles 2
D
Motor spacer 2
E
M3 washers 8
F
short timing belts 2
G
pulleys with a 5mm internal diameter 2
H
bolts M3 x 25mm 8

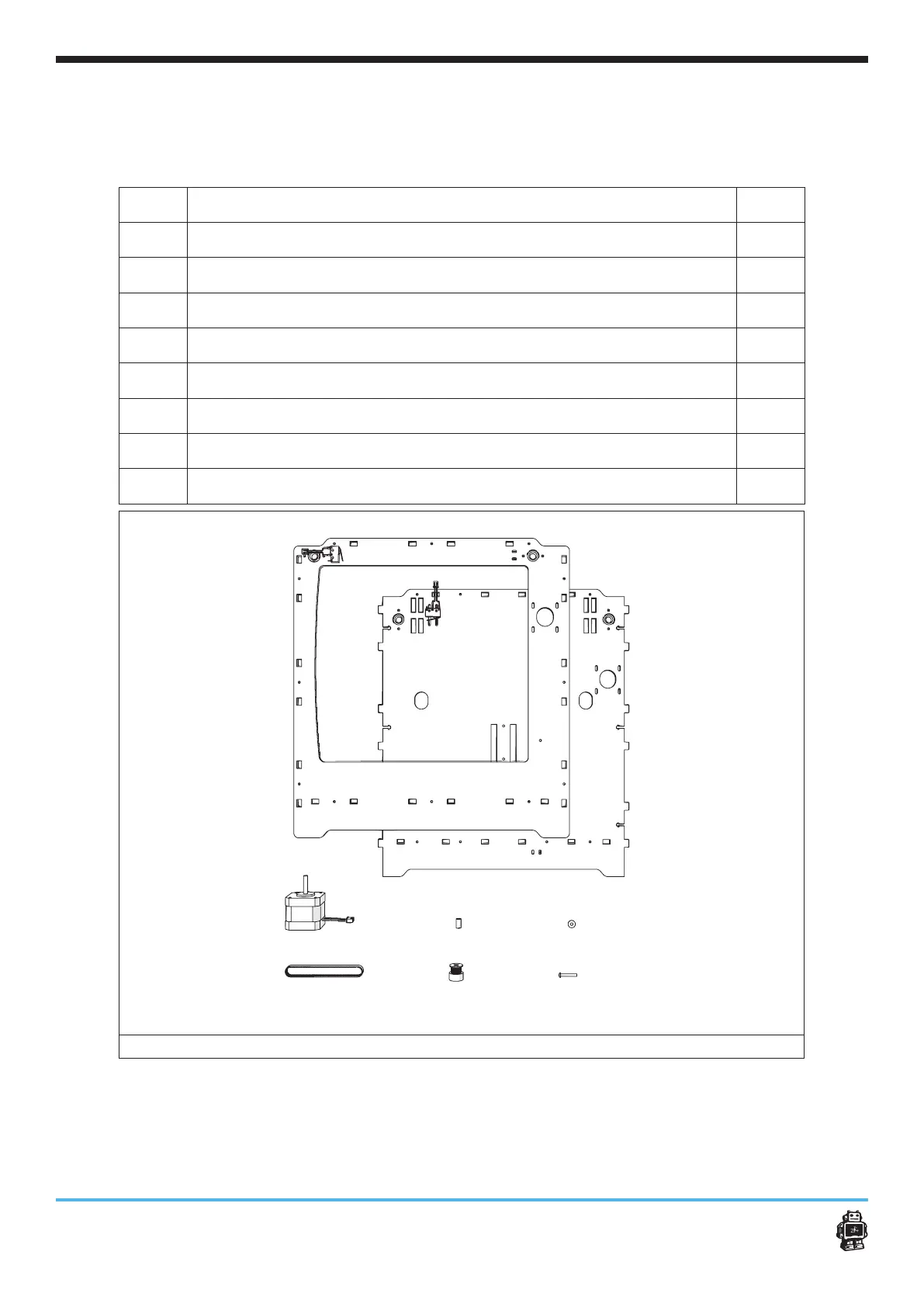

image 8: parts needed for this step
A
C
B
E
F G H
D
