Ultraflux Minisonic II Portable User Manual

33
Flowrate IQ100%
20,000 l/h
Totalizer
000000000026 m3

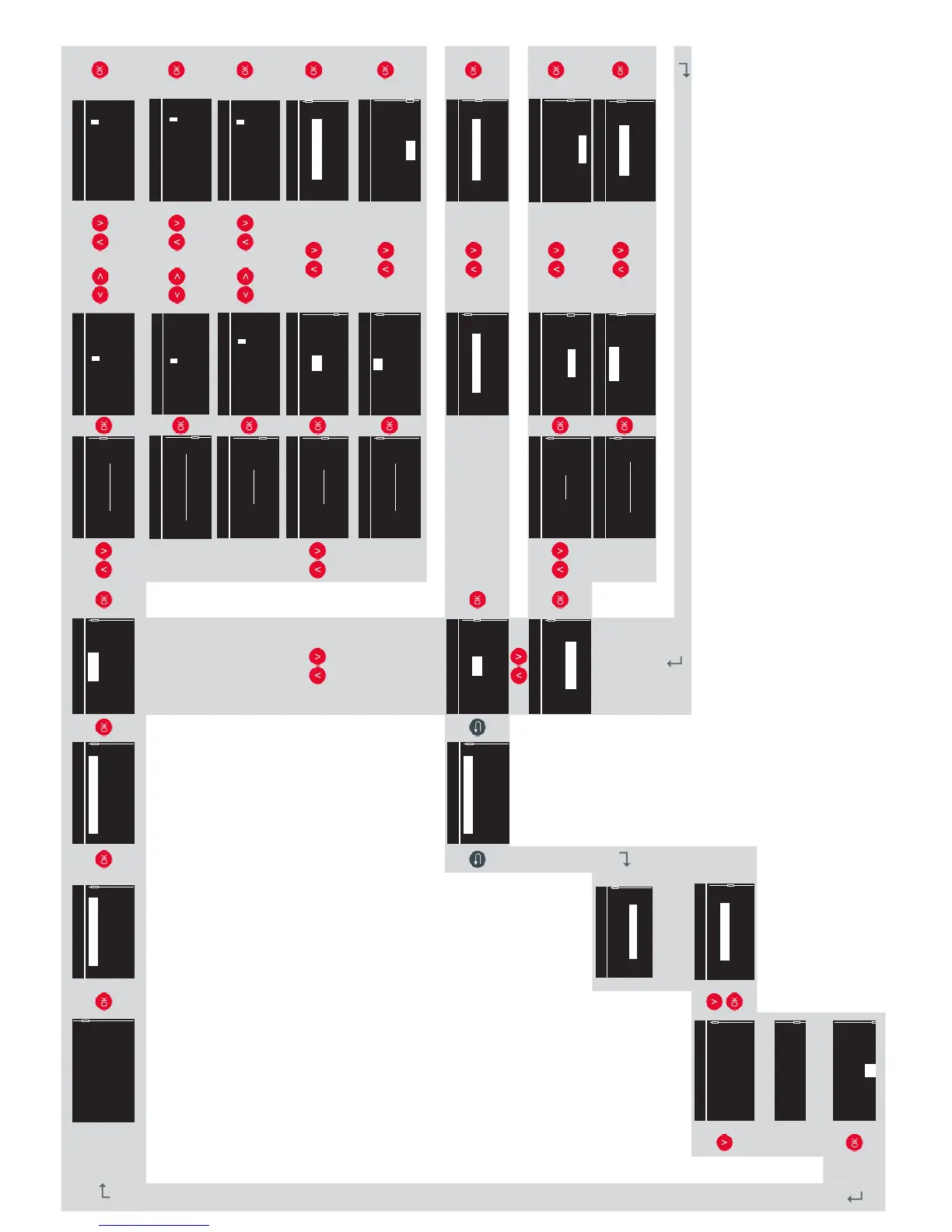

Menu
Measurement config.
Probes distance
US Signal display
Auto zero
Flowrate measurement
Measurement config.
Logger
Inputs / Outputs
Low power mode
Pipe
Flowrate measurement
Pair of probes
Fluid
Filtering
Pipe
Ext. Diameter
22,00
Ext. Diameter
00022,20 mm
Min : 10,00 mm
Max : 10000,00mm
Digit to digit
Modify value
Ext. Diameter
00048,30 mm
Min : 10,00 mm
Max : 10000,00mm
Validation
Pipe
Ext. circumference
69,12 mm
Ext. circumference
00069 ,12 mm
Min : 18,85 mm
Max : 31415,93 mm
Digit to digit
Modify value
Ext. circumference
00151 ,7 4 mm
Min : 18,85 mm
Max : 31415,93 mm
Validation
65 65
Pipe
Thickness
2,00 mm
Thickness
003,00 mm
Min : 00,00 mm
Max : 500,00 mm
Digit to digit
Modify value
Thickness
003,20 mm
Min : 00,00 mm
Max : 500,00 mm
Validation
Pipe
Material
PVC
Material
Polyethylene
PVC
PVC HP (rigid PVC)
Stainless steel 304L
Select from the list
Material
Aluminium 1100-0
Carbon steel (1%)
Cast iron
Copper
Validation
65 65
Pipe
Displayed unit
l/h
l/h
Displayed unit
m3/s
m3/min
m3/h
l/h
Select from the list
l/h
Displayed unit
m3/s
m3/min
m3/h
l/h
Validation
Flowrate measurement
Measurement config.
Logger
Inputs / Outputs
Low power mode
Pipe
Flowrate measurement
Pair of probes
Fluid
Filtering
4
Fluid
Fresh water 50°C
Glycol water 5°C
Oil SAE 20
Sea water
Select from the list
Fluid
Fresh water 10°C
Fresh water 20°C
Fresh water 5°C
Fresh water 50°C
Validation
5
6
Pipe
Flowrate measurement
Pair of probes
Fluid
Filtering
Pair of probes
Probes
SE1815
Probes
0SE 1662-10
SE 1515 SE 1815
SE 1790
Select from the list
Probes
0SE 1662-10
SE 1515 SE 1815
SE 1790
Validation
Setup validation
5 datas have been
modified :
Use modifications
Discard modifications
5 65
Pair of probes
Ultrasonic path
1 reflection (V)
Ultrasonic path
Direct (/)
1 reflection (V)
2 reflections (N)
3 reflections (W)
Select from the list
Ultrasonic path
Direct (/)
1 reflection (V)
2 reflections (N)
3 reflections (W)
Validation
3 3
Probes distance
Pair of probes 1
46,9 mm
Validate this screen
only after having
Setup validation
modified :
Use modifications
Discard modifications
Continue modifications
6
Probes distance
positionned the probes
correctly so that the
measurement initializes
under good conditions
Probes distance
measurement initializes
under good conditions.
Thank you
OK
