7

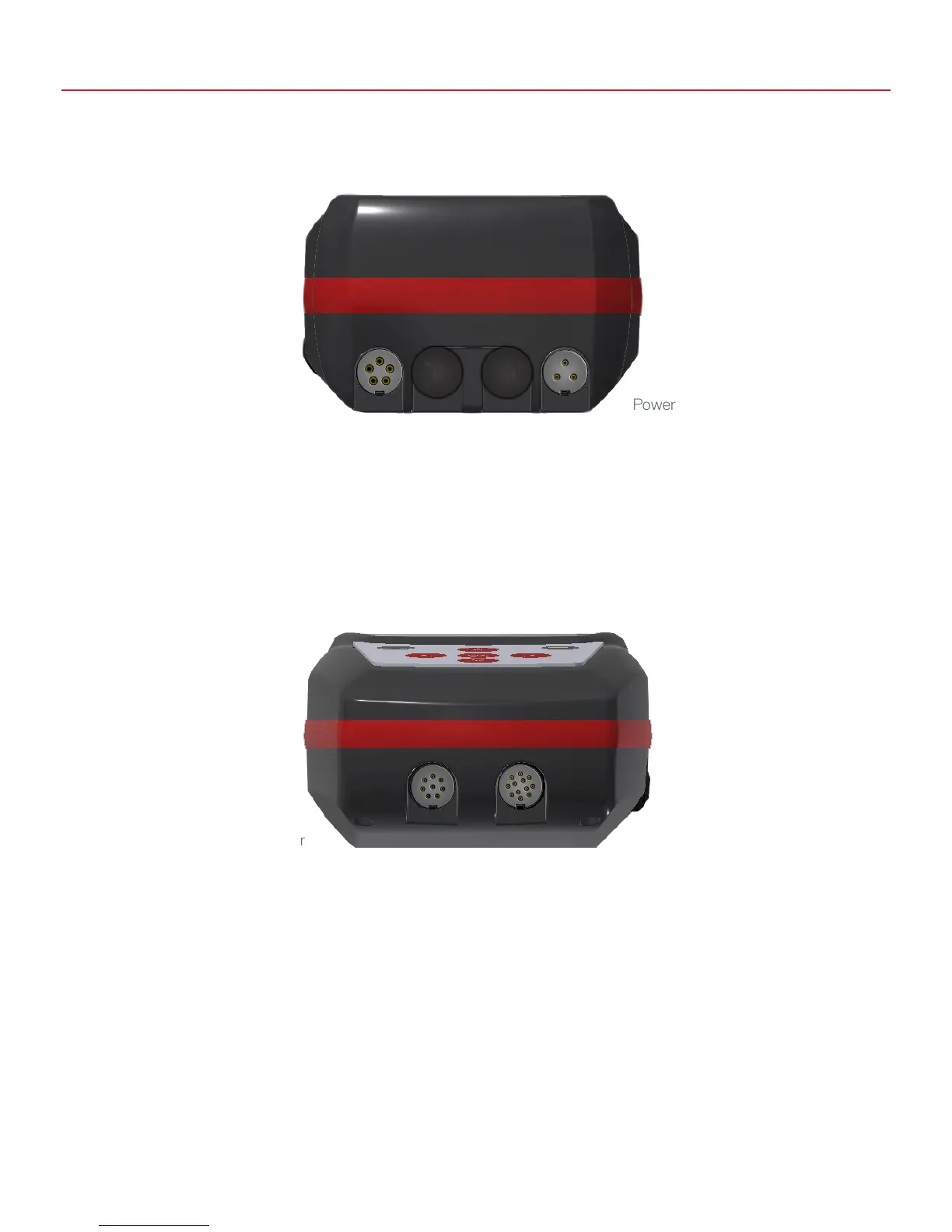

Figure 2 - Connectors on the lower face
Figure 1 - Connectors on the upper face
Power supply connectorProbe connector
USB connector
Output connector
Connecting the inputs / outputs
