Pulse and analog outputs

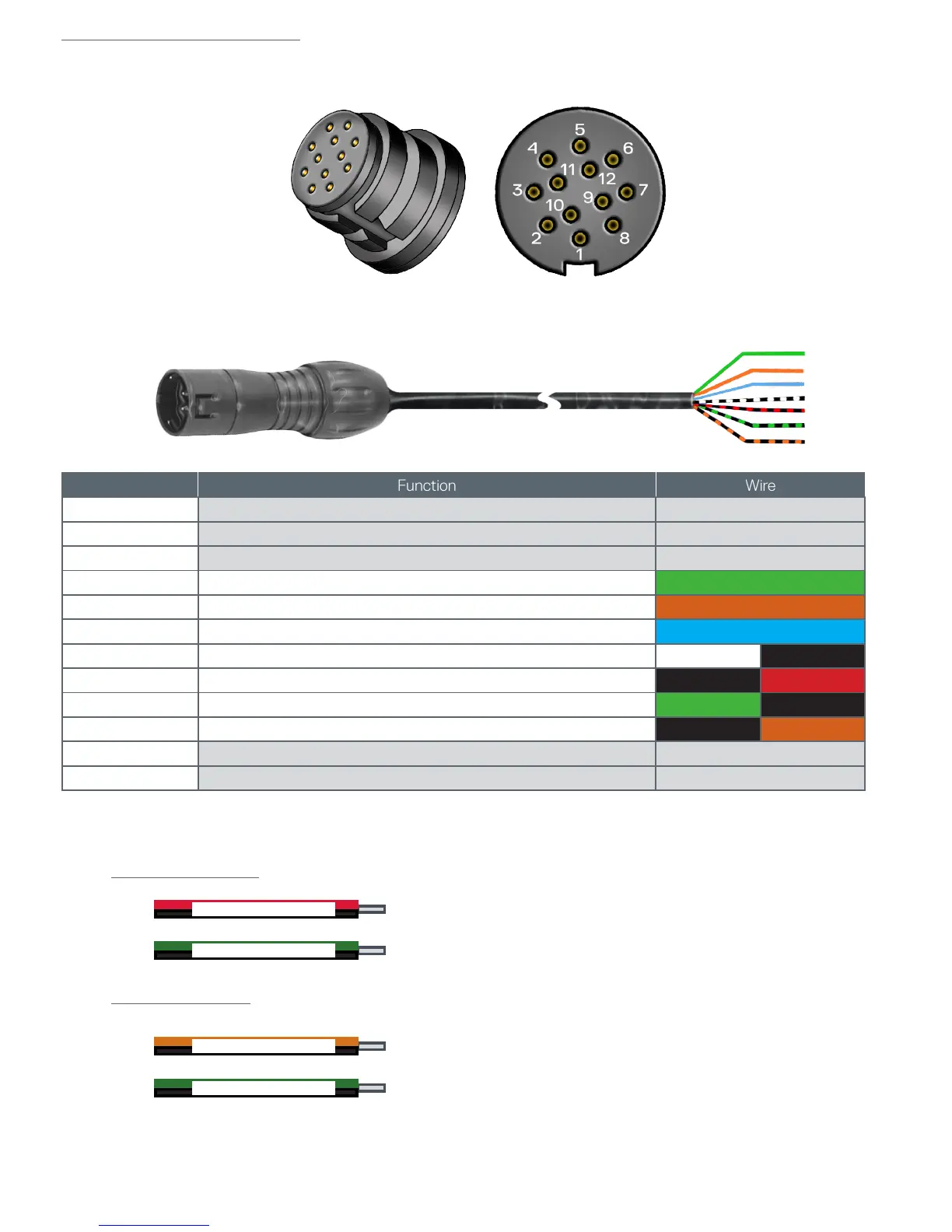

Figure 4 - Connector outputs

Pin Function Wire

1 -

2 -

3 -

4 Pulse output A

5 Pulse output A

6 Pulse output B

7 Pulse output B

8 Analog. output -

9 Analog. output +

10 P 24 V - ISO 3

11 -

12 -

Analog output -

Analog output +

Wires to be used on the Minisonic II to go to a reciever that sup-

ply the power to the measurement loop (Minisonic II : 4-20 mA

passive)

Output P24v ISO3

Analog output +

Wires to be used on the Minisonic II to go to a reciever that

do not supply the power to the measurement loop (Minisonic II :

4-20 mA active)

Passive analog output

Active analog output
