Compressor Unit Instruction Manual
ULVAC CRYOGENICS INCORPORATED    3-1
3. INSTALLATION
3.1 Installation ................................................................................................. 3-1
3.2 Connecting Cooling Water Piping ............................................................. 3-1
3.3 Cooling Water ............................................................................................ 3-2
3.4 Connecting the Super Trap (Refrigerator Unit) to the
Compressor Unit ....................................................................................... 3-5
3.5 Connecting Electrical Cables .................................................................... 3-7

3.1 Installation

1. Place the compressor unit on a level floor
within 5º.
2.The compressor unit must be operated in
proper room temperature (10℃〜38℃).
3.Leave the spaces as shown in Figure 3-1 to
make the following maintenance processes
easier.
・ Pressure gauge inspection.
・ Gas charge valve operation.
・ Adsorber replacement.

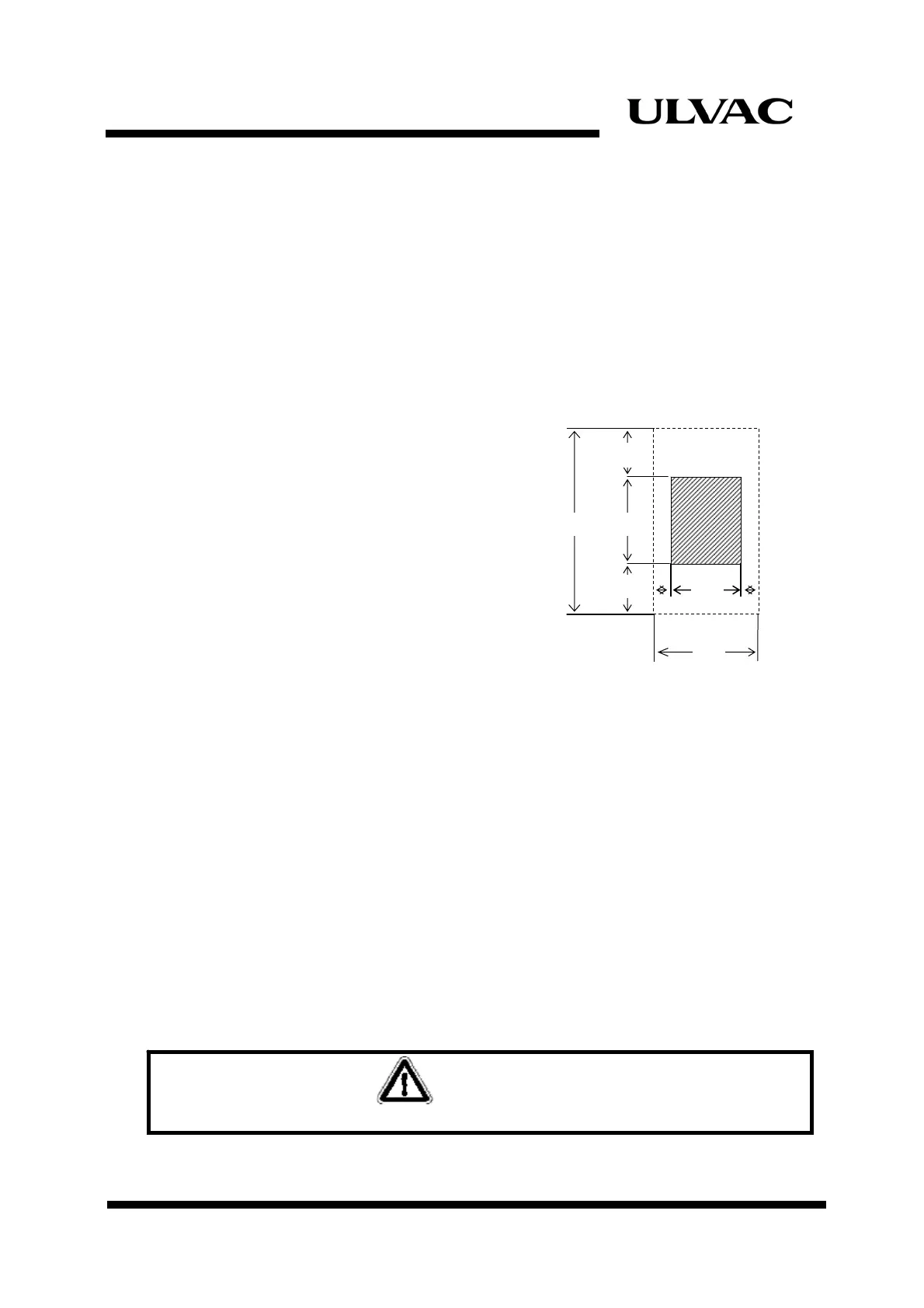

Figure 3-1 Maintenance Space (Unit: mm)
3.2 Connecting Cooling Water Piping
Install the cooling water piping as follows:
1. Cooling water inlet/outlet connector : Rc3/8 female.
2. Water pipes can be vinyl hoses or copper pipes as long as the withstanding pressure of
those is 1.5 times higher than cooling water supply pressure.
3. It is recommend that a filter is installed in the water line between the cooling water
main valve and the compressor unit to prevent water scales. It is also recommended to
install a flow meter (approx.0〜15L/min.) between the filter and the compressor unit
to check the flow rate.
4. Ensure to connect inlet/outlet to the right place. Do not connect them the wrong way
around.


Make sure that all water connections are tight.

CAUTION
510
1510
500
500
50 50
453
553
