4. Vertical VOLTS/DIV adjustment setup 5. Waveform inversion setup
You can adjust the VOLTS/DIV range of the vertical
deflection factor either in the coarse tune mode or
fine tune mode. In coarse tune mode the
VOLTS DIV range is 2mV/div~5V/div Tuning is in
steps of 1-2-5 In fine tune mode you can change
the deflection factor in even smaller steps within
the current vertical range so as to continuously
adjust the vertical deflection factor within the range
of 2mV/div~5V/div without interruption.
Waveform inversion : The displayed signal is inverted
180 degrees. Figure 2-8 shows the non inverted
waveform Figure 2-9 shows the inverted waveform

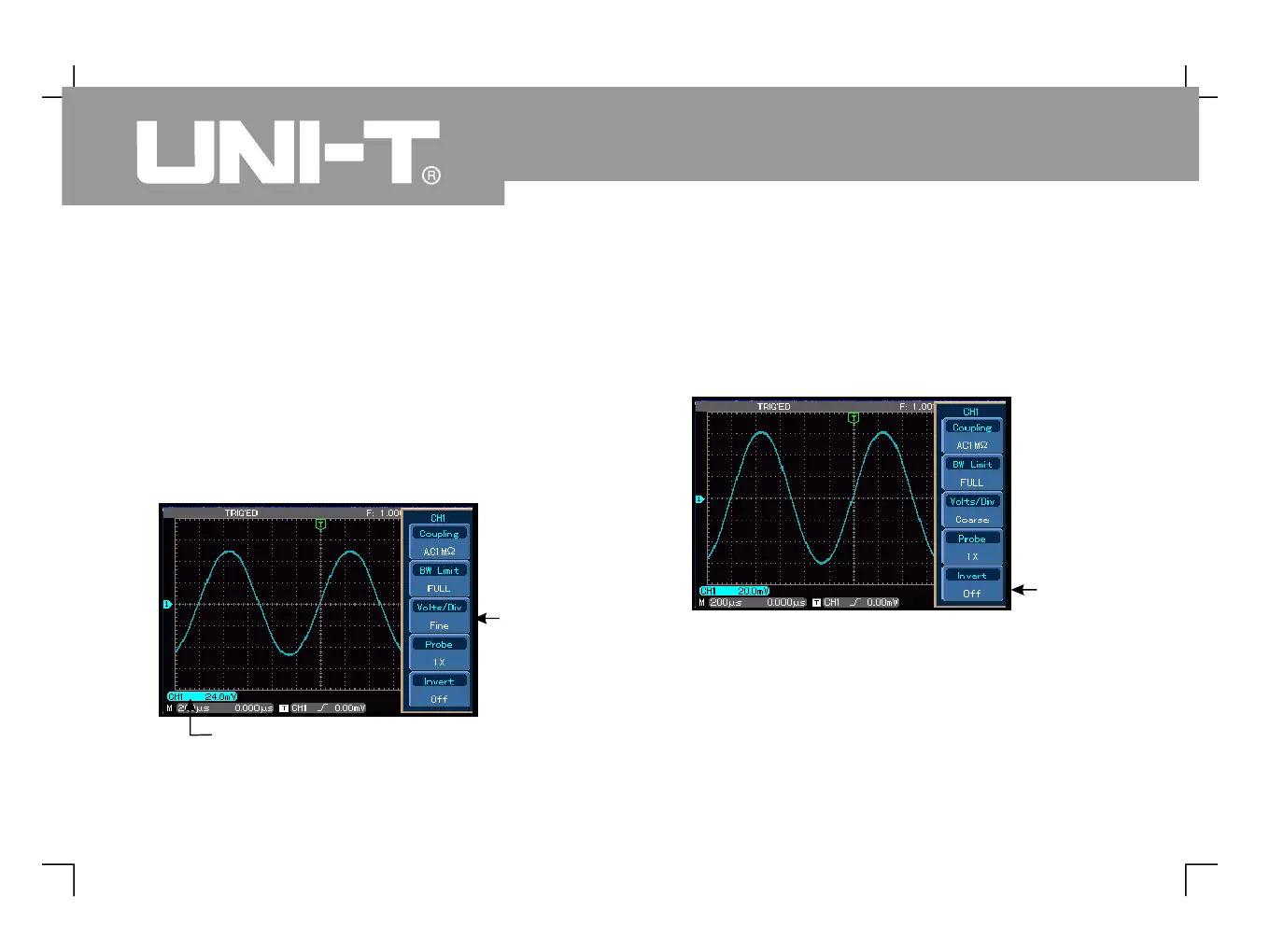

Figure 2-7 Coarse tuning and fine tuning the vertical
Vertical graticule factor VOLTS/DIV movement
Figure Inversion setup for vertical channel
non inverted graticule factor
