UNI-T UTD4000 Series User Manual

UTD4000 Four-channel
User Manual
30
Digital Filtering Function
Table 2-5a Explanatory notes for the digital filtering menu (1)

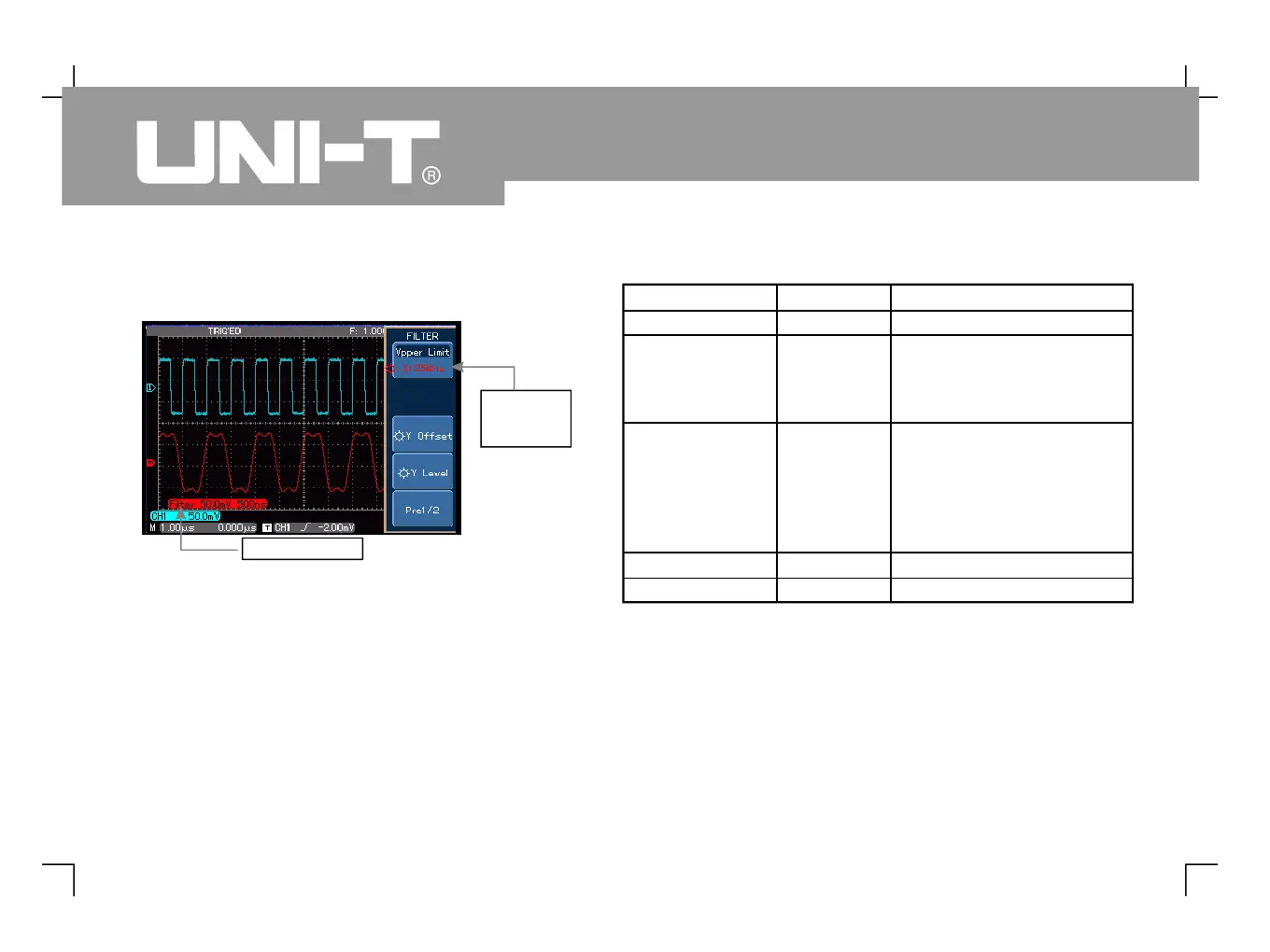

Figure Digital filtering
2-12
Setting the
maximum
frequency
Digital filtering
Function Menu
Setup
Explanatory Note
Source
CH1
CH2
CH3
CH4
Set CH1 as filter target
Set CH2 as filter target
Set CH3 as filter target
Set CH4 as filter target
Type
Filter
Digital filtering
Filter Type
Low-pass
High-pass
Band-pass
Set the filter to
low-pass filtering
Set the filter to
high-pass filtering
Set the filter to
band-pass filtering
Next 2/2
----
Go to next page
