Dual Time Base Function
The dual time base function is similar to window
extension but there is a fundamental difference In
the window extension mode you can magnify the
waveform times whereas in the dual time
base mode you can magnify details of the
waveform being observed by thousands of times
In effect the main time base storage depth is
increased by thousands of times.
The dual time base menu and its operation are as
follows :
: The Math function is disabled in the dual time
base mode.
.
,
.
,
* Note
100

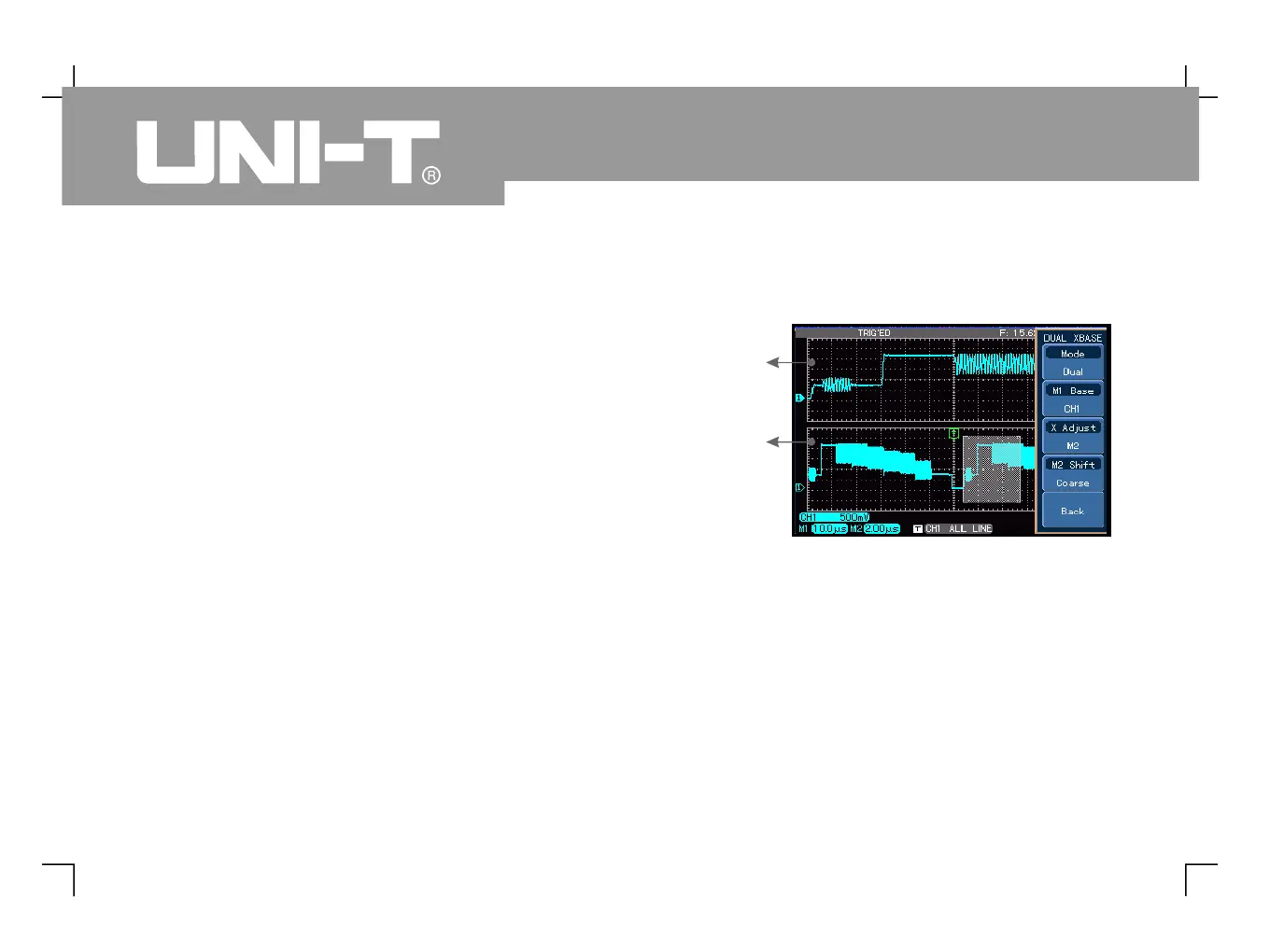

Figure 2-15 Dual time base
Delayed time
base M2
Main time
base M1
