Unical modulex 360 User Manual

11
fig. 3
2.2 - INSTALLATION
2
2.1 - INSTRUCTIONS FOR IN-
STALLATION
The MODULEX boiler is foreseen for the
I
2H
gas category and shall be installed
in compliance with the latest regulations
or rules in force.
IINSTRUCTIONS FOR
INSTALLERS
2.2.1 - PACKING
The MODULEX boiler is delivered into a
strong carton box, complete of pallet (in
order to easily transport the boiler up to
the nearest point of installation place. The
procedures for unloading the boiler are
shown into the figure 3.
Remove both straps and finally the card-
board box from above, making sure the
product is intact. The packing elements
(cardboard box, straps, plastic bags,
etc…) shall not be left to children’s
hand since they may be dangerous.
For the pallet removal is necessary to lift
the boiler: it’s necessary to use a jib cra-
ne (like shown into the figure 3), in order
to avoid of damage the pressure
switches, gas valves or electric cables.
- Remove the jacket and prepare the
sling with the bands “A” (fig. 3) by taking
care of let the bands pass internally of
flow, return and gas manifolds.
- Bind the bends to the jib; during this
step be particularly careful.
Inside the packing,
on the rear part of the boiler, for Mo-
dulex 360 – 450
on the front part of the boiler, for Mo-
dulex 540 – 630
you can find the smoke chamber, con-
taining:
- a plastic bag containing:
• 3 gaskets (1 rectangular between
condensate tray and flue terminal, 1
square between flue socket base and
flue terminal and 1 for flue socket Ø
250 or Ø 300 mm according to the
model
• 2 bends + 1 Tee piece + 1 plastic plug,
Ø 40 mm for condensate drain.
• the screws necessary for fixing
- A plate for the jacket closing, only for
models 540-630
- The outdoor sensor
- The siphon pipe for condensate drain
on the L.H. side of the boiler:
- the R.H. side panel connected to the
L.H. side one by a thermoretractable
film.

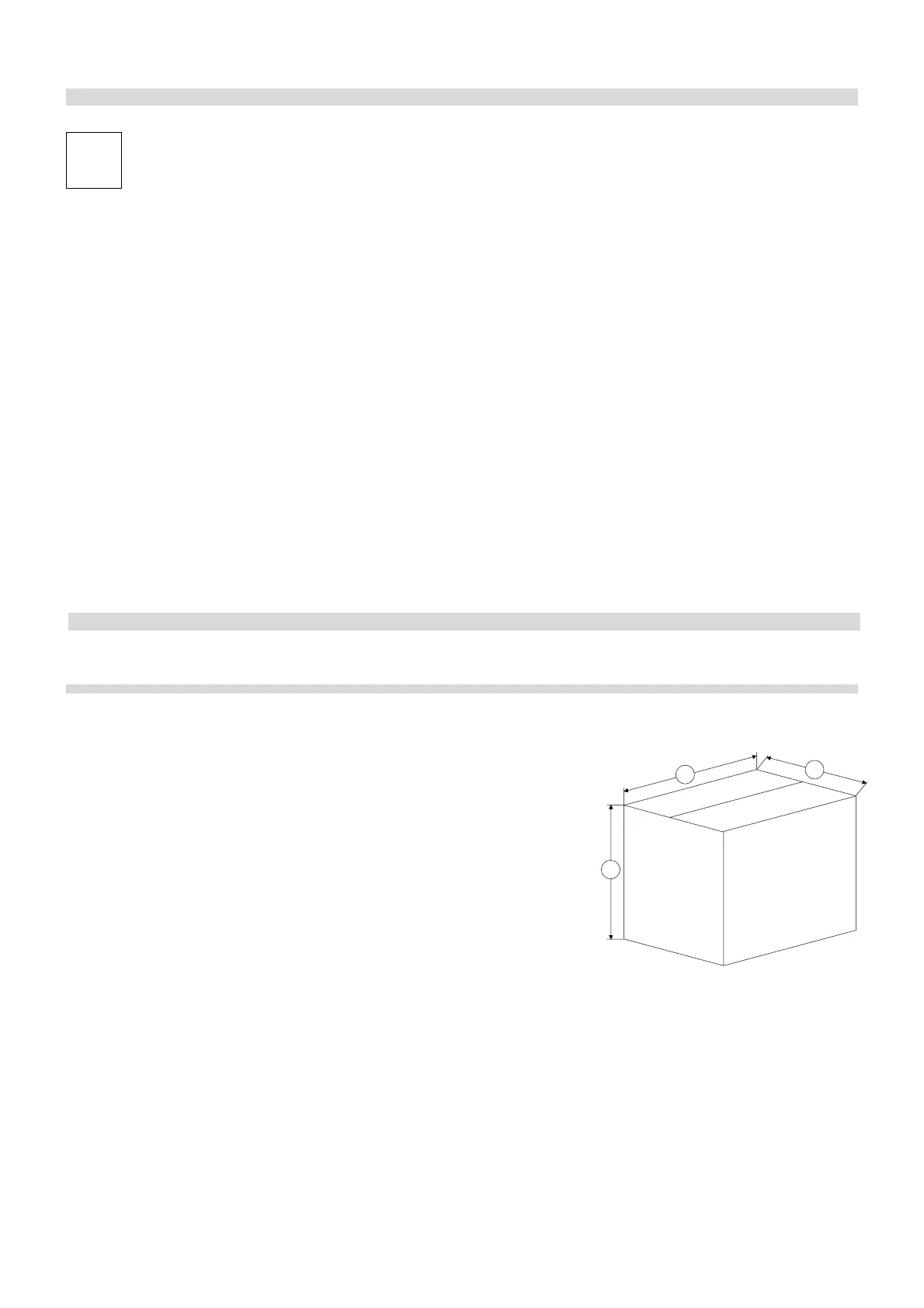

A
B
C
DIMENSIONS
modulex 360 1650 1200 1020
modulex 450 1650 1550 1020
modulex 540 1650 1700 1020
modulex 630 1650 1840 1020
A
B
C
on the boiler top:
- a plastic bag containing:
• This instruction manual
• Warranty certificate
• Hydraulic certificate
