PREOPERATIONAL CHECKS
4-7
9

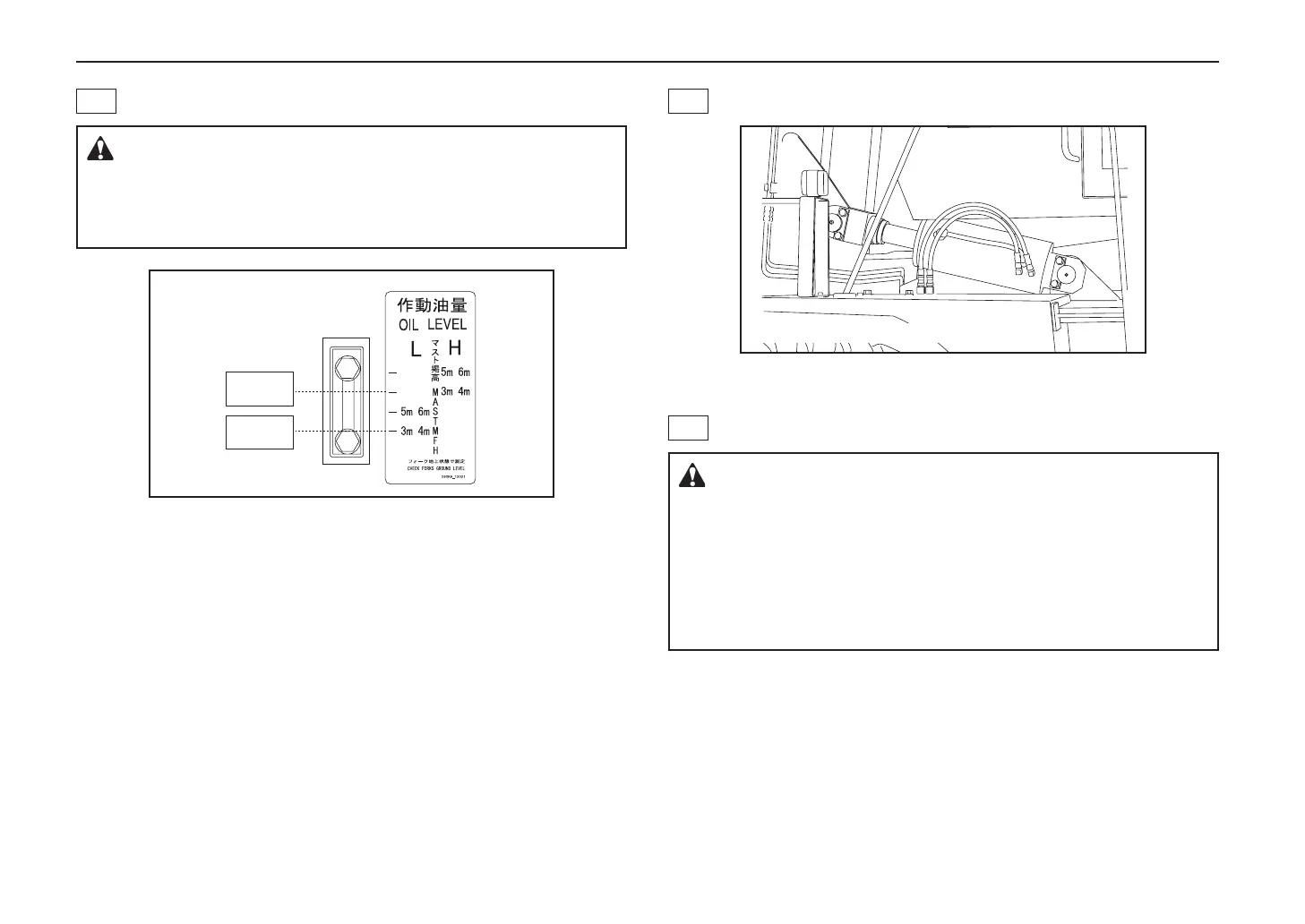

HYDRAULIC OIL LEVEL
CAUTION
The hydraulic oil level should be performed with the engine
shut off, the mast vertical, the forks on the ground or oor
surface, and the truck parked on a level surface.
L level
3 m
H level
3 m
Check the hydraulic oil level in the tank by looking at the view
gauge. The oil level should be between the “L” and “H” markings
set for each lift height value. The above sketch shows an example
of proper oil level set for a lift height of 3 meters. If level is low,
add hydraulic oil through the ll port at the center right area of the
truck.
10
HYDRAULIC OIL PIPING AND CYLINDERS
HYDRAULIC PIPING: TILT CYLINDER
Check the hydraulic piping and tilt and lift cylinders for oil leaks.
11
BATTERY ELECTROLYTE LEVEL
CAUTION
•
Do not use or charge the battery with the electrolyte
level below the “LOWER LEVEL”; otherwise the inside of
the battery deteriorates to cause a short battery life and
in the worst case it might cause an explosion.
•
Never use open ame for checking the electrolyte level.
There is a danger of causing an explosion.
