PERIODIC INSPECTION
4-29

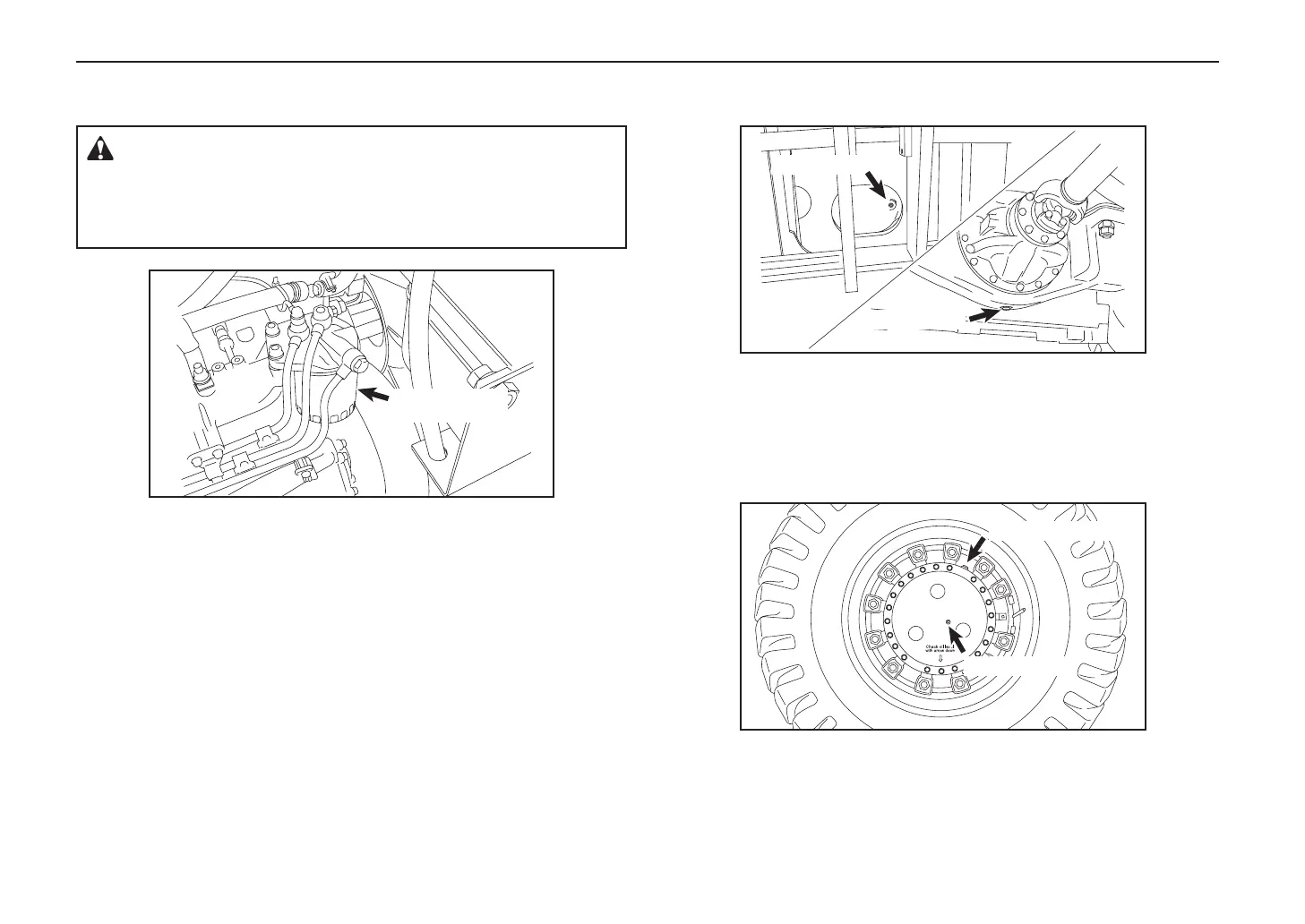

REPLACING FUEL FILTER CARTRIDGE
CAUTION
The cartridge contains fuel. Use caution not to spill the fuel
when removing the cartridge. Do not smoke or permit open
ame when handling the fuel lter cartridge.
FUEL FILTER
CARTRIDGE
Replace the fuel lter cartridge with a new one.
Whenever the fuel filter cartridge is replaced or the fuel tank is
drained, air may enter the piping to hinder the ow of fuel. Be sure
to bleed air out of the fuel system.
CHECKING DIFFERENTIAL OIL LEVEL
DRAIN PLUG
LEVEL PLUG
Check the differential oil for level and contamination.
Loosen the level plug and make sure the oil level is up to the level
plug opening.
CHECKING FINAL REDUCTION GEAR OIL LEVEL
DRAIN/FILL PLUG
LEVEL GAUGE
Check the nal reduction gear oil for level and contamination.
Position the arrow marking on the case downward. Loosen the
level gauge bolt and make sure the oil level is up to the level
gauge opening.
To Next Page
