Electrical Installation 4-63

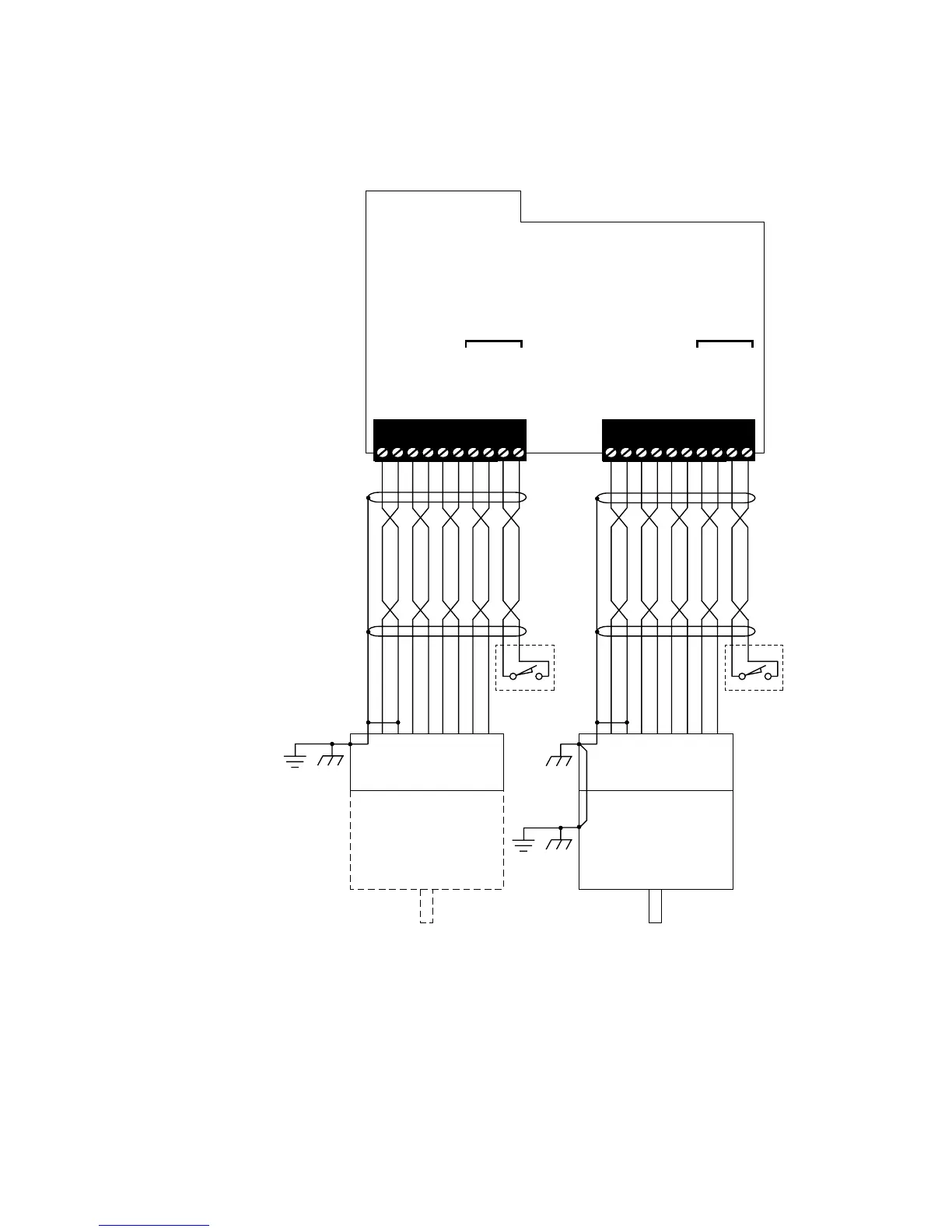

Figure 4-19Dual Encoder Interface Module Connections
(321-952)
Marker should
occur once
per revolution
Encoder
Tie encoder case
to earth ground
isolated Common
Tie shield to
and to encoder case
open this end
Leave shield
Marker should
occur once
per revolution
Encoder
Motor
PE
PE
Motor case must
be earth grounded
Tie encoder case
to motor case
isolated Common
Tie shield to
Optional Optional
and to encoder case
open this end
Leave shield
12345678910
CON3
Load Feedback
Socket
Motor Feedback
Socket
CON2
ISOLATED +5 V DC
ISOLATED COM
PGA1 +
PGA1 –
PGB1 +
PGB1 –
MARKER1 +
MARKER1 –
ISOLATED +5 V DC
ISOLATED COM
PGA0 +
PGA0 –
PGB0 +
PGB0 –
MARKER0 +
MARKER0 –
REFERENCE0 +
REFERENCE0 –
12345678910
REFERENCE1 +
REFERENCE1 –
Optional Optional
