User manual for NERO / NERO INSTANT
Page 11Version 3.2 / December 2017
ТМ
The following components are located on the rear outer wall of the vending machine.

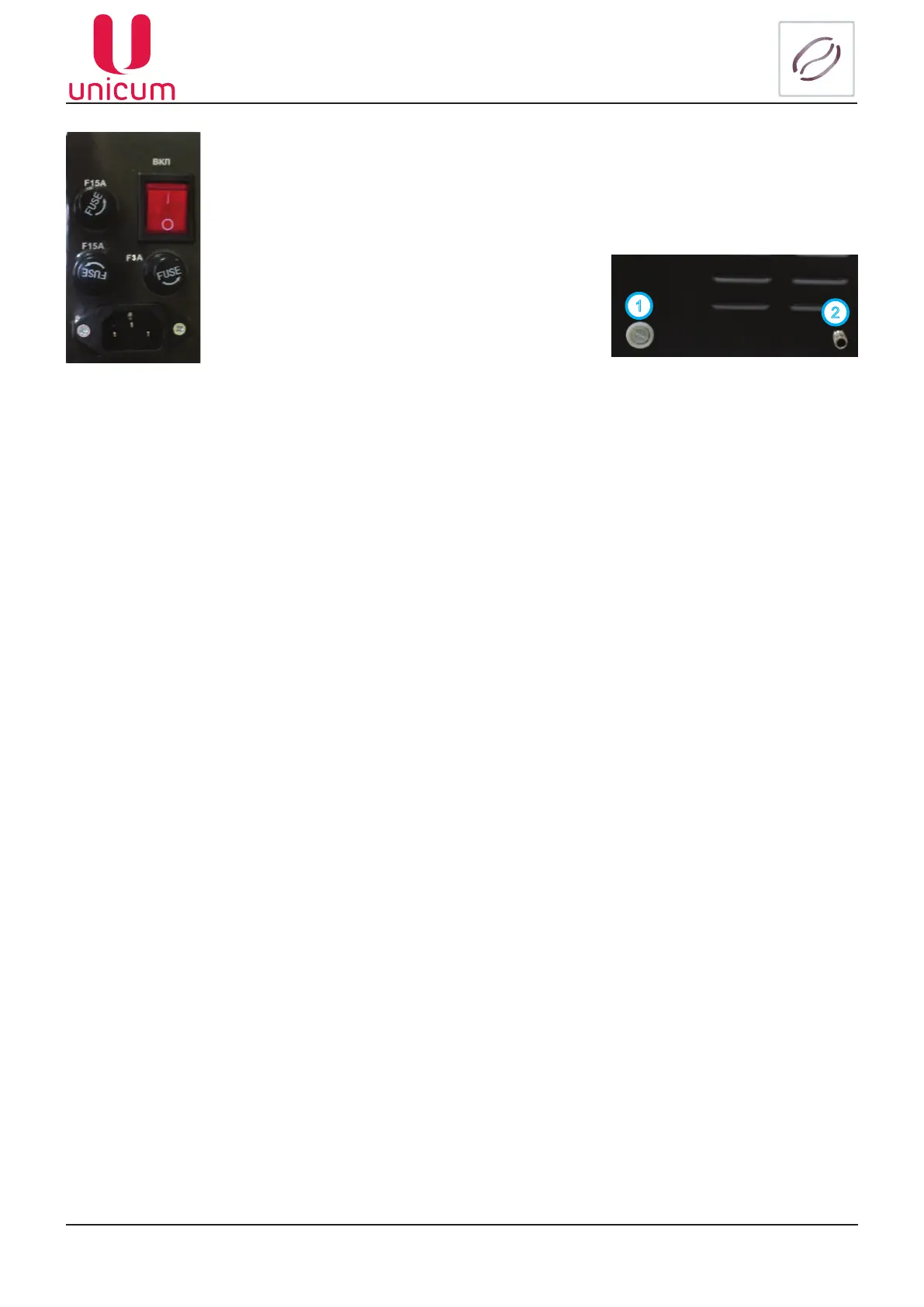

Figure 7 - Switching unit
Figure 8 - Water inlets
Power unit with switch, fuse holder and power cable connector.
The water inlets are located underneath:
1 - Valve nozzle for connection to water supply line;
2 - Pipe for water supply from the canisters/bottles.
