3.5.2 Internal components
a. Body
Following are installed inside the body: drinks preparation units, ingredients’ containers, waste contain-
ers. The vending machine’s body is divided into two sections: front and rear.
It is sufcient to open the machine’s door to access the front section (see gure 9a, b).
To access the rear section of the machine it is necessary to remove the machine’s rear panel (see gure 10).

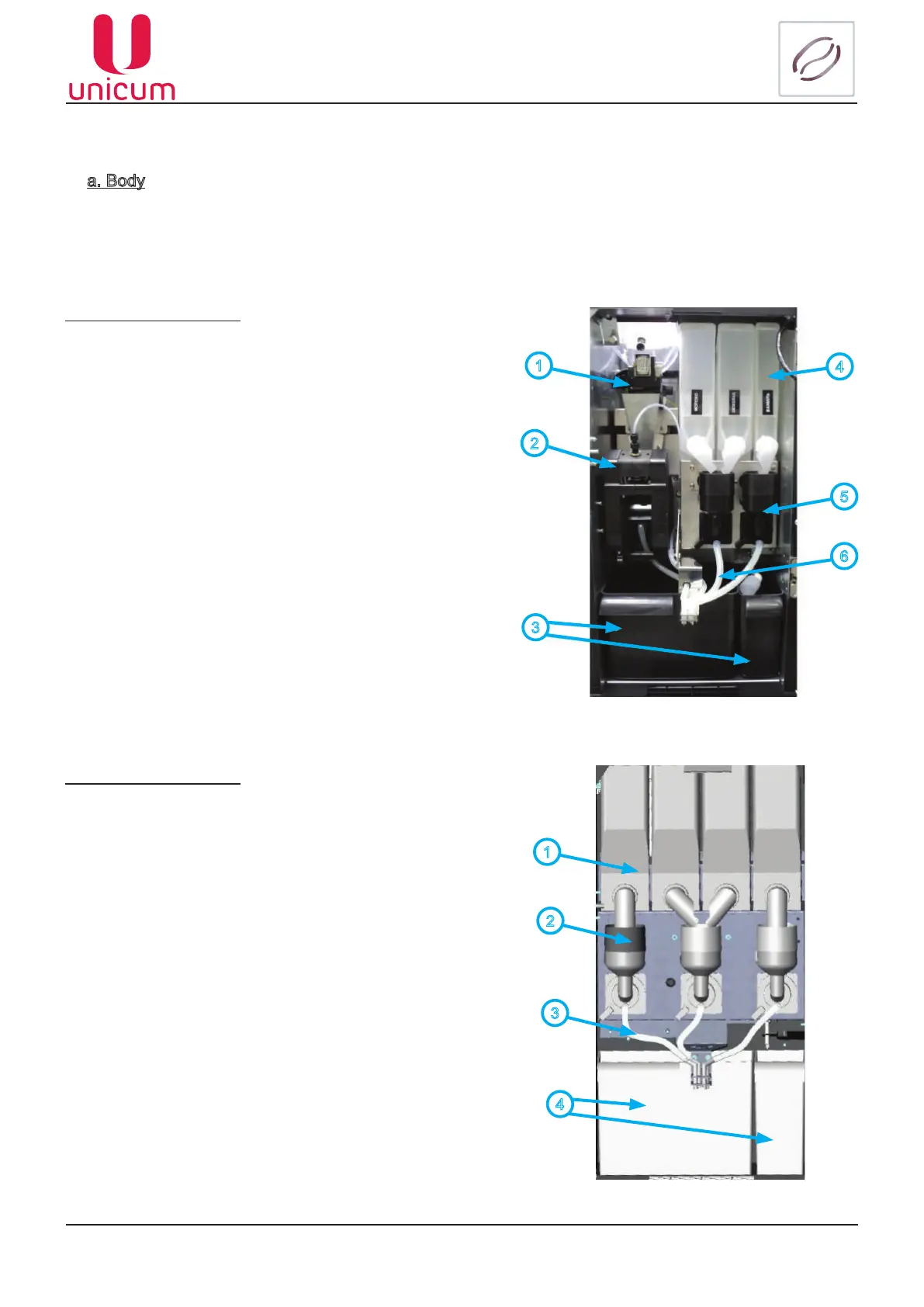

Figure 9а (description):
1. Coffee grinder and dosing mechanism;
2. Espresso group;
3. Waste containers;
4. Containers for powdered ingredients;
5. Mixers;
6. Tubes for the supply of solved ingredients, coffee and hot
water to the cup;
Figure 9а - Internal layout of NERO
Figure 9b (description):
1. Powdered ingredients containers;
2. Mixers;
3. Tubes for the supply of solved ingredients and hot water
to the cup;
4. Waste containers.
1
2
3
4
5
6
1
2
3
4
Figure 9b - Internal layout of NERO INSTANT
