3.5.11 Mixers for instant ingredients
The instant drinks, which are made of instant ingredients, are prepared in the mixers (see gure 28).
Vending machine NERO has two mixer.
Vending machine NERO INSTANT has three mixer.
Each mixer is installed and connected in front of the container with the relevant ingredient. In the NERO
and NERO INSTANT vending machines, one mixer is used for two ingredient containers.
The powder (instant ingredient) is fed by the reducer-motor from the container into the mixer’s inlet
together with hot water.
The mixer’s motor mixes the ingredient and water until a uniform mixture is obtained. For further details
see section 3.6.2 – Preparation of drinks and section 3.7.4 – Dosage of ingredients, sub-section C.

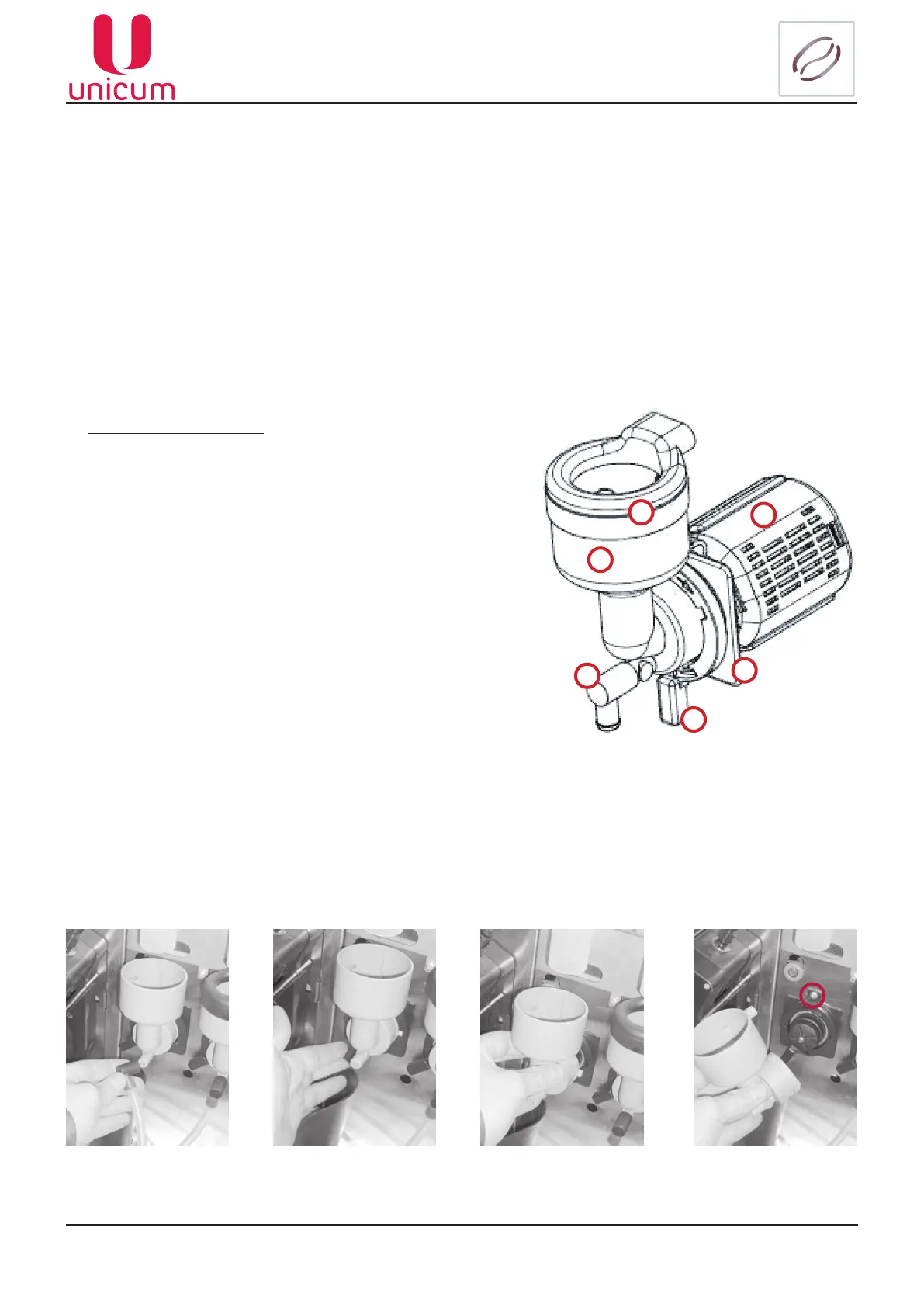

Figure 28 (description):
Figure 28 - Mixer
1. Disconnect the drink dispensing pipe (see gure 29);
2. Turn the handle on the funnel xator downwards (see gure 30);
3. Carefully pull out the funnel (see gure 31 and 32);
4. The assembly procedure is performed in the reverse order.
When needed you should remove the funnel and other plastic parts of the mixer, for planned cleaning
and perform the actions in the following order:
1
2
3
4
5
6
Figure 29 Figure 30 Figure 31 Figure 32
To remove the mixer’s motor, loosen the screw, which holds the mixer to the bracket (see gure 32), and
remove the motor. After that disconnect the power connector.
1. Lid on mixer’s inlet
2. Mixer’s motor
3. Mixer’s funnel
4. Adapter for drink dispensing pipe
5. Mixer funnel xator
6. Exhaust hole gasket
