3.5 The vending machine’s components
The NERO and NERO INSTANT vending machines come in the shape of rectangular metallic boxes
of the following dimensions (max):
- Height 800 mm (for NERO);
- Height 840 mm (for NERO: with installed coffee bean container);
- Height 740 mm (for NERO INSTANT: with cup retainer);
- Breadth 385 mm;
- Depth 480 mm.
The body houses various functional units of the vending machine. There is the following equipment
installed on the inner side of the door that closes the vending machine:
- Main board (controller);
- Sensor keypad board (circuit);
- Modem (optional);
- Smart Card reader (optional);
- Display.
All the equipment installed on the inner side of the door is protected by metallic casing.
3.5.1 The vending machine’s exterior

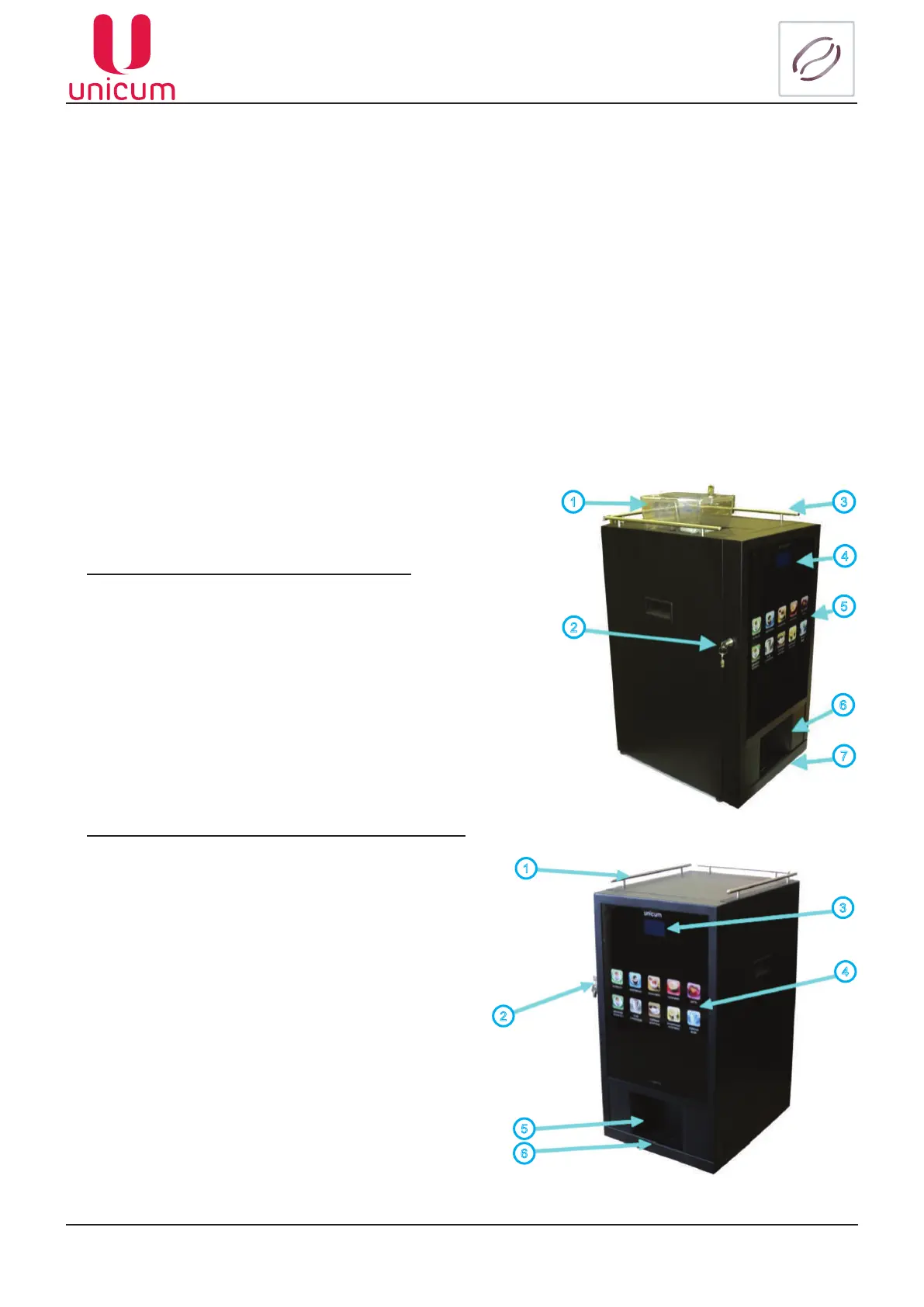

ExteriorlookforNERO(seegure5)
1. Coffee bean container with lock;
2. Machine door lock;
3. Cup retainer;
4. Graphic display;
5. Drink selection sensor keypad;
6. Drink disposal ow;
7. Tray
Figure 5 - Exterior look for NERO
1
2
3
4
5
6
7
ExteriorlookNEROINSTANT(seegure6)
1. Cup retainer;
2. Machine door lock;
3. Graphic display;
4. Drink selection sensor keypad;
5. Drink disposal tray;
6. Tray
Figure 6 - Exterior look for NERO INSTANT
1
2
3
4
5
6
