Getting started
Contents of the package
• One Gigaset S850 base station,
• One power adapter for the base station,
• One phone cable,
• One handset,
• One battery cover,
• Two batteries,
• One belt clip,
• One user guide
Connecting the base station

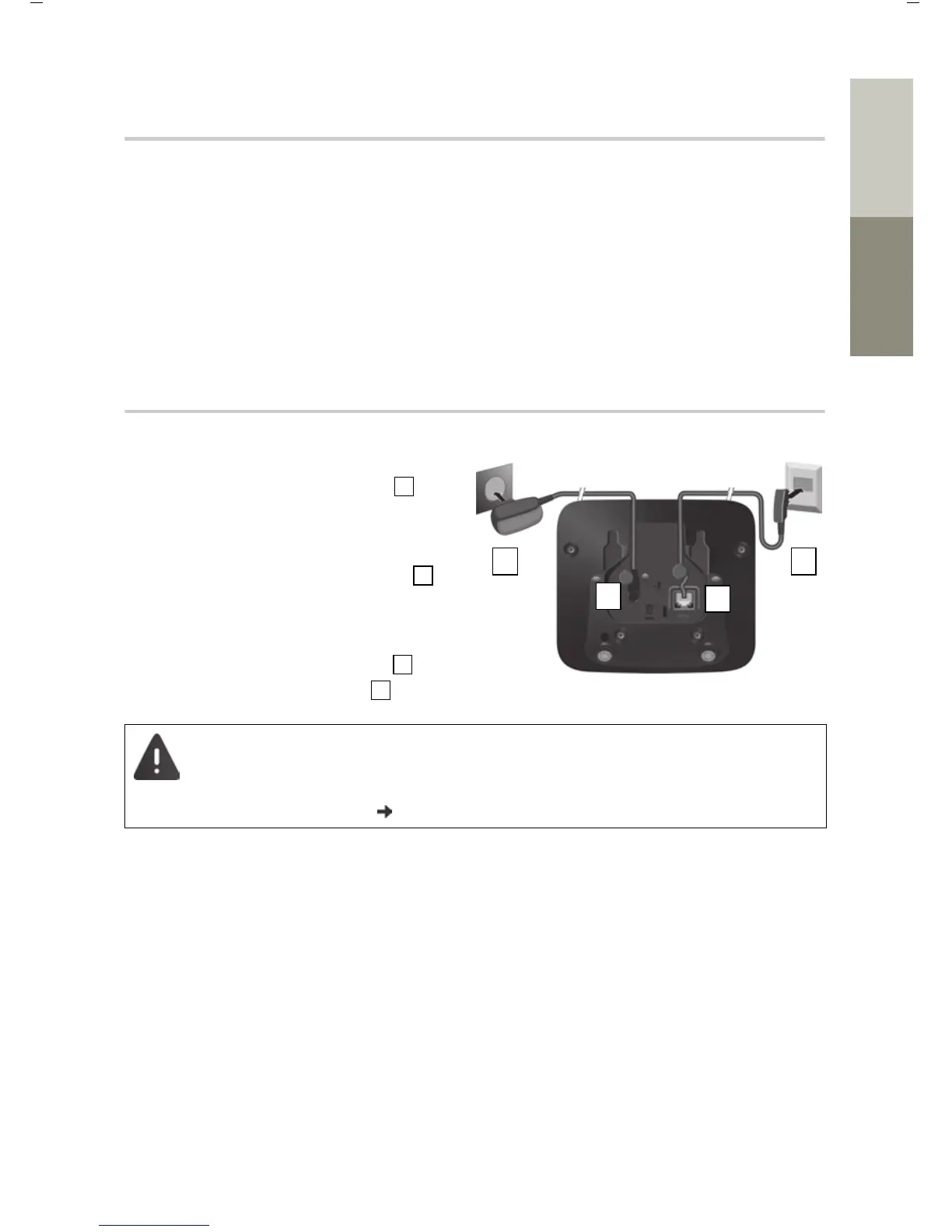

¤ Insert the phone cable (TAE connection
cable) into the connection socket at the
rear of the base station and feed under the
cable protection.
¤ Insert the power cable for the power
adapter into the connection socket at
the rear of the base station and rotate the
right-angle plug under the cable protec-
tion.
¤ First connect the power adapter .
¤ Then connect the phone jack .
4
1
3
2
1
2
3
4
The network cable must always be connected in order to function, as the phone will
not operate without a power supply.
Only use the supplied network cable and phone cable. The pin connections on
phone cables may vary ( pin connection can be found in the appendix).
