Unify OpenSpace CP600 User Manual

Startup
A31003-C1000-M102-5-76A9, 09/2017
38 OpenScape Desk Phone CP200/CP205/CP400/CP600 HFA, Administration Manual
inbetriebnahme.fm
Quick Start

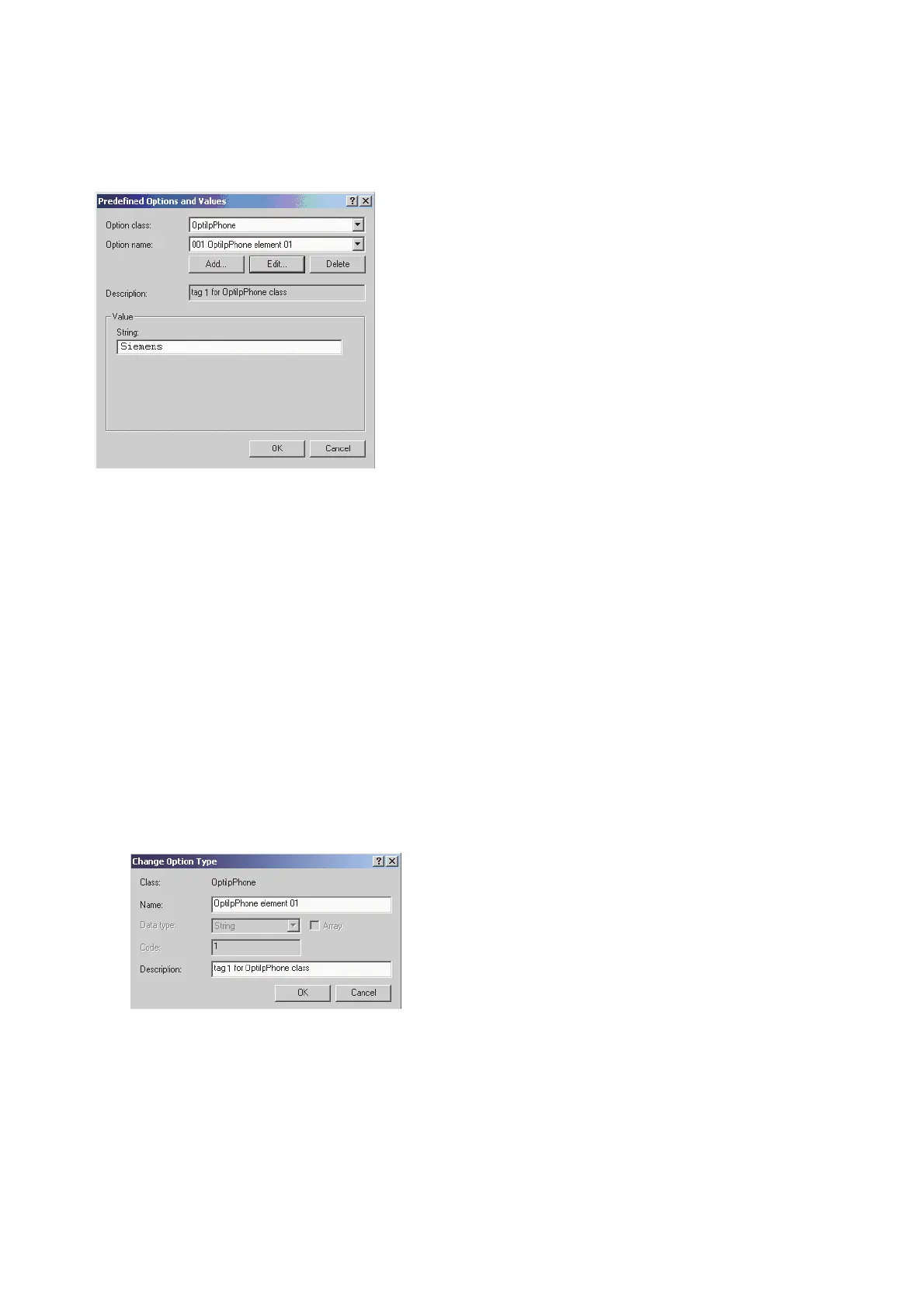

7. In the dialog, select the previously defined OptiIpPhone class and click on Add... to add
a new option.
8. Enter the following data for the new option:
1. First Pass: Option 1
• Name: Free text, e. g. "OptiIpPhone element 01"
• Data type: "String"
• Code: "1"
• Description: Free text.
2. Second Pass: Option 3
• Name: Free text, e. g. "OptiIpPhone element 03"
• Data type: "String"
• Code: "3"
• Description: Free text.

Unify OpenSpace CP600 Specifications

General

Connectivity	10/100 Mbps Ethernet
Audio	HD Voice
Power	PoE (802.3af) or AC adapter
Protocols	SIP
Audio Codecs	G.711, G.722, G.729, iLBC, Opus
Speakerphone	Full-duplex
Microphone	Built-in
