Handset Description
User Interface
14 Sound off key Used for turning on/off audible signals in Idle mode, silencing
the ring signal at incoming calls, and turning on/off the micro-
phone during calls.
15 Tactile indicator Indicates the center of the keypad.
16 End key
On/off key
Used for ending a call, returning to Idle mode, and by a long
press for switching the handset on/off.
17 Color display 2.0-inch TFT full color display with backlighting.
18 Headset connector
3.5–mm connector used for connecting a headset.
3
It is pro-
tected against dust by using the headset connector cover.
User Interface
The interface of the handset is divided into two separate screens:
• Idle mode is the main screen of the handset, where you can find information about the cur-
rent date, active connections as well as the name of the system to which the handset is con-
nected to and the Owner ID. For the details, refer to the Display Icons and Text on page
11.
• Main menu gives you a quick access to the functions, such as Messaging, Call, Contacts,
and etc.
For the whole list of functions and their use, refer to the Menu Operation on page 46.
To get the detailed information about the whole Main menu structure, refer to the Menu Tree
on page 73.

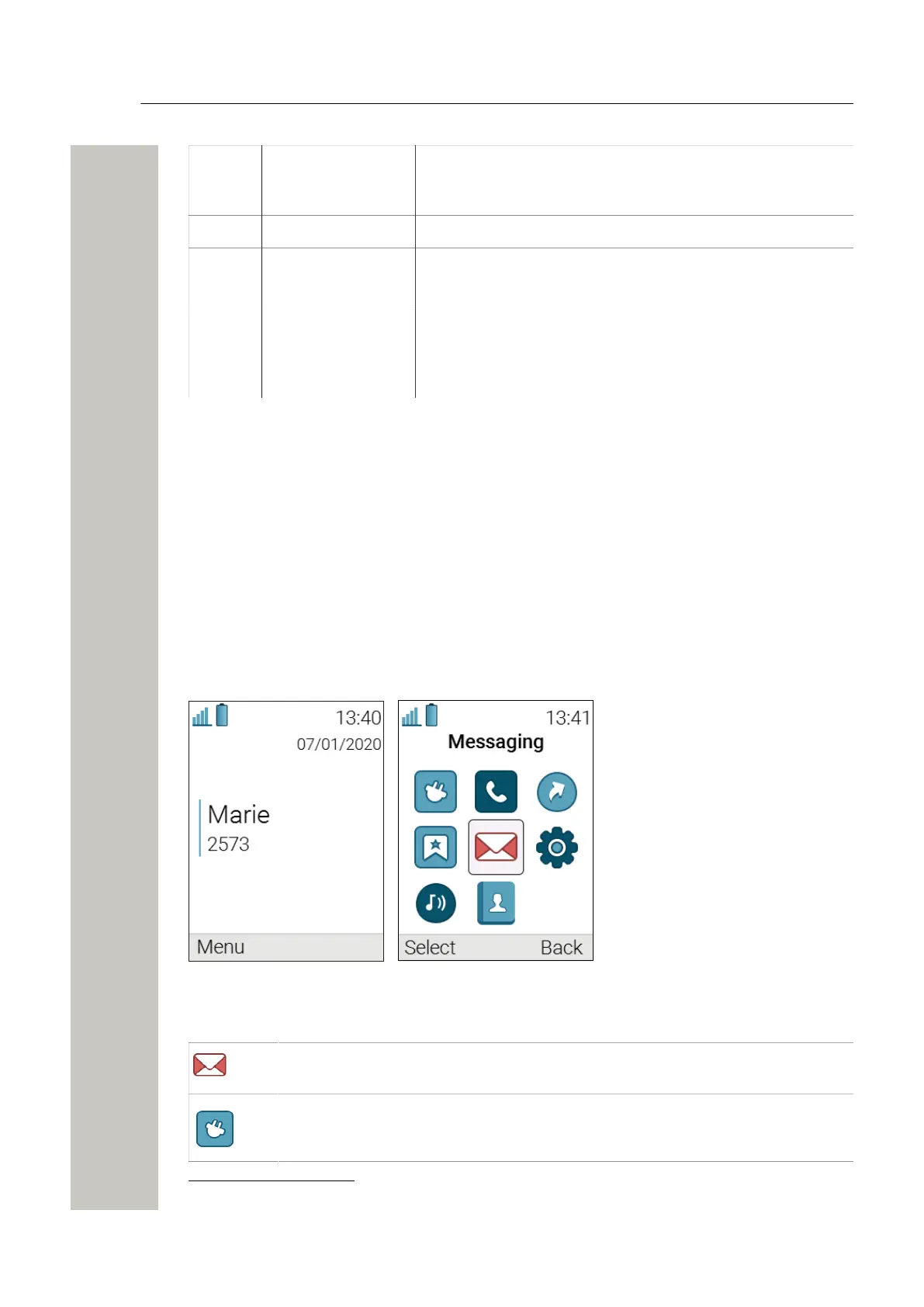

Figure 1: Idle mode (left) and the Main menu (right)
Table 1: Main menu overview
The Messaging menu contains message handling functionality, such as reading
and writing messages.
The Connections menu contains bluetooth connection, headset selection, net-
work selection, and in charger behavior selection.
3
Compatible with wired headsets used for Android.
A31003-M2000-U109-01-7619, 29/04/2020
10 OpenScape WLAN Phone WL4, User Manual
