Unilumin Upad III User Manual
5
of 1
of 1 rating
79 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
U
padIII pr
oduct m
anual
www
.unilumin.cn
9

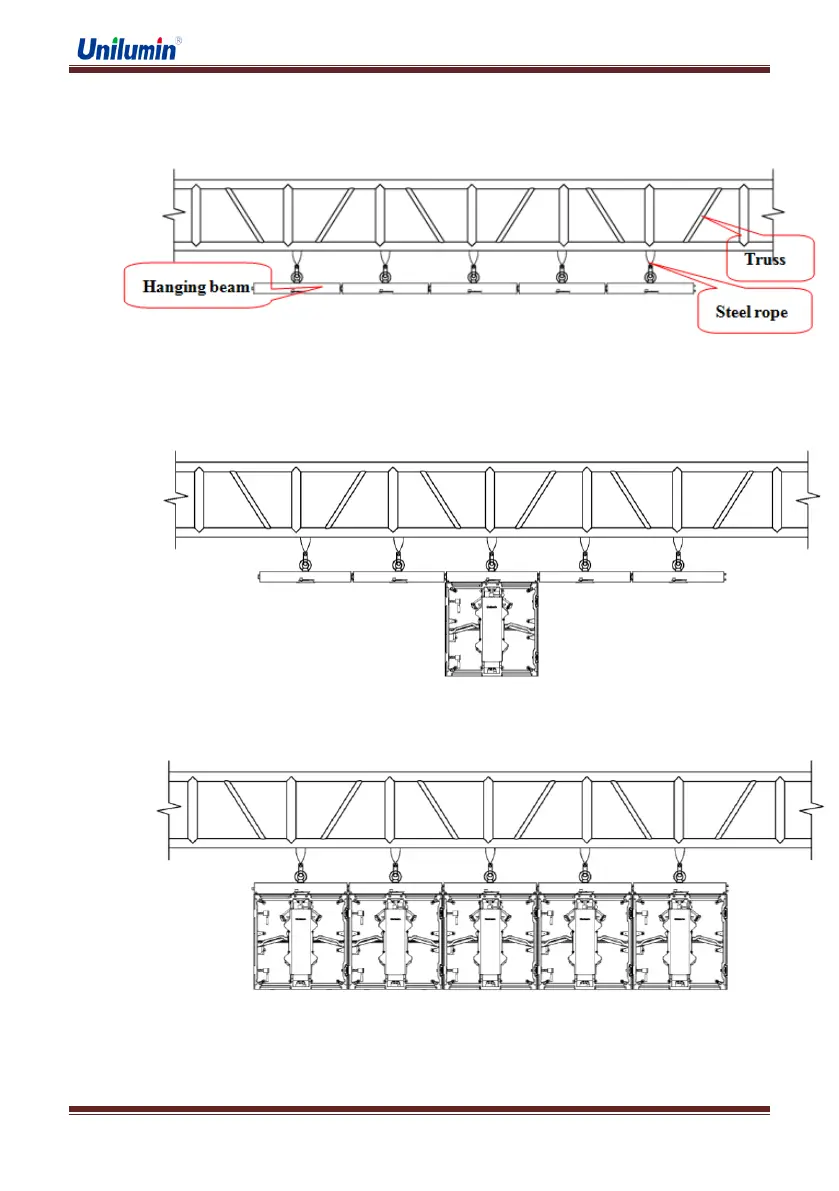

2.2.2Hositing i
nstallation
1)
Adjust the steel wire rope to keep hanging beam level, to prevent the display
tilt;
Fig 2-2
【
Fix Hanging Beam
】
2)
Install first horizon cabinets Mid to L-R side in turn;
Fig 2-3
【
Install Cabinets
】
Fig 2-4
【
Install Horizon Cabinets First
】
16
18
Table of Contents
Default Chapter
6
Table of Contents
6
1 Product Introduction
9
Features
9
Cabinet Appearance
9
Specification
10
Indoor Product Specification
10
Outdoor Product Specification
11
Application
12
2 Installation and Wiring
13
Package Check-Out
13
General Installation
13
Floor Installation
13
2Hositing Installation
17
Product Wiring
19
Common Wire
19
Signal Wiring
20
Power Wiring
21
Flight Distribution Box Show
22
3 Display Control-Setting
24
Current Detection
24
Display Software Setting
24
Start-Up
24
Software Installation
25
Display Setting
25
Brightness Setting
30
Calibration
33
Set Coefficients for a New Scan Board (Receiving Card)
35
Set Coefficients for a New Module
38
Prestore Picture
40
4 Display Play-Setting
42
Unistudio Play Mode
42
Playing Setting
43
Display Window Setting
43
Start Setting
44
The Edit of a Professional Broadcast Scheme
45
Edit Segment
45
Editing Program Page
46
Editing Window
48
Editing Media
51
Playing
54
Save and Open
56
5 Display on / off Step and Maintenance
57
Switching on Power Sequence
57
Switching off Power Sequence
57
Maintenance Method
57
Maintenance Method if Not Using for a Long Time
58
Set up Prestore Picture
58
Open up Aging Test
59
Display Brightness and Aging Time-Table
60
6 Troubleshooting and Parts Replacement
61
Trouble Shooting
61
The Whole Display Black out
61
Display Output Image Is Incomplete or Incorrect Position
61
Display Output Image Blinking
61
Individual Cabinet of the Display Showing Wrong Images or Flickering
62
Individual Cabinet Does Not Light
62
Certain Row of the Module or Individual Module Does Not Light
62
Main Parts Replacement
63
Module Replacement for Indoor Product
63
Power Supply and Receiving Card Replacement for Indoor Product
65
Module Replacement for Outdoor Product
68
Power Supply and Receiving Card Replacement for Outdoor Product
71
Angle Block Replacement
73
7 Package Transportation and Storage
74
Package
74
Transportation
74
Storage
74
