1. Product Introduction
The series of UpadIII is high-end rental products with high-precision die-casting
aluminum design, lightweight ultra-thin, automatic cooling structure without fan design, good
heat dissipation, zero noise; cabinet with standard cabinet size, High-precision seamless
splicing, power signal interface outward 45 °, easy to plug; SMD lamp with black lights, wide
viewing angle, high contrast, soft images; box and box with wrench-type card lock connection,
convenient hand operation, magnetic suction auxiliary assembly between cabinets enable one
person handling, easy disassembly, module with calibration data storage function, convenient
on-site automatic calibration module data, to meet the fixed installation, seat installation,
lifting and other needs, to adapt to different application environments.
1.1 Features
1) Fully enclosed die casting aluminum, ultra-thin, high stability.
2) Low radiation, ultra-quiet, more safety used.
3) Wide color gamut, free adjustment on brightness and color temperature, Suitable for
various occasions.
4) Hoisting, floor installation and other kinds install style.
5) 45°outgoing power supply and signal plug interface design.
6) Seamless splicing for concave and convex, support flexible splicing between concave 5°
and convex 10°.
1.2 Cabinet Appearance

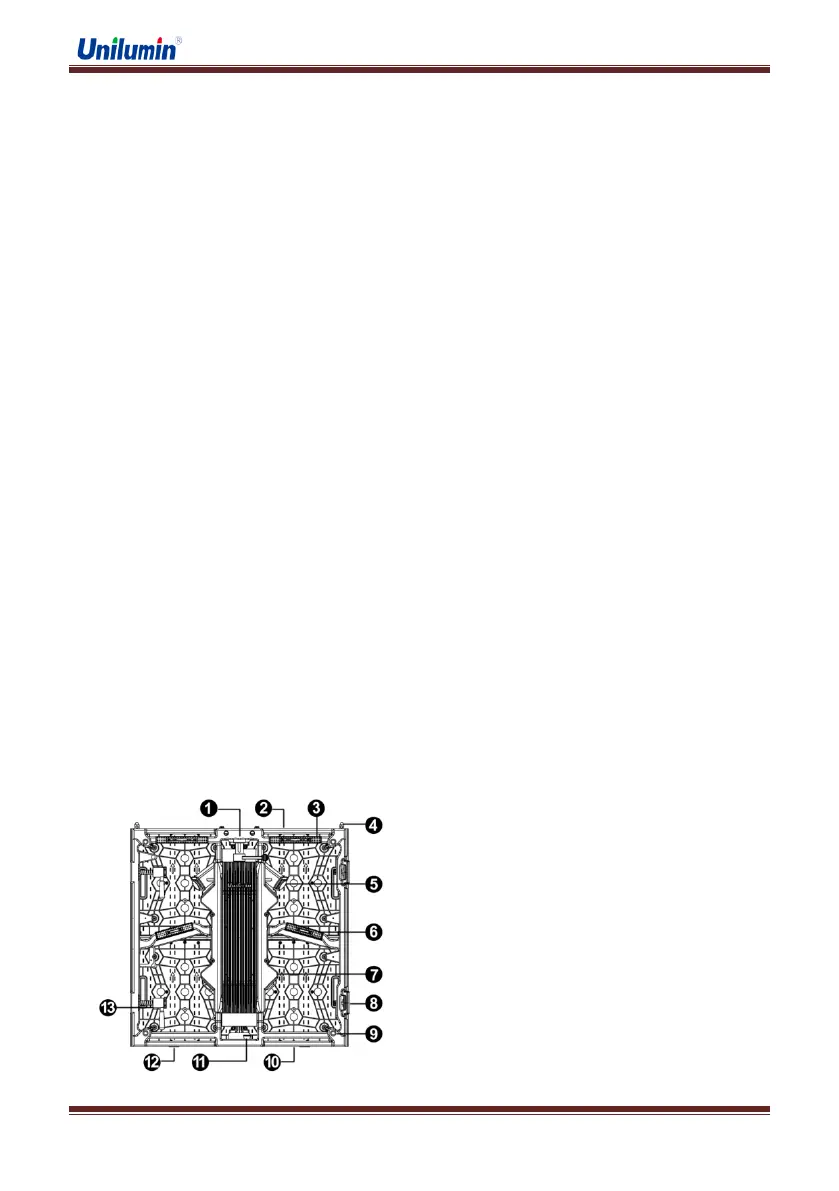

Fig 1-1【Cabinet appearance】
1．Hanging latch
2．Top magnet
3．Cabinet handle
4．Locating pin
5．Signal socket
6．Cabinet handle
7．Power socket
8．Angle block
9．Screw hole
10．Bottom magnet
11．Locking plate
12．Edge protection pin
13．Left-right lock
