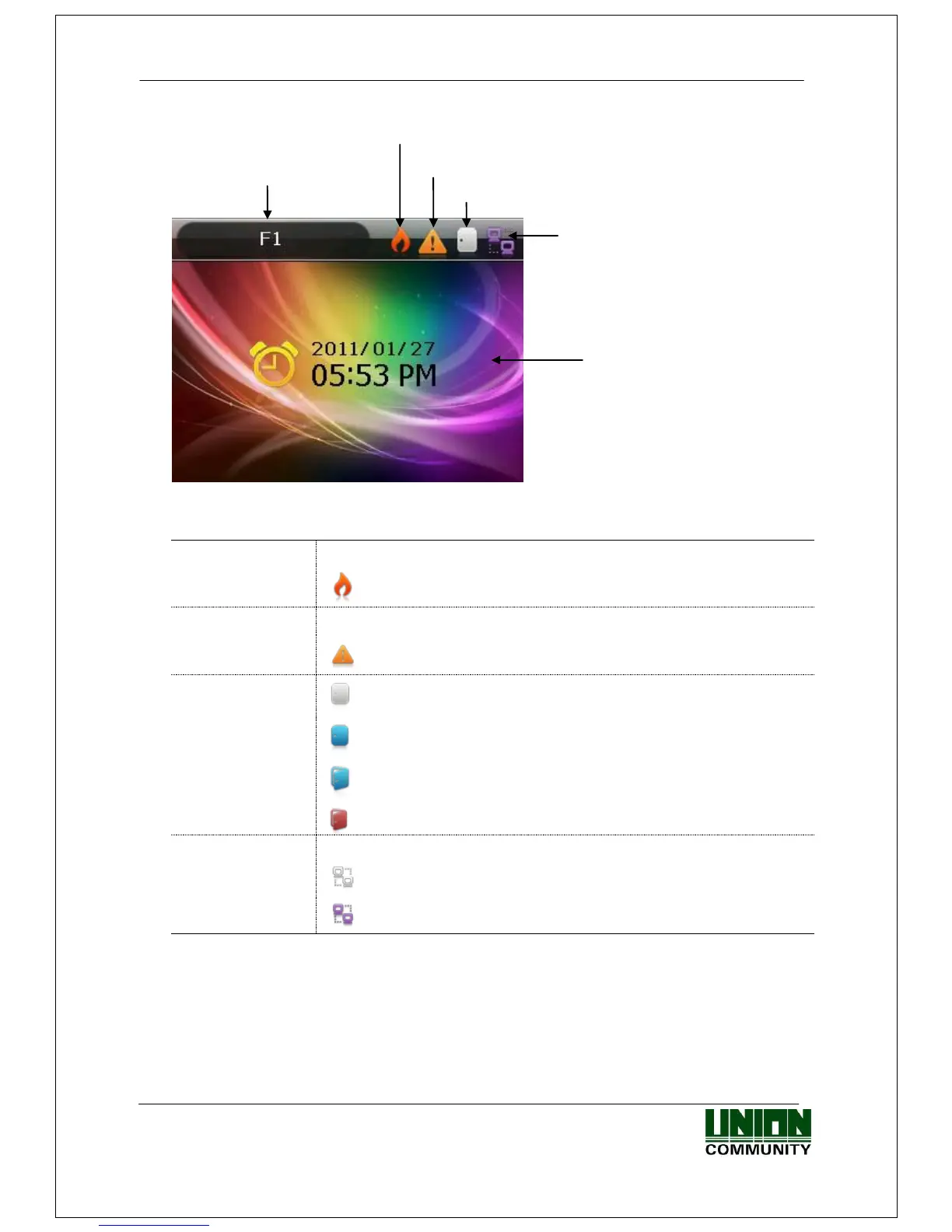

1.3. Screen Description (During Operation)
1.3.1. Icons Shown During Operation
① Fire Detection
None
: Normal
: State when fire is detected by a fire sensor (subject to the
appropriate fire sensor connection).
② Warning
None
: Normal.
: Abnormal state when terminal is disassembled or door has
encountered a problem.
③ Door Status
: Door status is unknown.
: Door is closed.
: Door is open.
: Forced door open / Door related error
④ Connection of
Server
None
: LAN cable is not connected.
: LAN cable is connected, but not yet to the server.
: Connected with the server.
④Connection with Server
Access Mode
Current Time
③Door State
②Warning of Terminal Disassembly, etc.
① Fire Detection
