Unitech MS920 User Manual

2
3. Getting Started

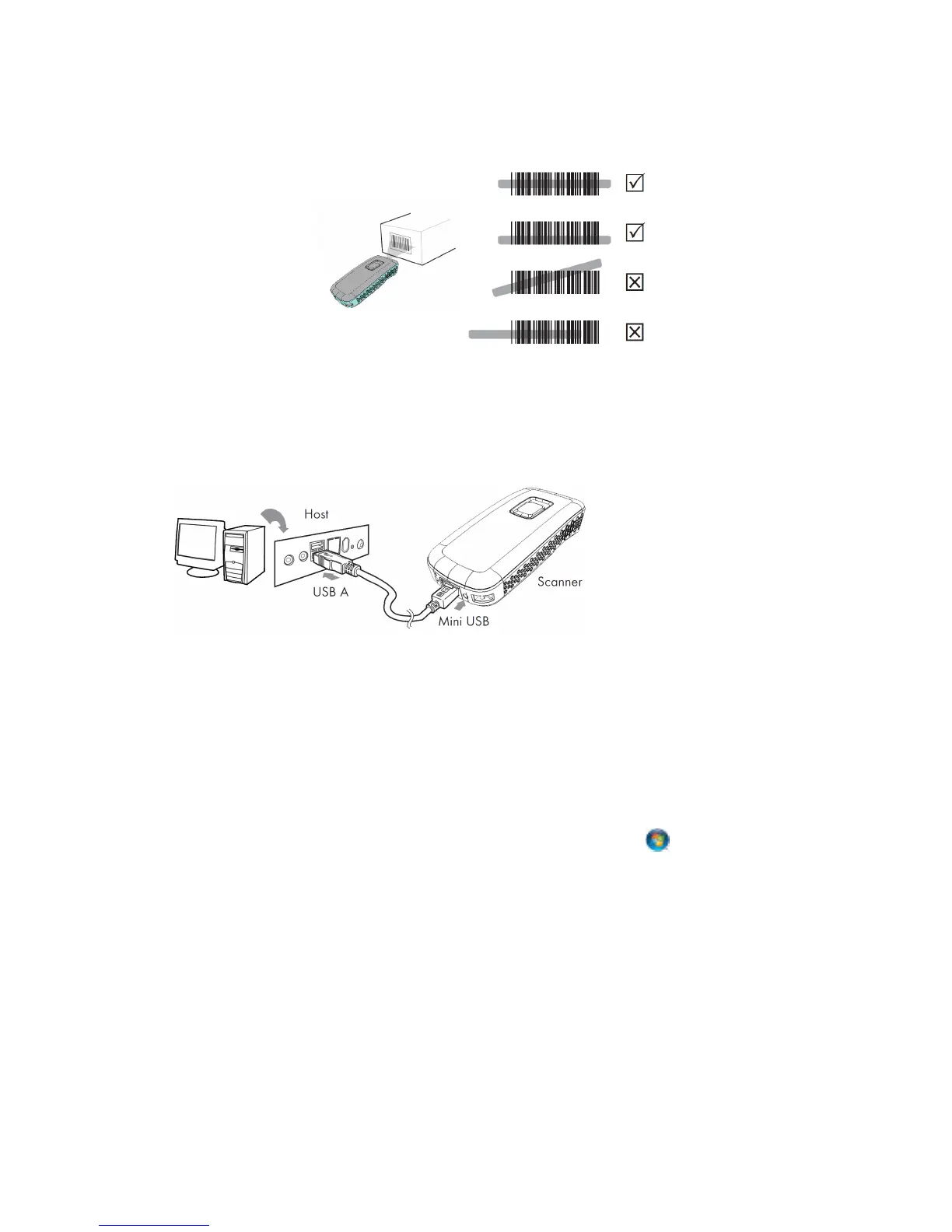

To scan a barcode, make sure the aiming beam crosses every bar and space
of the barcode.
BATTERY CHARGING
1. Flip up the rubber cover to expose the mini USB port on the scanner.
2. Insert the mini USB connector into the port on the scanner and the standard
USB connector of the USB cable into a USB port on the host PC.
Pairing With PC/Notebook For The First Time
PC (HID mode)
Following steps are based on Microsoft Windows 7.
1. Use MS920 to scan barcode “HID”.
2. Open Devices and Printers by clicking the Start button , and then, on
the Start menu, clicking Devices and Printers.
3. Click Add a device, and then follow the instructions.
4. Click the Bluetooth enabled device (Unitech BT XXXXXX) you want to add
to your computer, and then click Next. If you don't see the device you want to
add, make sure the device is turned on and discoverable. If you just turned on
the device, it may take Windows several seconds to detect it.
For Bluetooth 2.0 (or lower) pairing, you have to use MS 920 to scan function
barcodes and numerical “Bluetooth Pincode” according to the direction shown
on the screen of the PC the MS 920 is pairing to during the pairing procedure.
Numerical barcodes and other function barcodes for Bluetooth Pincode entry
are listed on the reverse side of this sheet.

Unitech MS920 Specifications

General

Brand	Unitech
Model	MS920
Category	Scanner
Language	English
