Laser System Leveling
Once the laser system is in place, you should lock the casters and level the laser system using the leveling
nuts provided on the laser system casters. This will ensure the laser system is not twisted due to unlevel
floors which can affect laser beam alignment and Z axis binding.

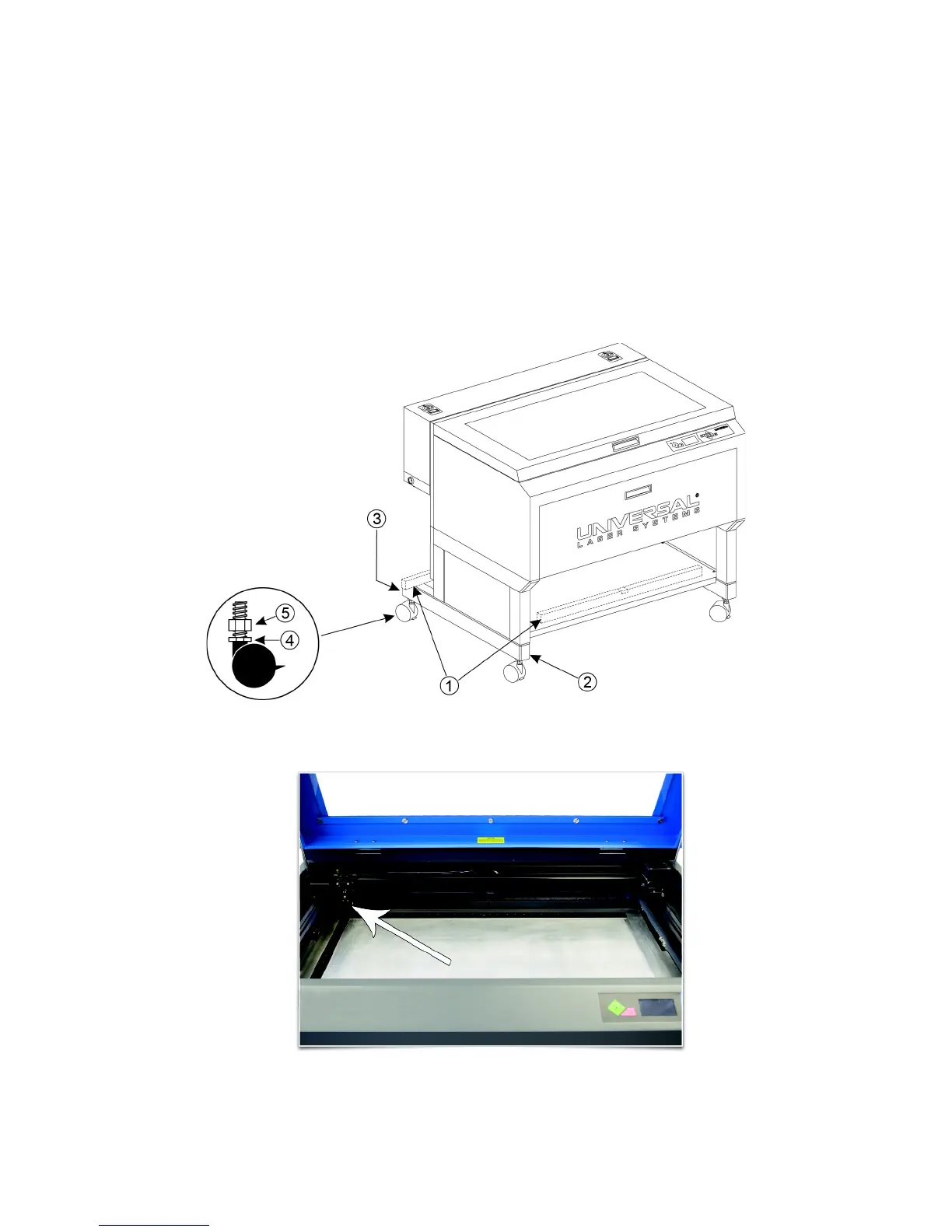

1. Place a bubble level (1) across the front (2) and rear cart legs (3). Adjust the caster height using the
adjustment nut (4) until both the rear and front of the cart are level with respect to each other. Once the
system is level, secure all casters by tightening the locknut (5) up against the cart leg.
2. Remove any remaining packing materials and accessories from inside the machine including items such
as elastic bands that may have secured the motion system in place for shipping.
3. To check level in the machine, move the Focus Carriage by hand to the upper left corner.
39
