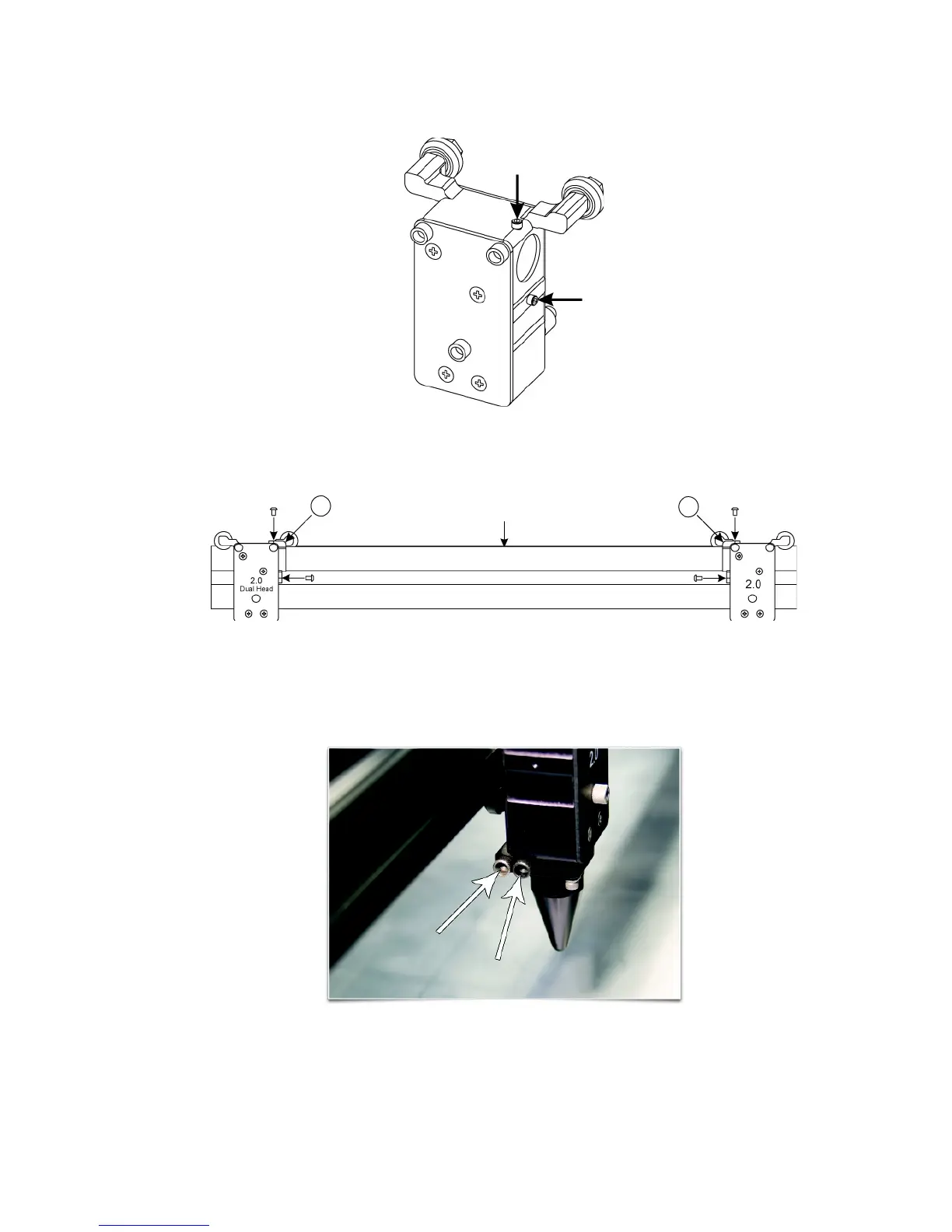

4. Locate the threaded mounting holes on the right side of the Dual Head carriage shown below and the
similar threaded mounting holes on the left side of the primary carriage.
5. Pick up the Dual Head tube and note the “L” (Left) and “R” (Right) markings. Install the tube using the
supplied mounting screws as shown below. Installation is now complete unless you have the Dual Head
Air Assist Option in which case you can proceed to optional steps below.
Dual Head Air Assist Installation
a. If you have the Dual Head Air Assist option, locate the two black thumbscrews on the left side of the
primary carriage and remove them.
b. Insert the brass tube with bracket into the hole (1) where the rear thumbscrew was removed. Use the
other thumbscrew (2) to secure the bracket in place.
93
