Page 14
49379902 Rev. G Radial 8 & 88 Operation Reference Manual
This Document Supports IM-UPS 5.0 and Higher
Board Handling (slots 8 and 9)
Optional, see the Single Head Board Handling System Operation manual.
Service Disconnect
The service disconnect is a two-position circuit breaker that removes or
applies AC power to the machine and all attached devices.
NOTE
To maintain maximum operating system performance on machines that
run continuously, perform an OS/2 shutdown and power cycle the
machine (power off, wait 6 seconds, and power on) once a week.

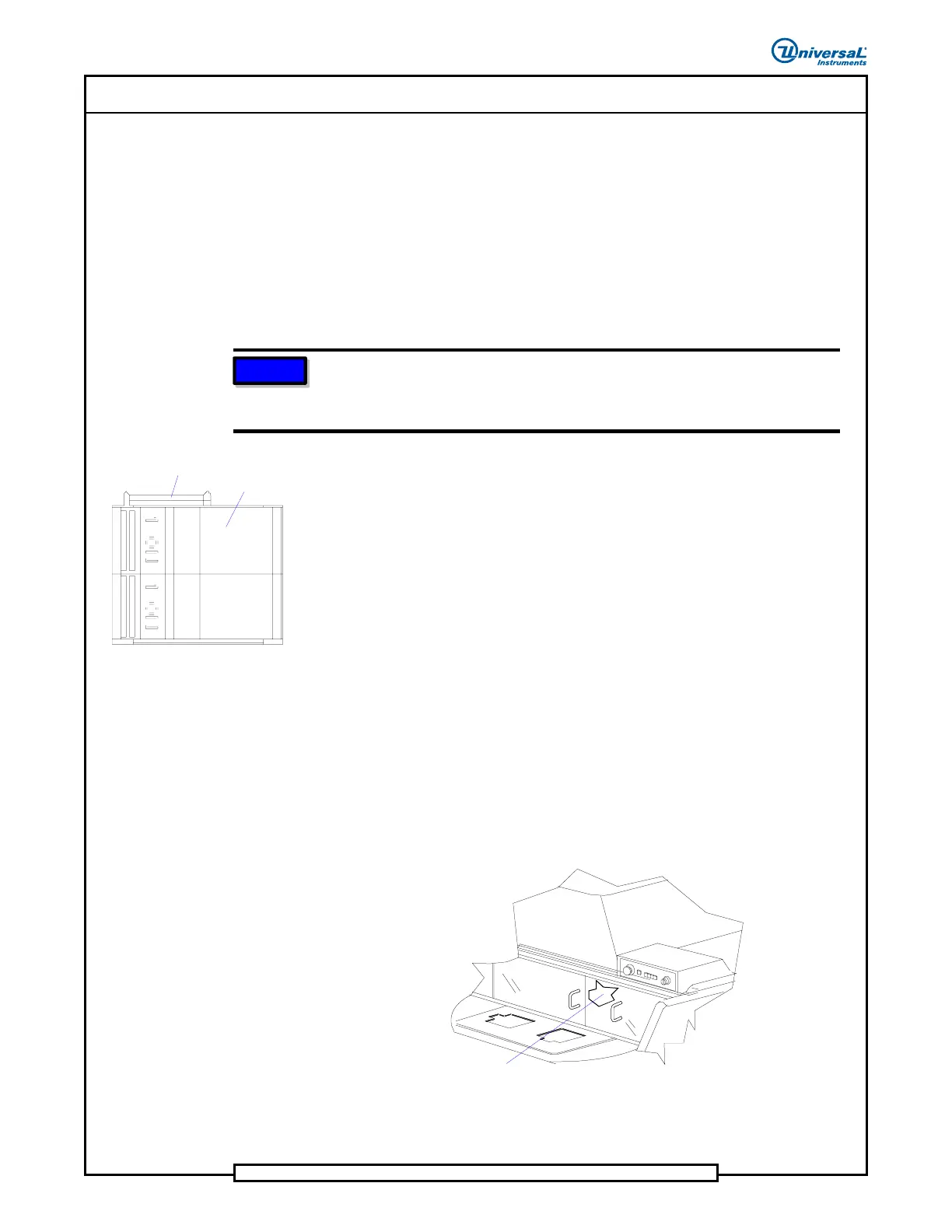

Electrical Lockout / Tagout
Bracket
Circuit
Breaker
Service Disconnect
When the service disconnect circuit breaker is in the OFF position, a locking
device can be installed through a hole in the bracket above the circuit
breaker. This lock will prevent power from being accidently switched ON.
Refer to company policy regarding the proper procedures to be followed
during machine repair.
Toggle Valve Assembly
The toggle valve raises and lowers the top center cover on the machine.
Pulling the toggle switch forward, raises the cover and pushing the toggle
switch back, lowers the cover.
This cover is only raised to service the machine. If the cover is opened either
with the switch or manually during machine operation and the OPERATING
MODE key switch is in the OFF position, the machine will stop.
Toggle Valve Location
