Installation Guide for Uplogix Local Managers 6
Prior to installation of any option slot card, ensure that the Local Manager is powered off.

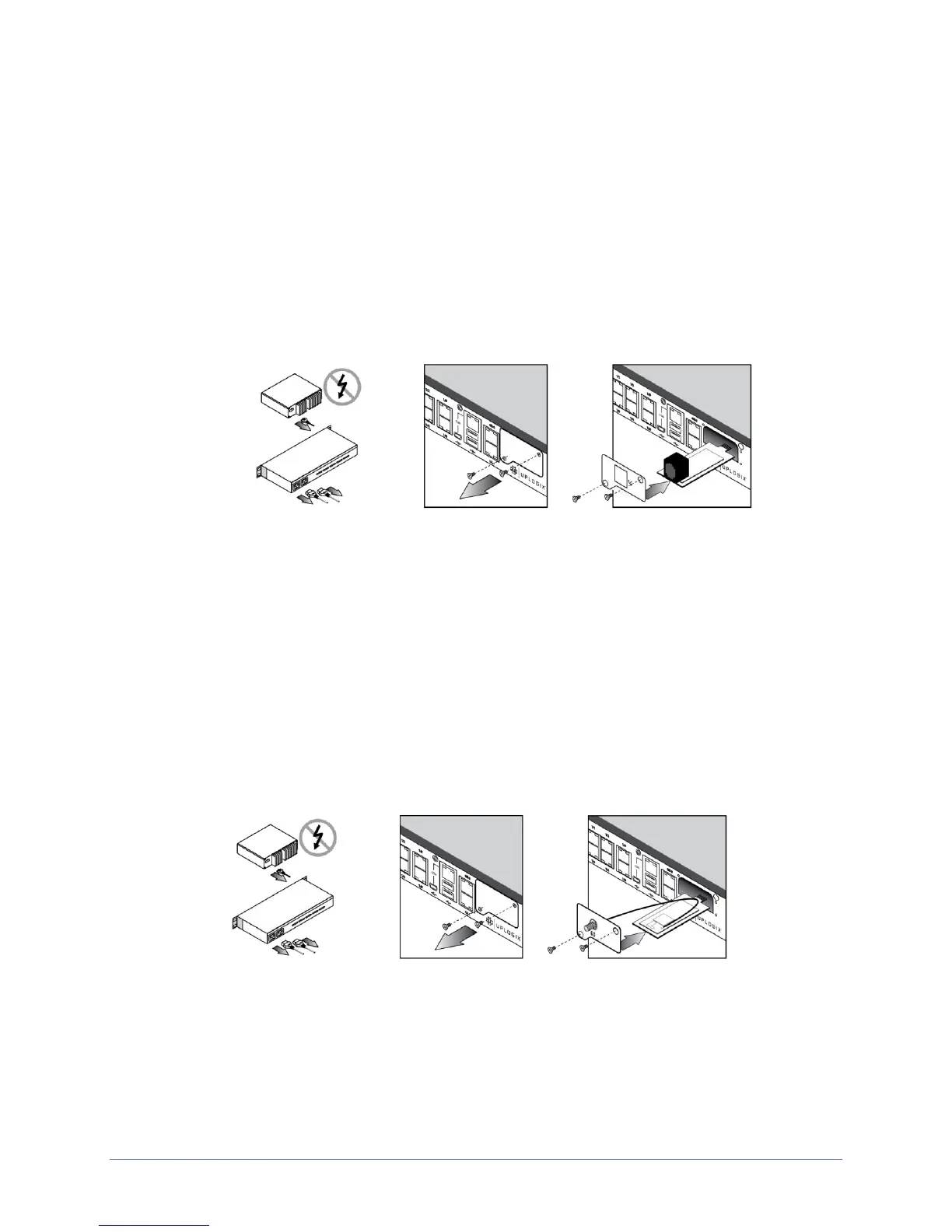

V.92 modem
The V.92 modem may already be installed in the option slot. Follow these steps if the V.92
modem is not already installed:
1. Power off the Local Manager.
2. Remove the option slot cover, align the modem carrier card with the internal rails, and
slide the modem into place.
3. Replace the screws.
4. Connect a POTS telephone line to the RJ-11 jack on the modem and power on the
Local Manager.
GPRS cellular modem
Follow these steps to install the GPRS cellular modem:
1. Power off the Local Manager.
2. Install an activated SIM card on the modem.
3. Remove the option slot cover, align the modem carrier card with the internal rails, and
slide the modem into place.
4. Feed wire into the option slot compartment, align modem cover plate with the option
slot screw holes, and replace the screws.
5. Install antenna.
6. Power on the Local Manager.
